Red Camera REDVOLT V 740 0059 | Batteries V Mount Li Ion

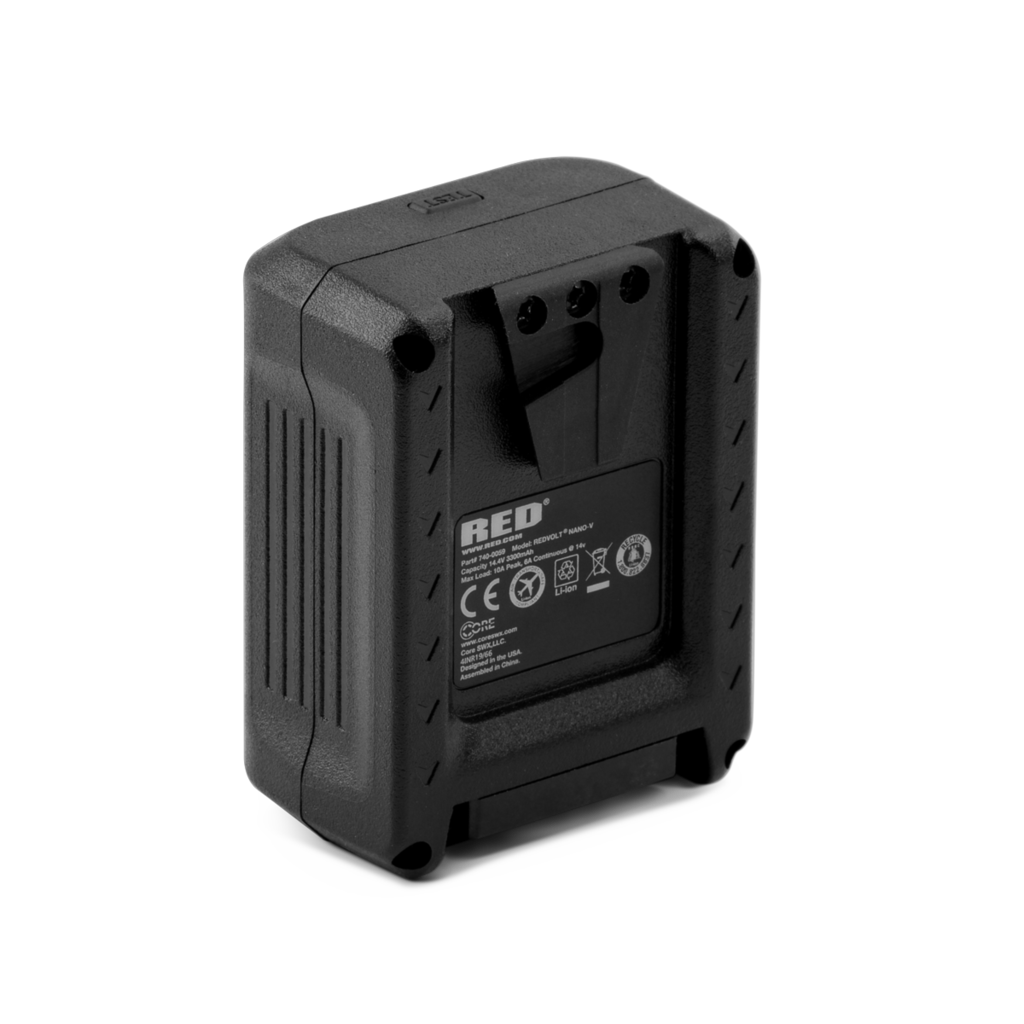

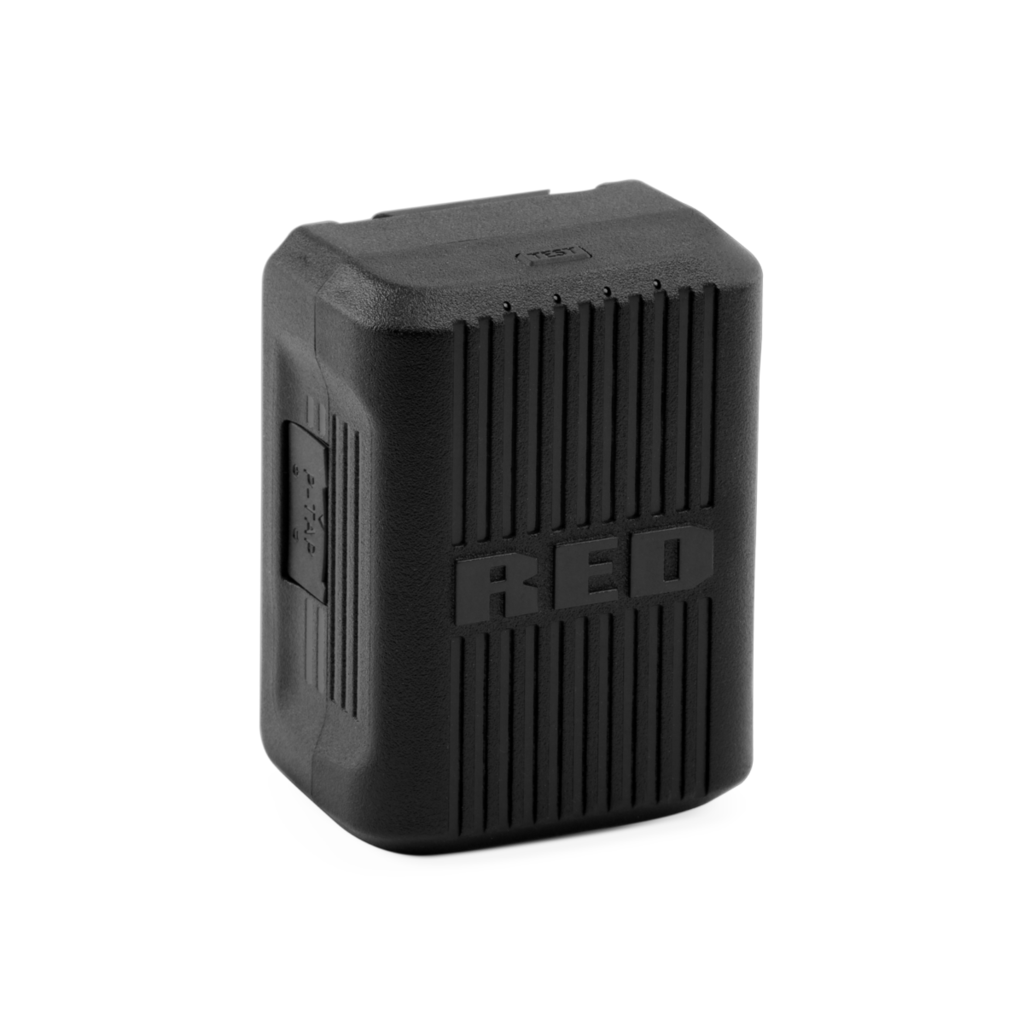

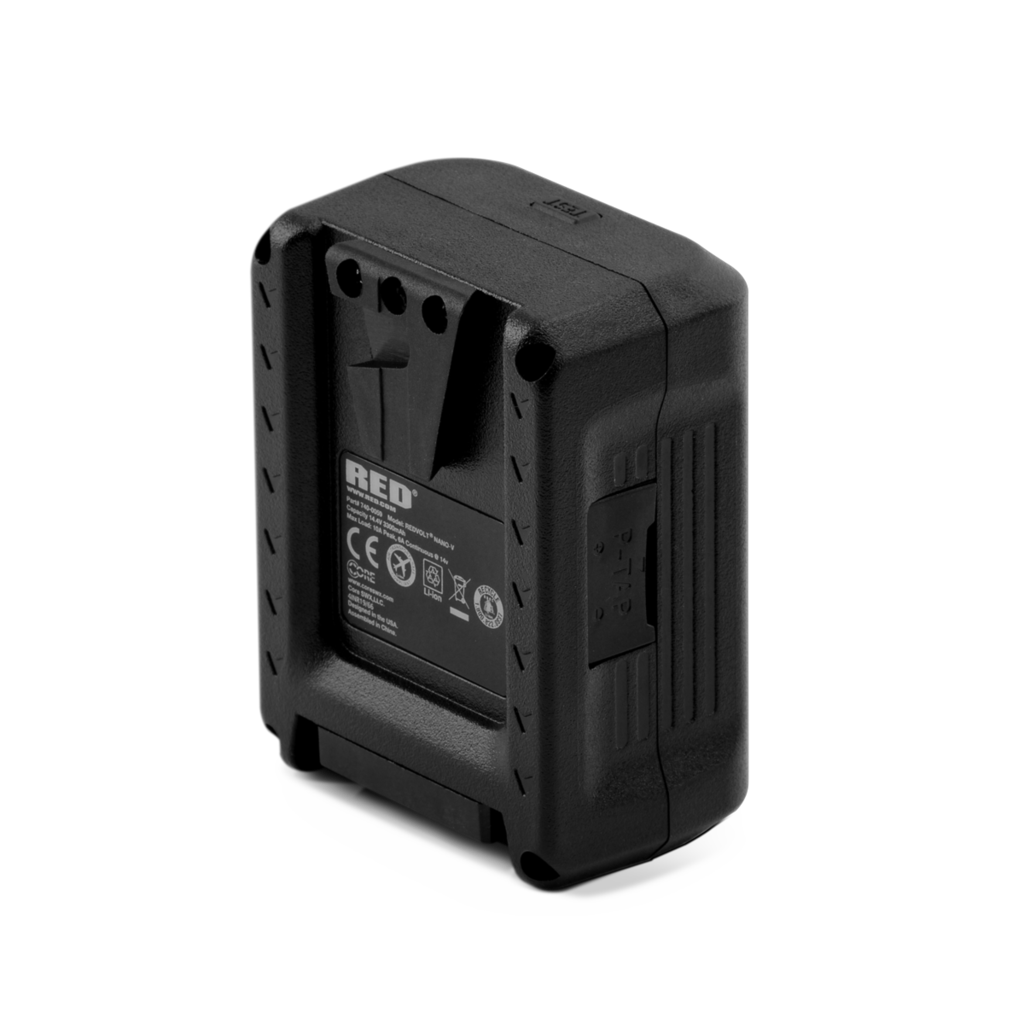

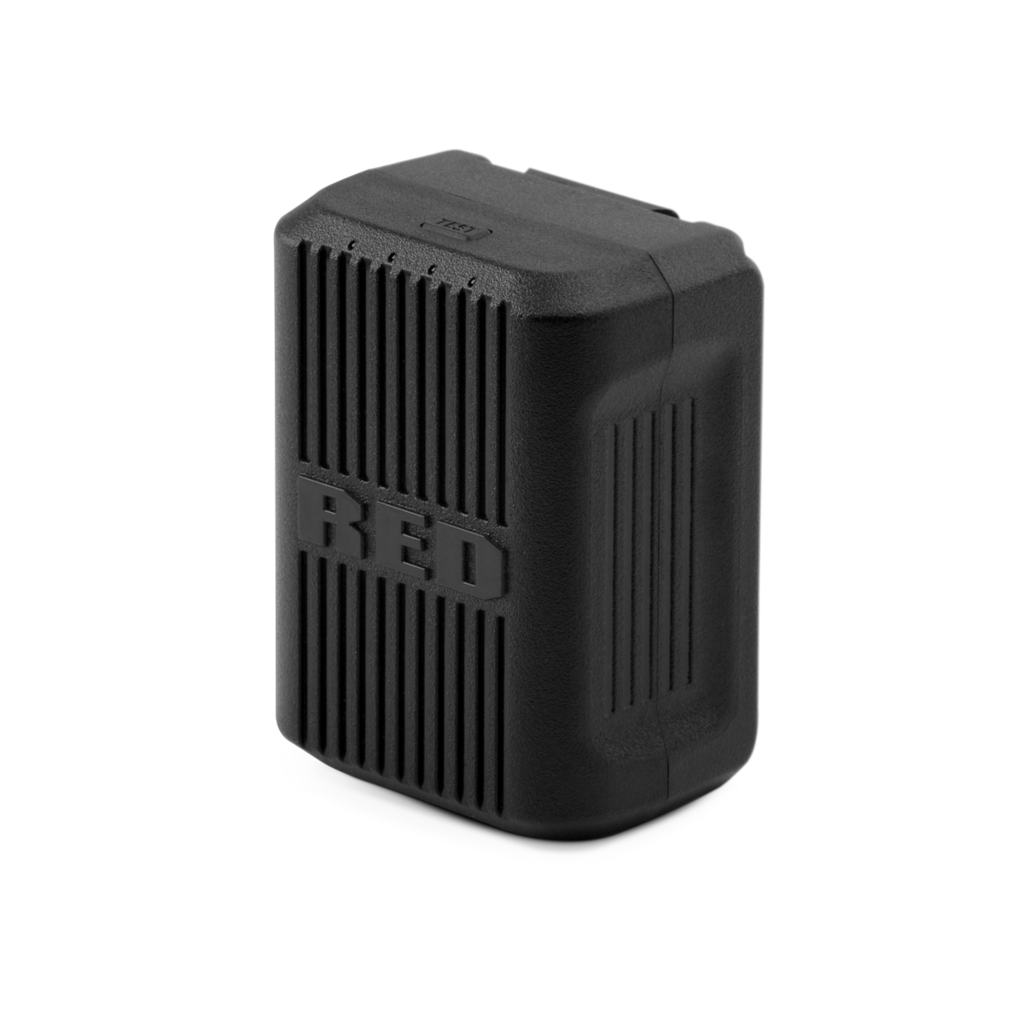

The REDVOLT® NANO-V battery is a small, lightweight power solution for the KOMODO-X?. Weighing in at only 0.63lbs (288g), it is ideal for gimbals, drones, and other setups where form factor and weight matter. The batteries dimensions (66 mm x 88 mm x 44 mm) ensure the camera retains completely flat surfaces on the top and sides, allowing users to attach various combinations of cages and plates, without issue.

Featuring a 49 Wh capacity and with a maximum output current of 6 amps, the battery can power the KOMODO-X and DSMC3? RED® Touch 7.0" LCD when you want to shoot in as light a configuration as possible.

Powers RED KOMODO-X 6K S35 Camera
49Wh Capacity, 6A Maximum Output
Compact Form Sit Flush on Camera
Lightweight Solution for Gimbals & More

Compatibility

RED KOMODO-X 6K S35 camera.
RED KOMODO 6K S35 camera.
Most cameras with a V-mount battery plate.

Compact Form

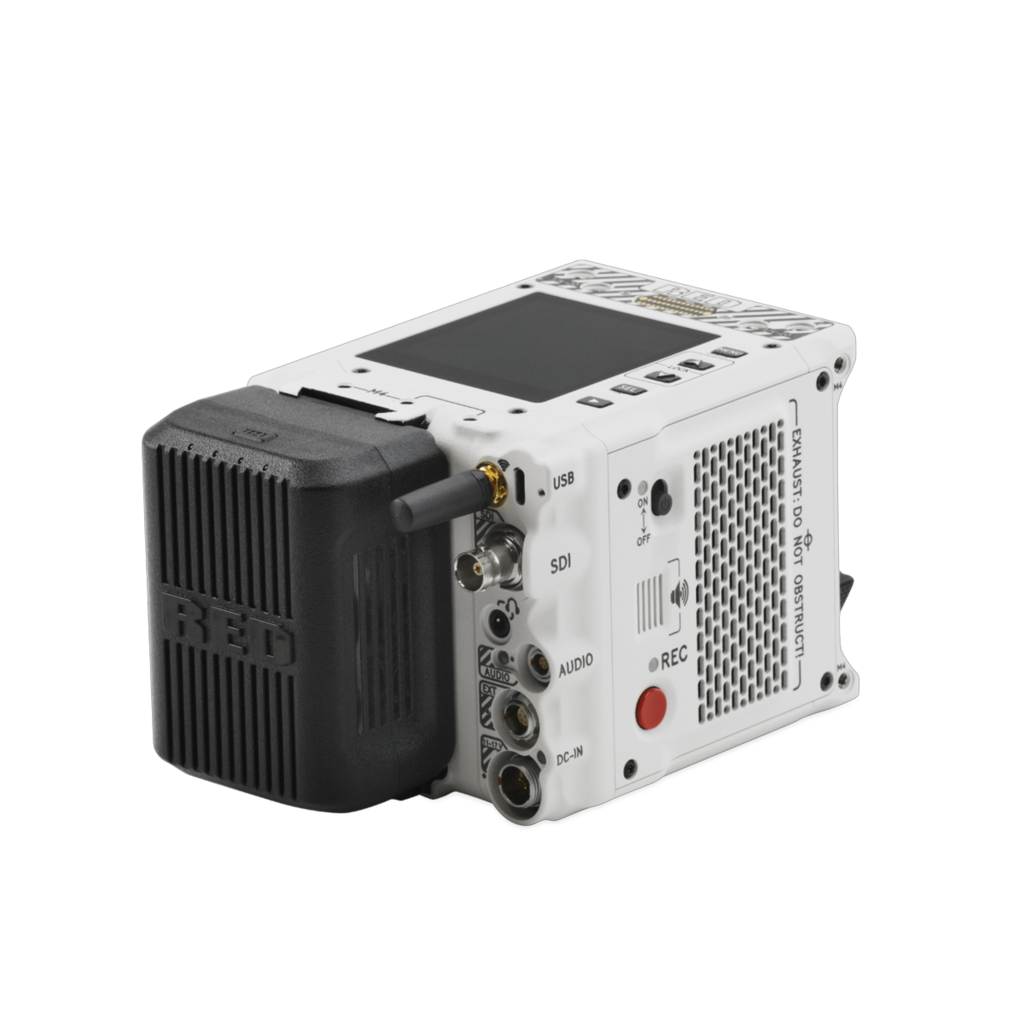

Compact design mounts directly onto the KOMODO-X/KOMODO's battery plate.
Sits flush with the KOMODO-X camera body to enable the use of various plates and cages.
Provides a lightweight solution for powering both the KOMODO-X and the Touch 7.0" monitor for short durations.

Mount / Series Type
REDVOLT
Chemistry
Lithium-Ion
Battery Capacity
49 Wh
Output Voltage
14.4 VDC
Maximum Load
6 A (Peak)
Operating Temperature
50 to 113°F / 10 to 45°C
Charging Temperature
32 to 113°F / 0 to 45°C
Discharging Temperature
68 to 122°F / 20 to 50°C
Environmental Protection
No
Dimensions (W x H x D)
3.5 x 2.6 x 1.7" / 88 x 66 x 44 mm
Weight
10.2 oz / 288 g
Packaging Info
Package Weight
0.82 lb
Box Dimensions (LxWxH)
6.2 x 4 x 3"
