AJA ColorBox HDR/SDR Color Converter

Built for broadcast applications, the AJA ColorBox HDR/SDR Color Converter is an SDR/HDR/WCG signal-supporting device capable of managing color-driven workflows for consistent conversion across live programs.
One 12G-SDI input delivers up to UHD 4K video to two 12G-SDI outputs or one HDMI 2.0 output for high-quality video.
The ColorBox can also support up to 16-bit TIFF images.
Outfitted with 3D LUT processing with support for 1D LUTs and 3x3 matrices, the ColorBox offers user-configurable color control using industry-standard file types.

Five processing pipeline modes, including two licensable upgrade options, are available for the ColorBox:
° AJA Color, Colorfront, NBCU LUTs, ORION-CONVERT, and BBC HLG LUT.
° Advanced setting control for the device can be achieved via the web user interface using the Gigabit Ethernet port.

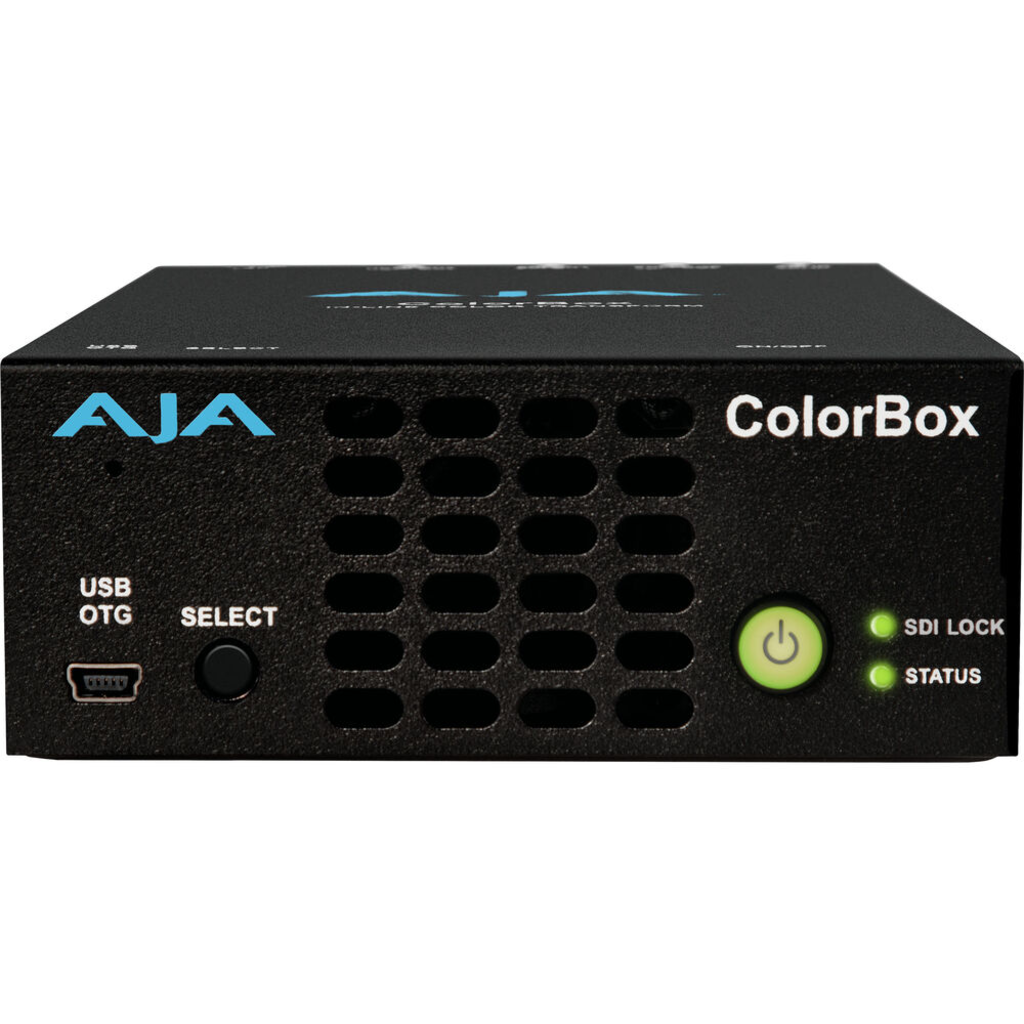

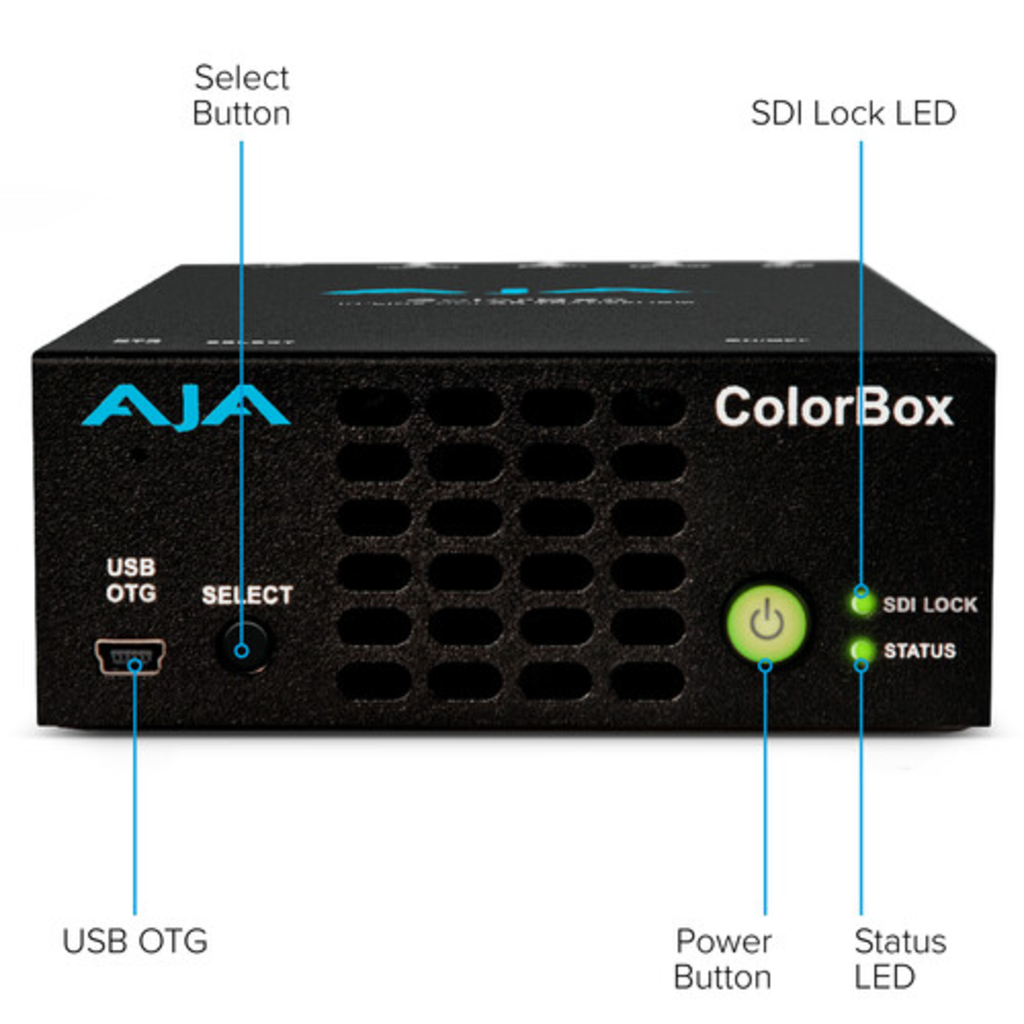

° A mini-USB port on the front panel can connect a third-party controller and configure the initial IP address of the device.
° Included with the ColorBox is an AC power adapter for integration into your preexisting broadcast configuration.

Features at a Glance
° Ultralow latency, less than half a video line
° Seven LUT nodes plus overlay: one 3D LUT processor, four 1D LUT processors, two 3x3 matric processors
° Supports industry-standard file types, no conversion is needed
° Five color processing pipelines: AJA color, Colorfront mode, NBCU LUTs, ORION-CONVERT mode (Licensed Upgrade), BBC HLG LUT mode (Licensed Upgrade)
° Video preview in web user interface for monitoring
° Nine built-in test patterns up to UHD 4K
° User text, input/output signal, and pipeline configuration in overlay output
° Onboard library for file management of 16 1D LUTs, 16 3D LUTs, 16 3x3 matrices, and 16 images
° Embedded SDI 16-channel and HDMI 8-channel pass-through
° Lightweight 1 RU unit with ultraquiet fan operation
° 4-pin mini-XLR DC power connector
° Select button on the front panel bypasses video processing
° Extensive API for third-party control integration
° Gigabit Ethernet port and embedded web server for remote control
° Configure IP address via mini-USB port and set up software for both Windows and macOS

* Note: To make the matrix operational, a power cable with a European/Italian plug is required

Colorimetry:
° BT.709
° BT.2020
Video Formats:
° DCI 4K
° UHD 4K
° DCI 2K
° 1080p
° 1080i
° 720p

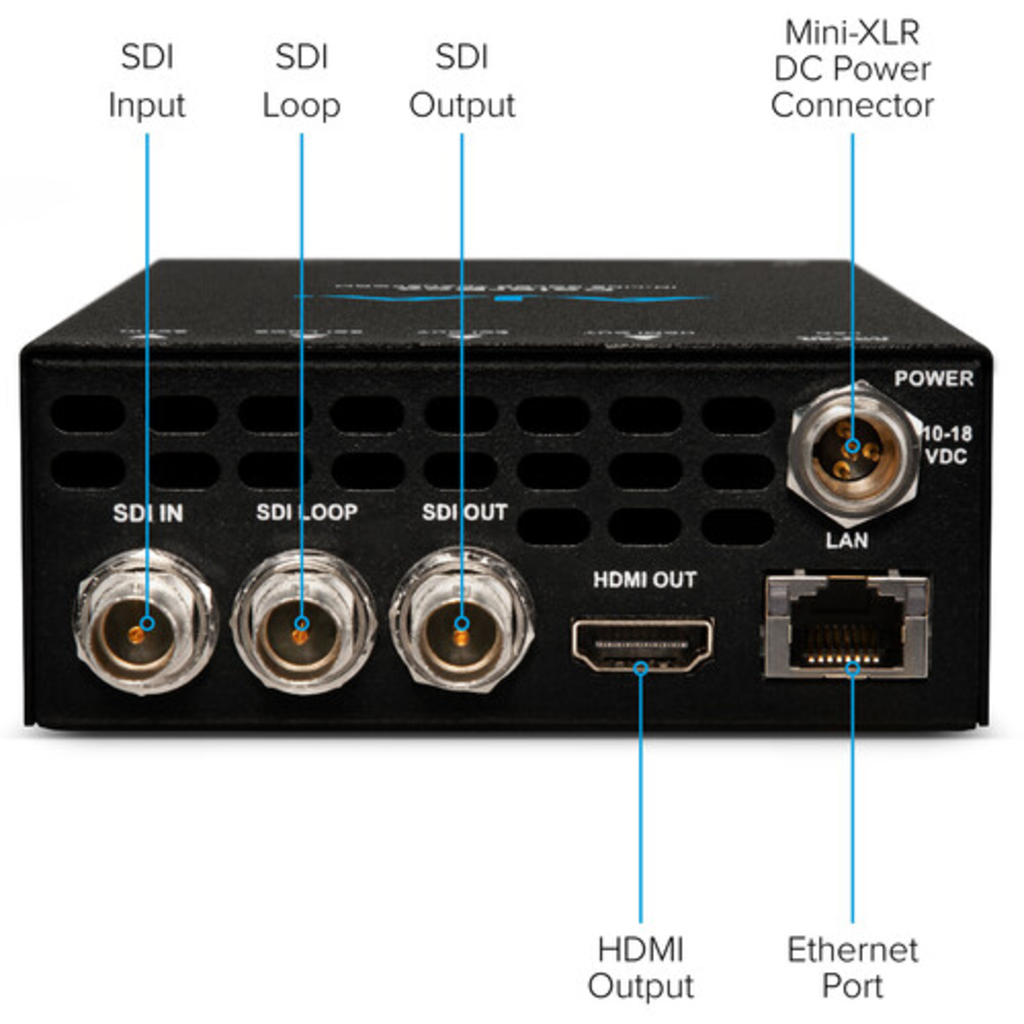

Video Input: 1 x BNC 12G-SDI
SDI Formats Supported
° 12G-SDI: DCI 4K up to 60, UHD 4K up to 60
° 6G-SDI: DCI 4K up to 30, UHD 4K up to 60
° 3G-SDI (Level A or B Dual-Link): DCI 2K up to 5, 2KPsF up to 25, 1080p up to 60, 1080PsF up to 30, 1080i up to 60, 720p up to 60
1.5G-SDI: DCI 2K up to 30, 2KPsF up to 25, 1080p up to 30, 1080PsF up to 30, 1080i up to 60, 720p up to 60
Video Outputs:
° 2 x BNC 12G-SDI
° 1 x HDMI 2.0 Type A
HDMI Format Support:
° UHD 4K
° 2K
° 1920 x 1080
Color Sampling:
° YCC 4:4:4/4:2:2, RGB 4:4:4 10/12-Bit (SDI)
° YCC 4:2:2, RGB 4:4:4 8/10/12-Bit (HDMI)
Latency: < 0.5 Line
Supported Image Formats: TIFF, PNG, JPEG
Audio Input: Embedded SDI 12-Bit, 16-Channel
Audio Output:
° Embedded SDI 24-Bit, 16-Channel
° Embedded HDMI 24-Bit, 8-Channel
Network Interface: 1 x RJ45 10/100/1000 Ethernet
USB Interface: 1 x Mini-USB IP
Power Input: 1 x 4-Pin Mini-XLR, 10 to 12 VDC
AC Adapter: 100 to 2400 VAC, 50/60 Hz, 60W
Operating Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: -40 to 140°F / -40 to 60°C
Operating Humidity: 10 to 90% (Non-Condensing)
Operating Altitude: < 10,000' / < 3,000 m
Dimensions: 7.54 x 4.1 x 1.66" / 191.6 x 104.1 x 42.1 mm
Weight: 1 lb / 0.5 kg

Packaging Info
Package Weight: 2.885 lb/1.31 kg
Box Dimensions: 10.5 x 10.1 x 3.9"/27 x 26 x 10 cm

Convertitore di colore AJA ColorBox HDR/SDR
Adattatore di alimentazione AC
