Bolin N2-220X

MFR  N2-220X

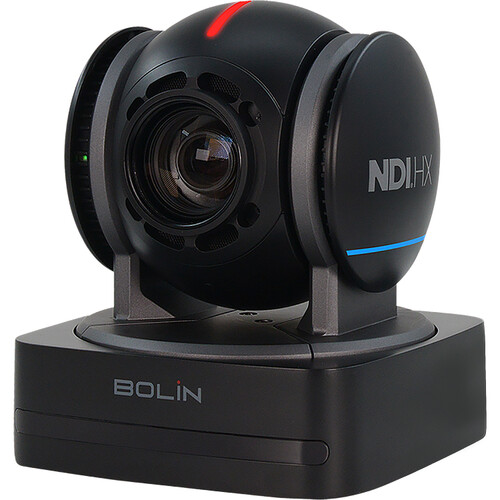

Bolin N2 NDI Indoor PTZ Camera FHD-20X-BK, 1/2.8" Sony CMOS, 1920x1080

- Output via NDI|HX3/USB/IP/HDMI/3G-SDI
- 3.5mm Mic/Line Audio Input
- Up to 1080p60 Output
- 20x Optical Zoom, 16x Digital Zoom
- 1/2.8" 2.13MP CMOS Sensor
- IP & Serial Control via VISCA, Pelco-P/D
- PoE Support, 55.8° Field of View
- H.264/H.265/AAC Compression Formats
- Durable Magnesium Alloy Housing

Capture professional HD video for your video conferencing, education, house of worship, or other video application with this black N2-220X NDI|HX3 PTZ Camera from Bolin Technology.
This remotely controllable PTZ camera features a gimbal-style housing, and it allows you to capture up to 1080p60 resolution video and output via NDI|HX3, HDMI, 3G-SDI, USB-C, or IP dual streaming via its Gigabit RJ45 Ethernet interface.
Additional features include a 20x optical zoom, an additional 16x digital zoom, a 55.8° angle of view, a ±170° panning range, a 90 to -30° tilting range, auto or manual focus, a wide dynamic range, and serial/IP control. It also features a 3.5mm mic/line audio input and a durable magnesium alloy housing.

High-Quality Full HD Imaging
The Bolin NDI|HX3 N2-220X PTZ camera is equipped with a 1/2.8" CMOS sensor to provide high-quality images in 1080p60 resolutions with 20x optical zoom.
The camera comes in a black color.

NDI Streaming
The camera supports NDI|HX3 and are fully compatible with NDI-enabled hardware and software.
It also supports RTSP and RTMP for online video and live streaming.

SRT Ready
The N2 can deliver high-quality, secure, low-latency video across the public Internet.
SRT optimizes streaming performance across unpredictable networks with secure streams and easy firewall traversal, bringing the best-quality live video over unstable networks.

Video Output
The N2 NDI|HX3 PTZ cameras deliver NDI IP streaming video to network and are fully compatible with NDI-enabled hardware and software, with local 3G-SDI, HDMI, video and USB streaming to computer software for conventional video production and cloud based video conferencing applications.

Video Settings
Image parameter adjustments include exposure, focus, iris, shutter speed, white balance, gamma, wide dynamic range, E-Flip/mirror, and more, with configurable video settings.

Smart Focus and Exposure
The camera is built with Bolin's latest AI-powered face analytical engine, which enables precise smart focus and smart exposure to bring a greater level of user experience and effective image quality improvement in a complex user environment.

Audio
All 3G-SDI, HDMI, USB, and IP video streaming signals have high-quality audio streaming embedded with support for mic-in / line-in audio input via the USB-A port with an adapter.

PTZ Movement
The N2-220X features extremely quiet and smooth pan/tilt operation and enhanced adaptive, variable, and super-slow speed control for accurate and effective operation.
With the Picture Profile Preset, image parameter settings are restored with presets and quick access.

Remote Control and Setup
The camera supports serial RS-232/RS-422 control and VISCA-over-IP control over a network.
Remotely control pan, tilt, and zoom movements with full access to the camera's image parameter settings via a keyboard controller or IR controller.

Ease of Installation and Use
Use optional Bolin mounting accessories and connect one network cable with a PoE+ enabled Ethernet network/PoE device, or use the included RJ45 port serial cable adapter to make installation and control easy.
Connect one network cable from the camera to any Gigabit Ethernet network/PoE device to access an existing IP network, and connect an HDMI/SDI cable to baseband video workflow. Standard mounting and ceiling mounting are achieved with the E-Flip function.
