GoStream Duet 8 ISO - OseeEAN  0769293552312

Video Switchers > HD Video Switcher
EAN:0769293552312
€ 899,00 + VAT
€ 1.096,78 VAT Included
Adcom - Osee
New
Availability: 2 units

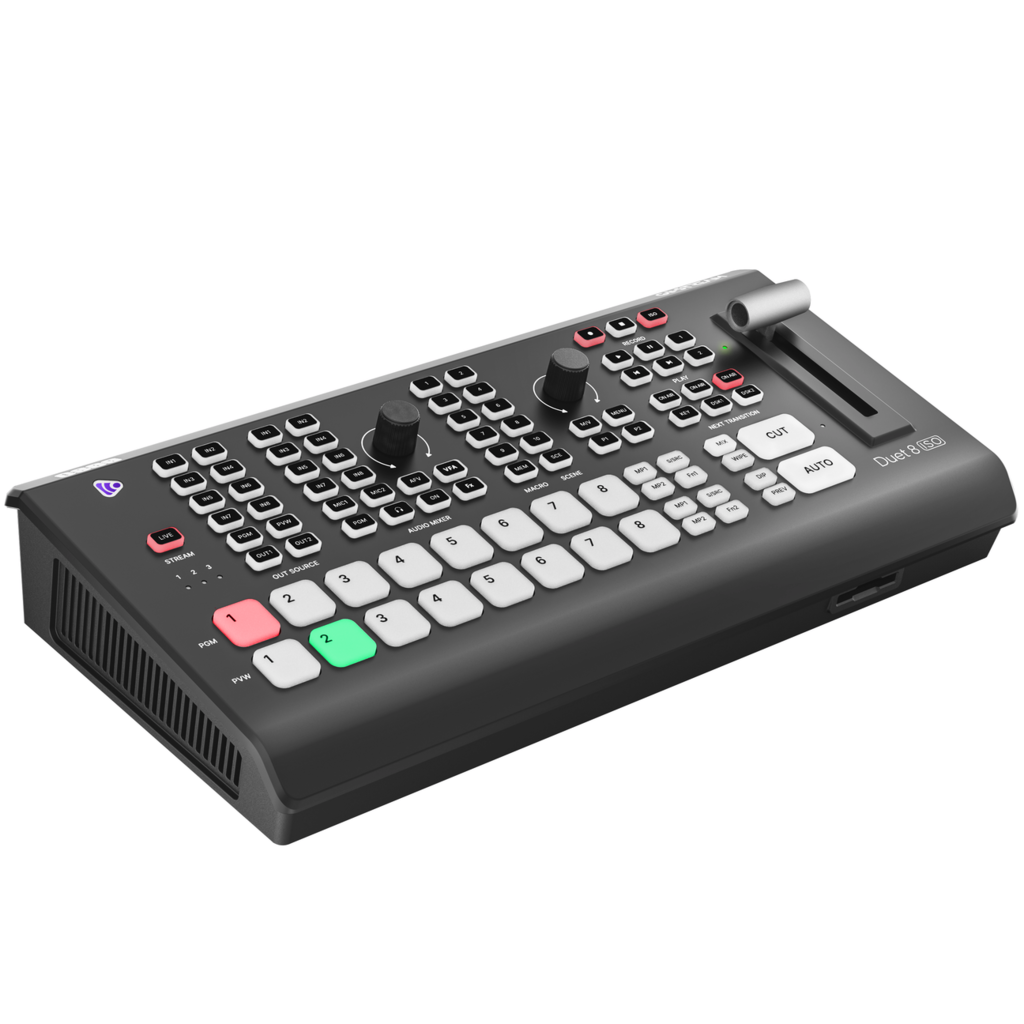

Osee GoStream Duet 8 ISO 8-Channel Video Switcher: HDMI/SDI/NDI/RTMP/SRT, 2 XLR Audio, SuperSource, 9 Layouts ISO Recorder

- Fantastically Flexible 8 Inputs: Signals from 3G SDI, 4K HDMI, USB 3.0 Webcams, NDI HX, SD/SSD Playback, SRT and RTMP, web browser input and PNG images are all supported.
IP camera, PTZ, webcam, camcorder, mirrorless, SDI camera, and remote guest connection are directly connected without external converters.
- Channels 1-8: User assignable with HDMI 4K or 3G-SDI. (From Firmware 2.0 up all SDI and HDMI inputs can be assigned on each channel)
- Channels 5-6: NDI HX/SRT, RTMP, video playback.
- Channels 7-8: NDI HX/SRT, RTMP, USB webcam.

PGM and 8-Channel ISO Recorders: The GoStream can record all video inputs, program output, and audio

The recorders support MP4 H.264 high-quality recording and include 2 built-in MP4 video players for H.264 video file playback.

Professional Audio: Two XLR microphones and 3.5mm inputs deliver professional-grade sound in podcasting.

Wireless, condenser, and dynamic microphones can be used.
The XLR Integrates a 48V phantom power supply and a studio-grade preamp that supports up to 75 dB of ultra-low-noise gain and amplifies insensitive mics.

Next-level layout and graphics overlay

Super Source with four fully configurable windows, background or foreground, used for church video, podcast, online meeting, remote guest, panel discussion, and TV-like professional live production.
Two downstream keyers for logos and lower-thirds overlays. One upstream keyer for green screen keying, PIP, and Pattern.
The web browser supports fantastic dynamic overlays and real-time maps.

Excellent experience Auto switching

Stream Deck and Companion support a hard panel with PVW / PGM bus / T-Bar / Macros / Scenes, and PC control software are ready for you to manage the events.
A user group provides an open community for everyone to learn, share, and collaborate.

Control software for both Mac and Windows OS (free download from Osee site) and free Elgato Stream Deck Plugin from Elgato market place

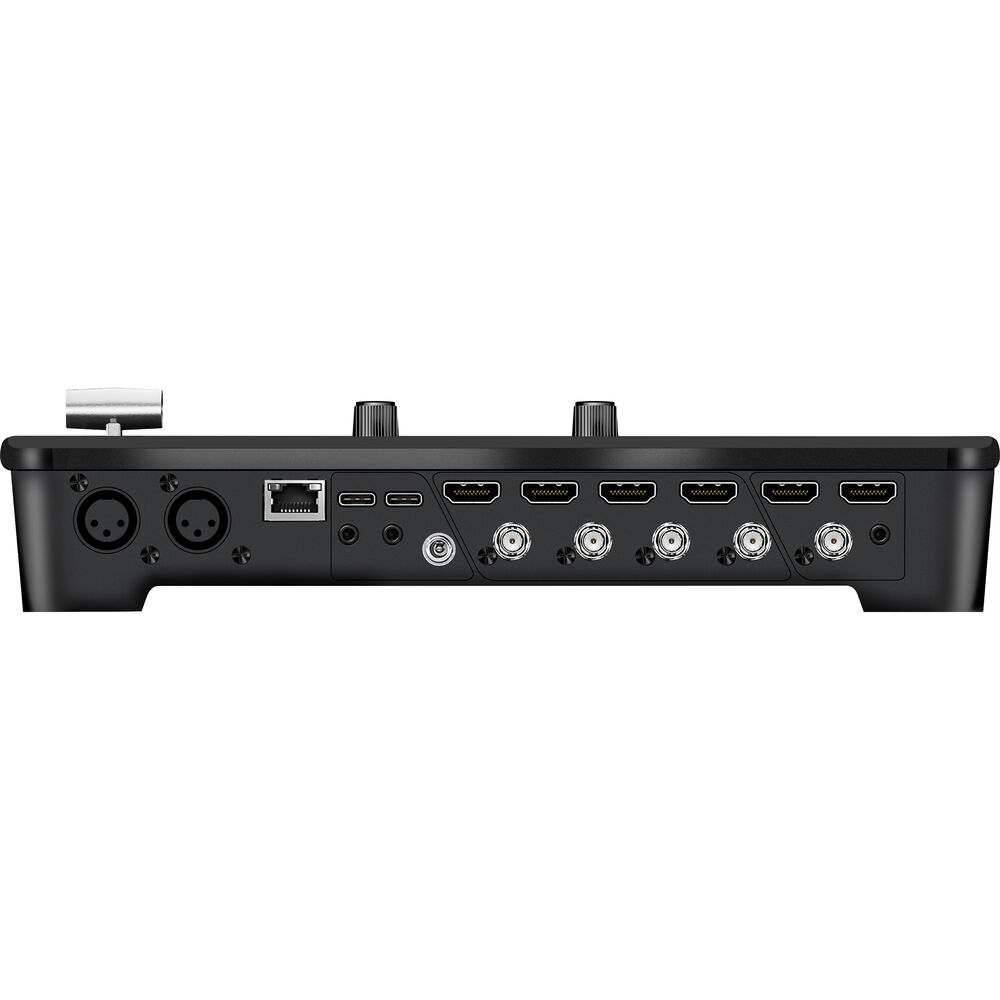

Connections
8 Video Input Channels:

- Channels 1-8: Auto detect HDMI 4K/3G-SDI. (From Firmware 2.0 up all SDI and HDMI inputs can be assigned on each channel)
- Channels 5-6: NDI HX/SRT, RTMP, video playback.
- Channels 7-8: NDI HX/SRT, RTMP, USB webcam.
4 Video Outputs:
HDMI OUT 1-2, SDI 1: Selected from all video input channels, multiview, PVW or PGM.
USB 3.0: UVC output up to 1080p60.
Audio Inputs/Outputs:
2 XLR or 2 3.5mm Mic for MIC, Line, Dynamic, Condenser.
PHONE: 3.5mm Jack, selected audio monitoring.

Controls
Internal menu, PC or MAC software, Stream Deck via companion plugin.
Video follows audio switching.
Direct Streaming: via Ethernet Simultaneous streaming on 3 platforms, RTMP, up to 10Mb/s.
Audio Mixer: On/Off/AFV control, fader gain, panning, delay, preamp, high-pass filter, De-esser, Noise Gate, Compressor, Limiter, Equalizer control, Audio level display.
Recording and Playback: Isolated (ISO) and PGM recording and 2 players to play high quality video up to 70Mb/s while streaming. Supports internal SD card slot or external USB 3.0 SSD.
HDMI Input Format:
720p24(23.98), 720p25, 720p30(29.97), 720p50, 720p60(59.94)
1080i50, 1080i60(59.94)
1080p24(23.98), 1080p25, 1080p30(29.97), 1080p50, 1080p60(59.94)
2160p24(23.98), 2160p25, 2160p30(29.97), 2160p50, 2160p60(59.94)
Input Format SDI:
720p24(23.98), 720p25, 720p30(29.97), 720p50, 720p60(59.94)
1080i50, 1080i60(59.94)
1080p24(23.98), 1080p25, 1080p30(29.97), 1080p50, 1080p60(59.94)
USB Input Format: YUV422: 1080p24(23.98), 1080p25, 1080p30(29.97), 1080p50, 1080p60(59.94)
HDMI/SDI Output Format: 1080p24(23.98), 1080p25, 1080p30(29.97), 1080p50, 1080p60(59.94)
USB Output Format: YUYV, NV12: 1080p30, MJPG: 1080P60, 1080p50
Streaming Output Format: 1080p24(23.98), 1080p25, 1080p30(29.97), 1080p50, 1080p60(59.94)
Video Layout 8: 1 Graphics (Background/Foreground) + 4 SuperSource windows + 1 UpStream Key (Chroma, PIP, Luma, Pattern) + 2 DSK
MP (Media Player): 2 MediaPlayers support polling of 32 still images. Support web browser input for LOGO, lower third or other animated sources with dynamic alpha channel.

Physical:
Power: 12V 3A
Operating Temperature: 5°C to 40°C (41°F - 104°F)
Dimensions: 279.3 * 142.9 * 57.4mm
Weight: 870g
1x GoStream Duet 8 ISO
1x Alimentatore
