Presonus StudioLive AR16C | Digital mixer | Audio Mixer

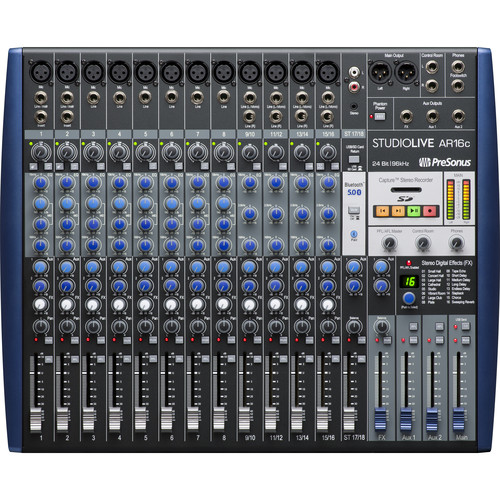

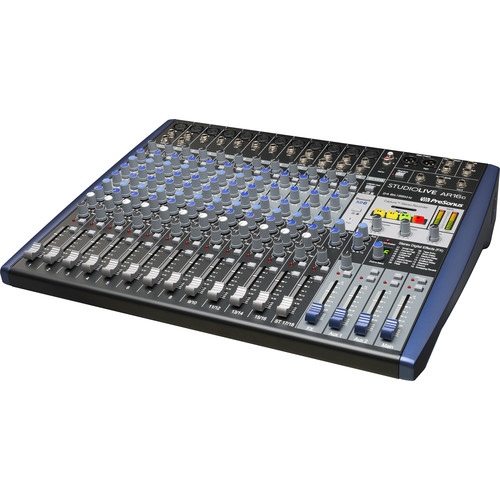

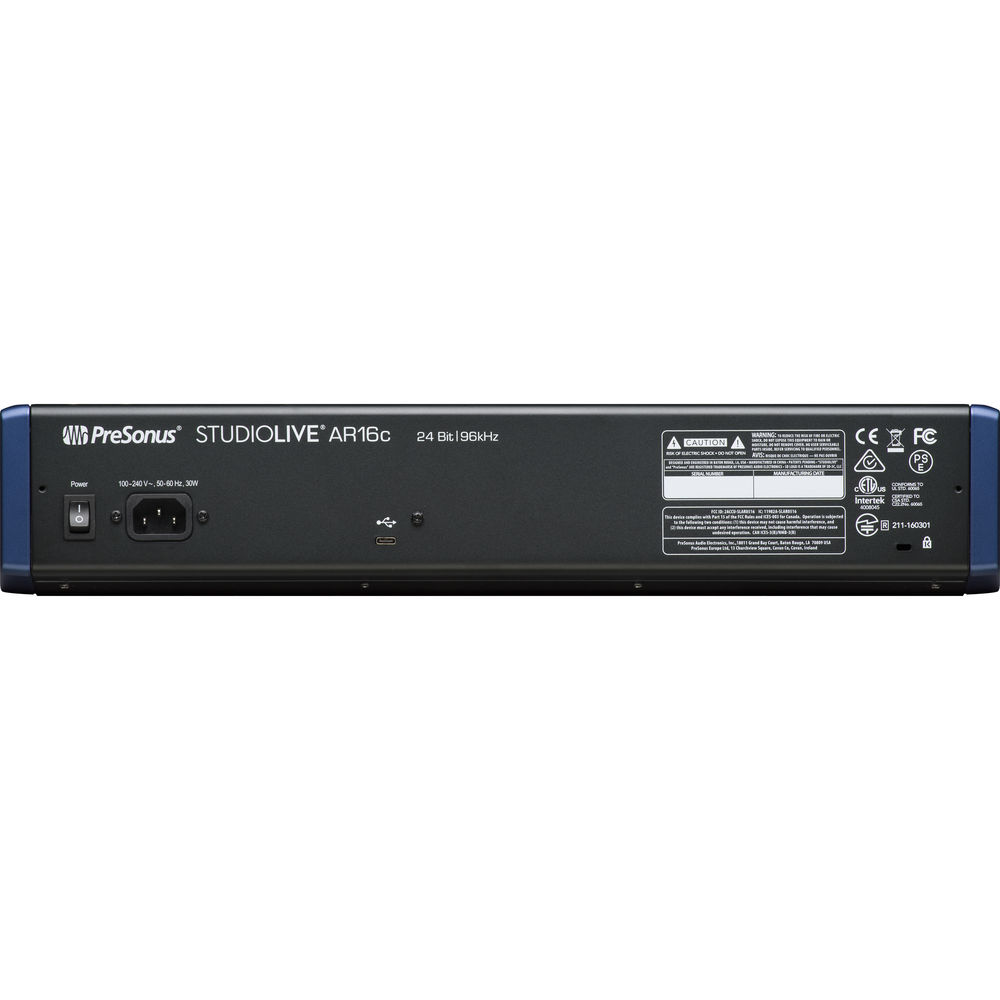

PreSonus StudioLive AR16c | 18-Channel USB-C Digital Mixer for Performance and Recording

- 8 Mono & 4 Stereo Channels
- Stereo Super Channel
- 18x4 24-Bit / 96 kHz USB Audio Interface
- Built-In 2x2 SD Recorder
- 12 XMAX-L Microphone Preamps
- Two Instrument Inputs
- 3-Band EQ & Wireless Bluetooth Streaming
- Capture & Studio One Software Included
- Studio Magic Plug-In Suite Included
- Rackmount Kit Included

Building upon the success of the original AR16-USB, the PreSonus StudioLive AR16c is an 18-channel hybrid performance and recording mixer well suited for a variety of applications including mixing and recording live shows, studio productions, band rehearsals, podcasts, and more.
Updates to to the AR16c include a USB-C connection, Bluetooth 5.0, and a refresh of the mixer's layout and design.
The mixer is packed with analog connections and digital tools that are powerful, yet easy to learn and use. The mixer features Class-A preamps and 3-band EQ.

The StudioLive AR16c offers recording with or without a computer.
Multitrack record and fly in backing tracks with its 24-bit / 96 kHz, USB-C audio interface or record and playback a stereo mix with the integrated SD digital recorder.
Additionally, the mixer features a Super Channel, which allows you to connect four stereo analog and digital sources at once, enabling the mixer to be used with high-tech devices including smartphones and tablets for wireless Bluetooth streaming.
The StudioLive AR16c ships with a power cord, USB-C cable, a rackmount kit, Studio One 3 Artist production software, and Capture recording software.

Mixer
Number of Analog Input Channels: 18 (12 Mono / 5 Stereo)
Number of Mic Preamps: 12
Analog Output Channels:
- 1x Stereo Master Output
- 1x Stereo Control Room/Monitor Output
- 2x Mono Bus/Subgroup Output
- 1x Mono FX Send Output
- 1x Stereo Headphone Output
Mix Routing:
- 1x Stereo Main Mix
- 2x Mono Aux Send
- 1x FX Send
Faders & Level Adjustment: 1x 2.4" / 60 mm Channel Fader

Signal Processing
Gain/Trim Range:
- 1/4" Hi-Z Input: 50 dB to +1 dB
- 1/4" Line Input: -20 dB to +30 dB
- 1/4" Stereo Line Input: -15 dB to +25 dB
- Line/Mic Input: 0 dB to +50 dB
- Stereo Input: +5 dB to +45 dB
EQ: 3-Band Semi-Parametric
EQ Parameters:
Mono Channels:
High: ±15 dB at 12 kHz (Shelving)
Mid: ±15 dB at 140 Hz to 3.5 kHz, 0.55 Q (Semi-Parametric)
Low: ±15 dB at 80 Hz (Shelving)
Stereo Channels:
High: ±15 dB at 12 kHz (Shelving)
Mid: ±15 dB at 2.5 kHz, 0.55 Q (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)
Graphic EQ: No
Filters: High-Pass: 100 Hz, 18 dB/Octave
Built-In Effects: Yes

Digital Audio
Sample Rates:
- AD/DA Conversion: 44.1 / 48 / 88.2 / 96 kHz
- Stereo Record: 44.1 kHz
Bit Depth:-Bit

Connectivity
Analog Inputs:
- 1/4" TRS Balanced Line Input
- 1/4" TS Unbalanced Hi-Z Input
- XLR 3-Pin Mic Input
Analog Outputs:
- 1/4" TRS Headphone Output
- XLR 3-Pin Balanced Main Output
- 1/4" TRS Balanced Control Room Output
- 1/4" TRS Balanced Monitor Output
- 1/4" TRS Balanced FX Output
Phantom Power: +48 V (Applied to All Inputs)
USB I/O: 1x USB-C 2.0 (Host Connection)
Other I/O: 1x 1/4" Footswitch Input
Wireless: Bluetooth 5.0

Recording
Media Support: SD, SDHC
Max Media Storage Capacity:
- SD: 2 GB
- SDHC: 32 GB
File Format Support:
- Record: WAV
- Playback: MP3, WAV

Compatibility
OS Compatibility: macOS 10.11 or Later / Windows 7 or Later
RAM Requirements: 4 GB, 8 GB Recommended

Power
AC Input Power: 90 to 240 VAC, 50 / 60 Hz

Physical
Rack Mountable: Yes
Dimensions: 3.7 x 20 x 15.4" / 9.4 x 50.8 x 39.1 cm

1x StudioLive AR16c
1x Cavo di alimentazione
1x Cavo USB
1x Kit di montaggio a rack
1x Software di registrazione Capture
1x Studio One 3 (Software di produzione Artist)
1x Suite di plug-in Studio Magic (Download)

StudioLive AR16C - PresonusEAN 673454008597
