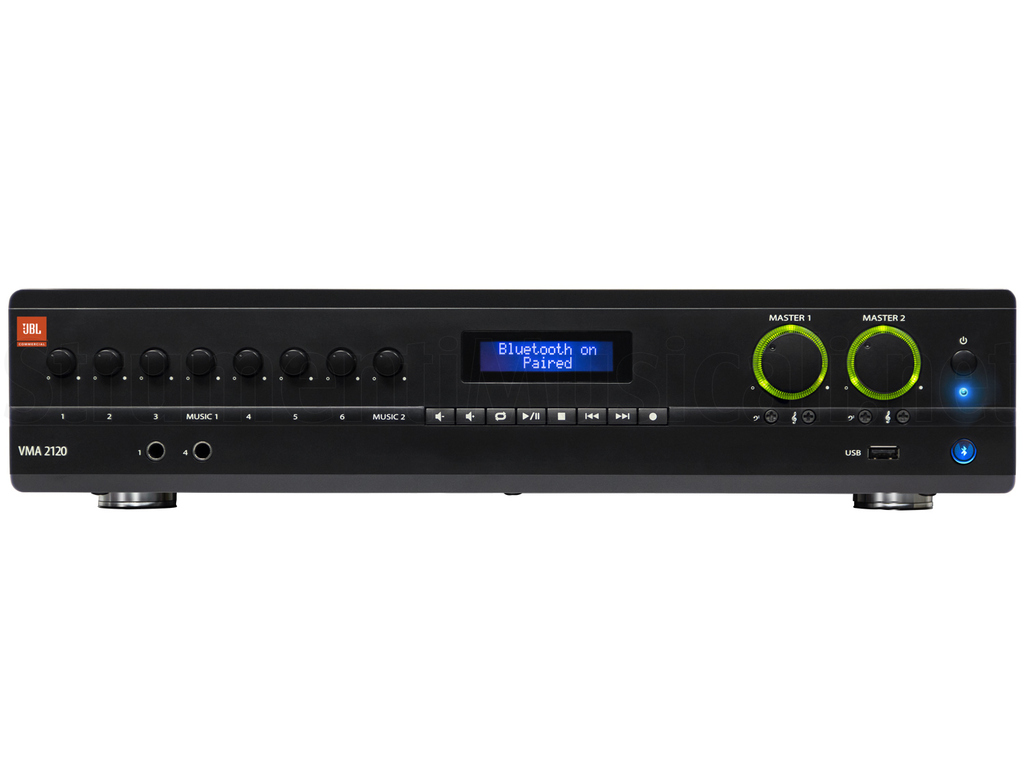

JBL VMA2120 | Amplified Audio Mixer | Audio Mixer

The JBL VMA2120 is a Commercial Series Bluetooth-enabled mixer/amplifier designed to provide flexible multi-source mixing and amplification for installation in restaurants, educational institutions, fitness centers, and retail stores. It features an 8-in/2-out mixer and 120W of output power. It can be installed in a standard 19" equipment rack with the supplied rackmount kit or set on a surface such as a desk or ledge.

Stream music wirelessly via Bluetooth or connect a USB drive to the front-panel USB Type-A port. Route other sources via Euroblock, RCA, and 1/4" input jacks. The integrated mixer offers level controls as well as bass and treble for each channel. Routing to the Euroblock outputs is configurable. The VMA2120 supports voice-activated ducking and priority muting. The front-panel controls and display make operation easy, and remote volume control is possible via a JBL CSR-V module and a standard Ethernet cable (both available separately).

° Suitable for commercial and industrial use

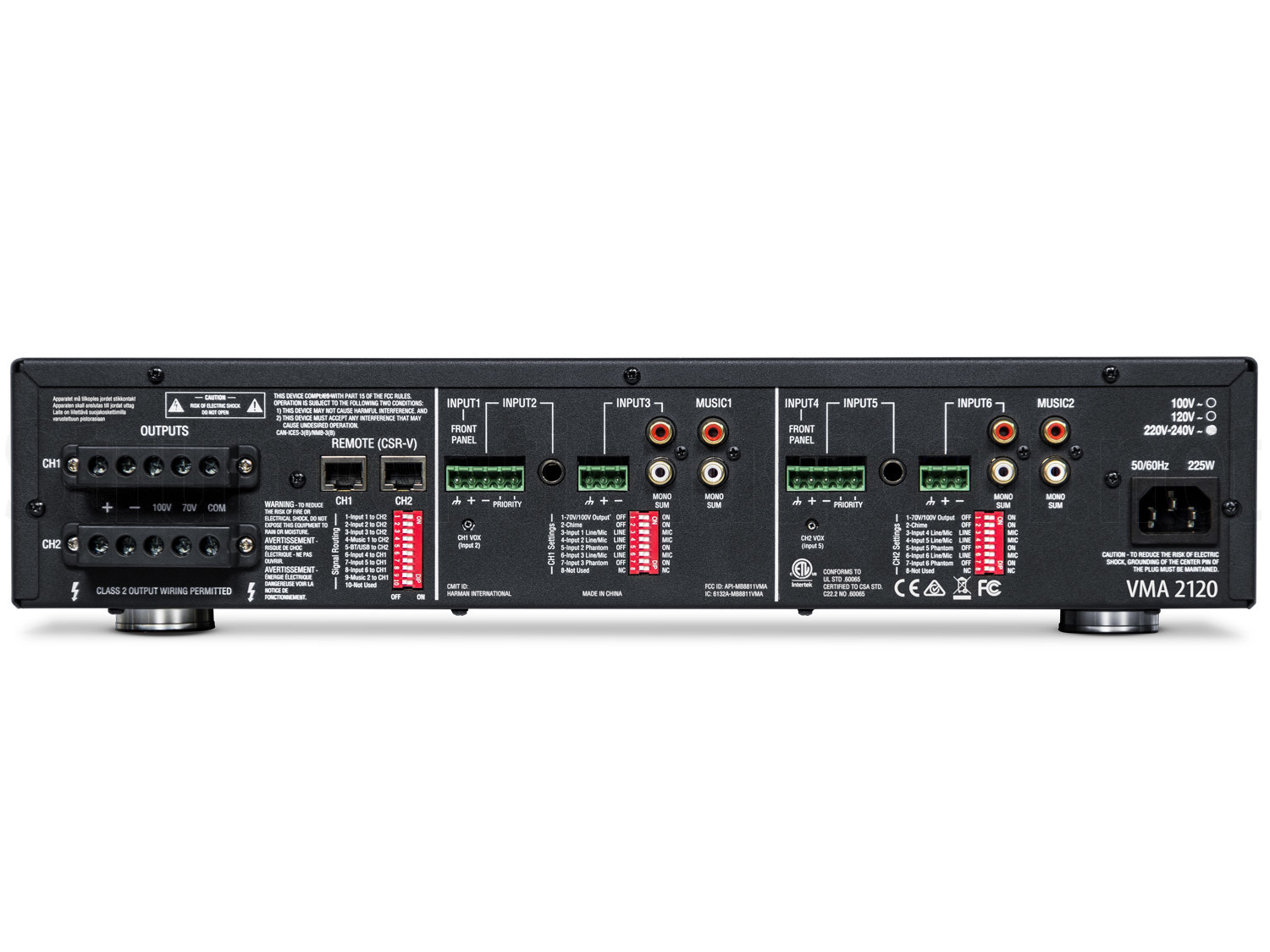

° Euroblock, RCA, and 1/4" TRS input connectors
° Independent bass and treble controls for each output channel
° Voice-activated ducking during announcements
° Remote volume control capability using optional JBL CSR-V module and Cat5e cable with RJ45 connectors
° Priority muting using PTT switch closure
° Configurable output routing
° Barrier block output connections to drive 8 Ohms, 70V or 100V speaker systems
° Media player capable of playing MP3 files from a Bluetooth device or USB drive

JBL VMA2120 Specs
Output Power 120 W (per channel into 4 Ohms or 8 Ohms, 1 kHz, =0.5% THD)
Insertion Loss 70 V and 100 V Outputs: 1 dB maximum
Input Channels 8
Output Channels 2
Tone Controls Bass and Treble non-detented potentiometers on each channel
Bass: ±14 dB @ 50 Hz
Treble: ±14 dB @ 10 kHz
Input Sensitivity To obtain full rated power (load of 8 Ohms)
Mic Input: 5.5 mVrms
Line Input: 1.3 Vrms
RCA Input (Stereo In): 130 mVrms

Frequency Response Measured at 2.83 Vrms into rated load impedance at any output
&emsp,4/8 Ohms Output: 20 Hz to 20 kHz, ±2 dB
&emsp,70 V/100 V Outputs: 80 Hz to 15 kHz ±3 dB
Total Harmonic Distortion (THD) Measured at 2.83 Vrms into rated load impedance at any output
Power Amp Output: <0.5%, 20 Hz to 20 kHz
Signal-to-Noise Ratio >76 dB (reference rated power, mixer levels @ minimum, master volume @ maximum A-weighted)

Input Impedance Nominal
&emsp,Mic: 400 Ohms
&emsp,Line: 20 kOhms (balanced)
&emsp,RCA: 50 kOhms
Phantom Power 27 VDC
Crosstalk -70 dB (reference rated power, volume at mid position, 1 kHz)
Nominal Input Voltages Nominal AC Line Voltages: 100, 120, 220, 220 to 240 VAC, 50/60 Hz
Minimum Load Impedance Low Impedance Output: 4 Ohms
&emsp,70 V Output: 40 Ohms
&emsp,100 V Output: 80 Ohms

General
Operating Temperature 32 to 95°F / 0 to 35°C
Humidity 95% RH (non-condensing)
Storage Temperature -4 to 185°F / -20 to 85°C
Dimensions (W x D x H) 17 x 16.3 x 3.5" / 432 x 415 x 88 mm
Weight 29.3 lb / 13.3 kg

Packaging Info
Package Weight: 35.0 lb
Box Dimensions (LxWxH): 21.0 x 20.5 x 6.5"
