GSM4230PX-100EUS Netgear 24 Port L3 Managed Network Switch - M4250-26G4XF-PoE + - 6315524.
Switching designed for 1G AV over IP with PoE +, Ultra90 PoE ++ and rear ports ensuring clean integration into AV racks. The M4250 switches are preconfigured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio, Dante, Q-SYS and AES67 profiles are available. For video, the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as mixed audio / video / control profiles. When using multiple switches, NETGEAR IGMP Plus offers automation for simple connection.
Features:
PoE + ports for multi-switch audio or single-switch video implementations
Fanless mode possible with maximum ambient temperature of 25 ° C and PoE loading
Acoustic noise in silent mode from 25dB to 25 ° C when all doors are in operation
Rack mount 1U 400mm deep with black display panel in front and all ports in the rear
Reverse mounting possible with doors at the front including flush mounting
Universal mounting options outside the rack with M5 bottom and M10 front threaded holes
Pre-configured for audio and video over IP

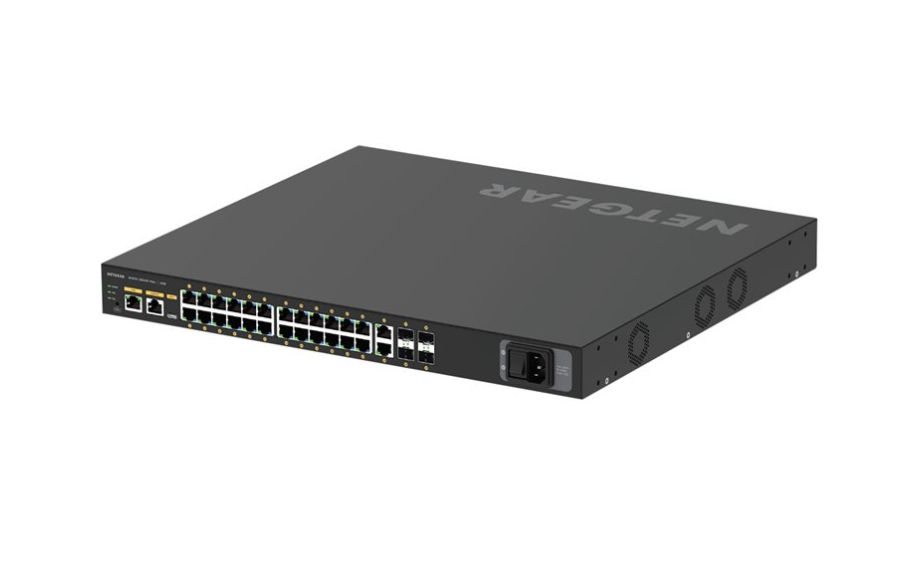

Product Description: NETGEAR AV Line M4250-26G4XF-PoE + - switch - 24 ports - managed - rack mountable
Device type: Switch - 24 ports - L3 - managed
Cladding Type Side-to-Side Airflow Rack-mountable 1U
subtype Gigabit Ethernet
24 x 10/100/1000 (PoE +) + 2 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP + ports
Power Over Ethernet (PoE) PoE +
PoE budget 480 W
Performance Switching capacity: 132 Gbps ¦ Throughput firewall (64-byte packet): 98.21 Mpps ¦ 1 Gbps fiber latency (64-byte packet): 1.13 µs ¦ 1 Gbps fiber latency (512-byte packet): 1,123 µs ¦ Fiber 1 latency Gbps (1024 byte packets): 1,119 µs ¦ 1 Gbps fiber latency (1518 byte packets): 1,120 µs ¦ 1 Gbps copper latency (512 byte packets): 2.28 µs ¦ 1 Gbps copper latency (1024 byte packets): 2,282 µs ¦ 1 Gbps copper latency (1518 byte packets): 2.27 µs ¦ 1 Gbps copper latency (64 byte packets): 2,288 µs ¦ 10 Gbps fiber latency (64 byte packets): 0.834 µs ¦ 10 Gbps fiber latency ( 512-byte packets): 0.818 µs ¦ 10 Gbps fiber latency (1024-byte packets): 0.817 µs ¦ 10 Gbps fiber latency (1518-byte packets): 0.816 µs
Capacity ERP entries: 4000 ¦ NDP entries: 4000 ¦ Buffer packet size: 16 MB ¦ Supported VLANs: 4093 ¦ IGMP concurrent information distribution groups: 4000 ¦ QoS hardware code: 8 ¦ IPv4 routes (static): 64 ¦ IPv6 routes ( static): 64 ¦ RIP application route scaling (IPv4): 32 ¦ IPv4 groups (Multicast): 512 ¦ IPv6 groups (Multicast): 128
MAC address table size 16,000 entries
12KB jumbo frame support
Routing Protocol RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, Policy-Based Routing (PBR), MLDv2, MLD, PIM- SMv6, PIM-DMv6, MSTP, RSTP, STP
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, SFTP, ICMP, DHCP, TACACS + , RADIUS
Features Flow control, Auto-detect by device, BOOTP support, IGMP snooping, port mirroring, DiffServ support, store and send, MAC address filter, Broadcast Storm Control, full-duplex mode, Multicast Storm Control, Unicast Storm Control, SNTP support, Weighted Random Early Detection (WRED), sFlow, DHCP snooping, Quality of Service (QoS), DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), LACP support, LLDP support , DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Multicast VLAN Registration (MVR), two firmware images, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS ), Strict Priority (SP), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), IGMP proxy, 802.1x authentication, Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, cable test, MLD proxy, IP origin protection, GAR P Multicast Registration Protocol (GMRP), Source-Specific Multicast (SSM), DNS client, Voice VLAN, LLDP-MED, RA protection, STP BPDU Guard, STP circuit protection, Denial of Service (DoS) protection, Protocol Independent Multicast ( PIM), Audio Video Bridging (AVB), MAC Access Bypass (MAB), Link Aggregation Group (LAG), Multiple Tag Protocol Identifiers (TPID), IPVT support, Access Control and Administration List Management (MACAL), identification of industry standards (ISDP), Rapid PVST + (RPVST +), Multiple Registration Protocol (MRP), STP BPDU Filtering, STP BPDU Flooding, MGMD Snooping, Any Source Multicast (ASM)
Compliance Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Dimensions (LxWxH) 44 cm x 40 cm x 4.32 cm
Weight 5,453 kg
Europe localization
Manufacturer's guarantee ProSAFE perpetual guarantee
