System 20 S1 SL HD MCF

MFR  2075S1

EAN  5060312080973

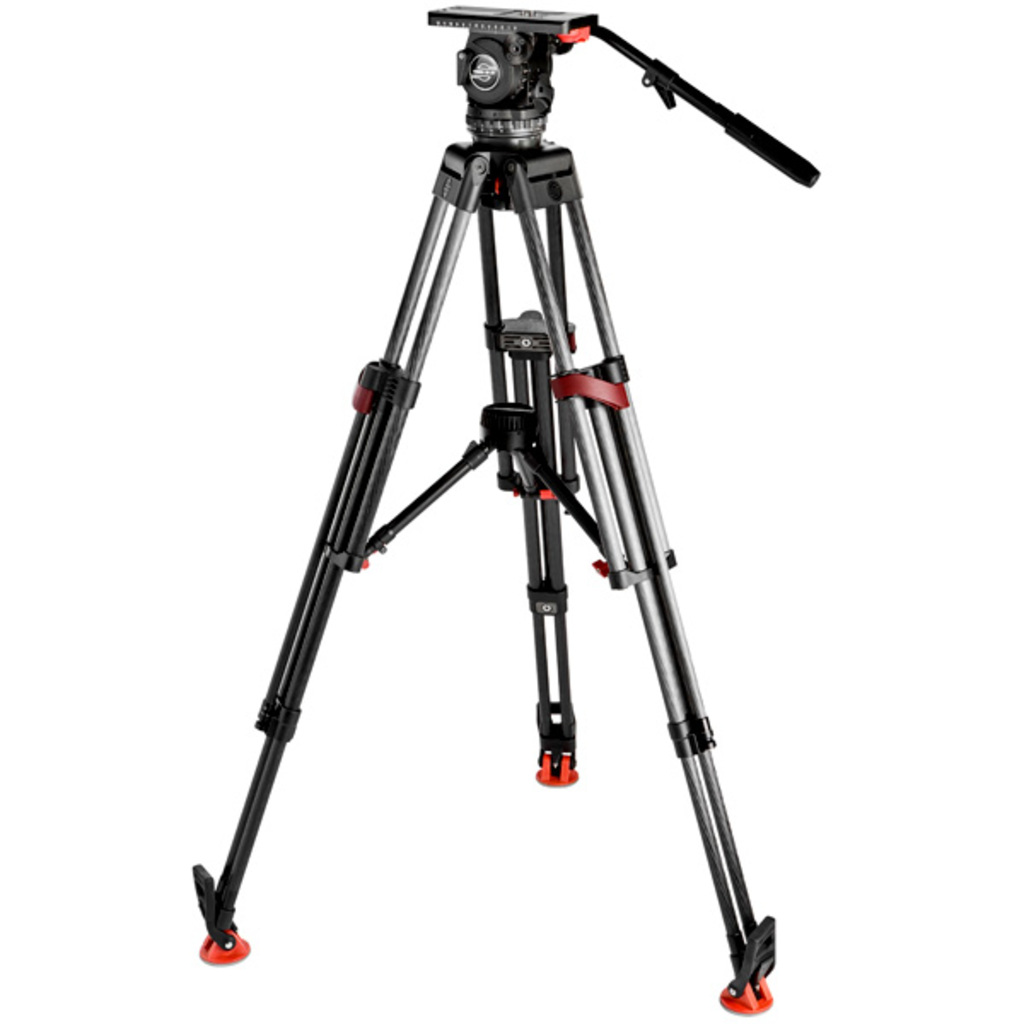

The Sachtler System 20 S1 SL HD MCF brings together the update of a classic fluid head with a solid, quick-action tripod to provide a professional level of support for today's news-gathering videographer. Whether you're shooting with a large ENG camcorder or the latest video DSLR, this system--which also includes mid-level spreader, rubber feet, and a carry bag--will give you the quick, easy balance and flexible control you need.

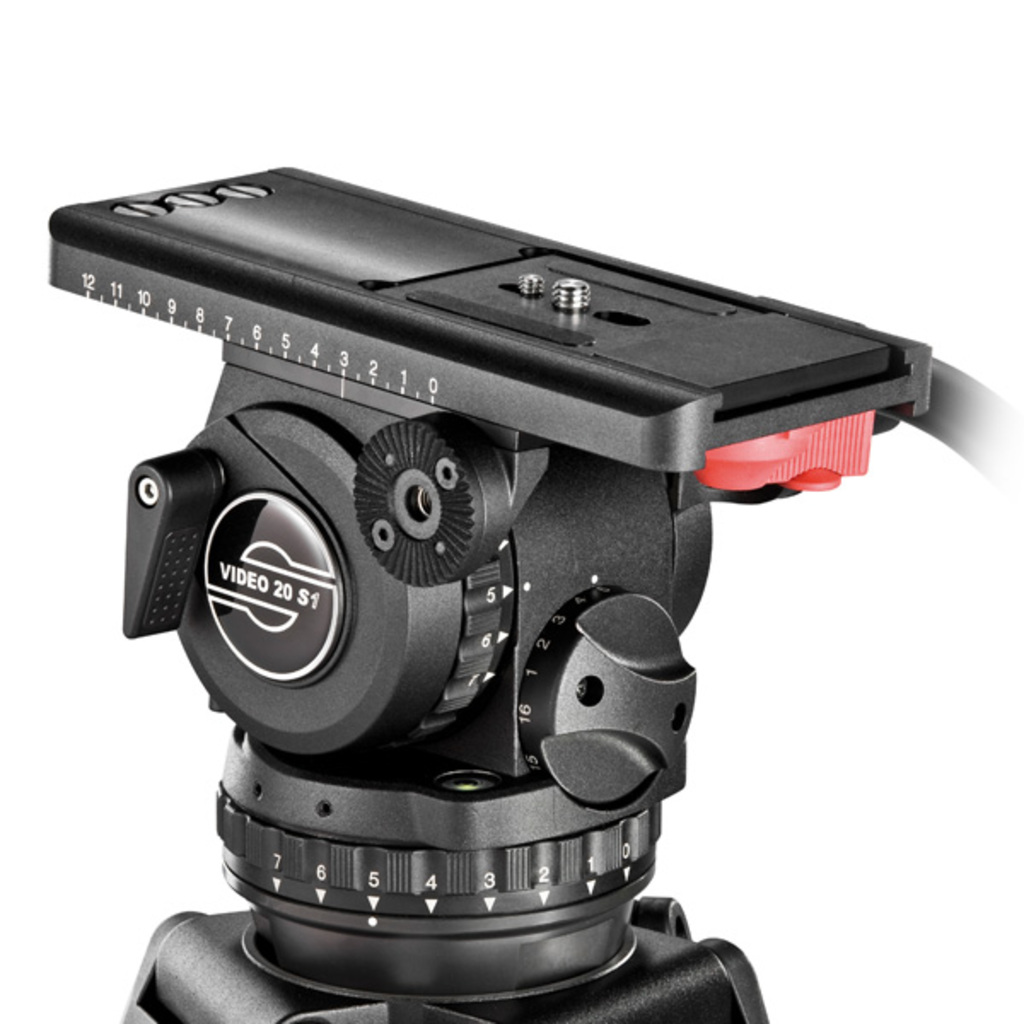

Video 20 S1 Fluid Head
This relaunch of the legendary Video 20 head incorporates a wider payload range and a faster, simpler balancing system. The increased range means that even lightweight cameras--such as video DSLRs--can be used effectively, aided by a 16-step counterbalance system that allows for fine degrees of tuning. Like its predecessor, the Video 20 S1 can also easily handle heavier ENG and EFP camcorders, with a Boost Button included for sudden shifts in payload range. Other features include 7 levels of drag, a self-illuminating bubble level, a Touch and Go plate for speedy mounting and removal, and Sachtler's already proven Speedbalance technology.

Speed Lock CF Tripod
The Speed Lock CF is among the fastest two-stage tripods in the world. This extremely sturdy and twist-resistant carbon fiber tripod ensures that you're already shooting while everyone else is still setting up. Simply release the three easy-to-reach clamps and you're ready for action. The patented clamping system lets you adjust the tripod smoothly and safely, even with a camera mounted, while the carbon fiber construction ensures minimal load-free weight, increasing stability and twist resistance.

Mid-level Spreader, Rubber Feet, Carry Bag
The included mid-level spreader ensures absolute stability regardless of the working surface, while a set of rubber feet will protect floors from scratching. Topping off the system is the ENG/EFP padded bag, which comfortably and quickly contains the whole kit for efficient transport.




General
Load Capacity 4-55 lbs (2-25kg)
Maximum Height 68.5" (174cm)
Maximum Height w/o Column Extended N/A
Minimum Height 28.7" (73cm)
Folded Length 37" (94cm)
Leveling Bubble/Illuminated Yes/Yes
Weight 22.7 lbs (10.3kg)
Head
Counter Balance System 16 Steps + Boost Button
Quick Release/Wedge Plate Touch & Go Plate 16
Balance Plate 4.7" (120mm)
Tilt Drag 7 Steps
Tilt Range +90° to -70°
Tilt Lock Independent
Spring Loaded Counter Balance 7 Steps
Pan Range 360°
Pan Lock Independent
Legs
Material Carbon Fiber
Head Attachment Fitting 100mm
Leg Stages/Sections 2/3
Leg Lock Type Quick Clamp Torque Lock
Independent Leg Spread Yes
Spiked/Retractable Feet Spiked
Center Brace Mid-level
Packaging Info
Package Weight 27.9 lb
Box Dimensions (LxWxH) 41.0 x 10.0 x 10.0"
