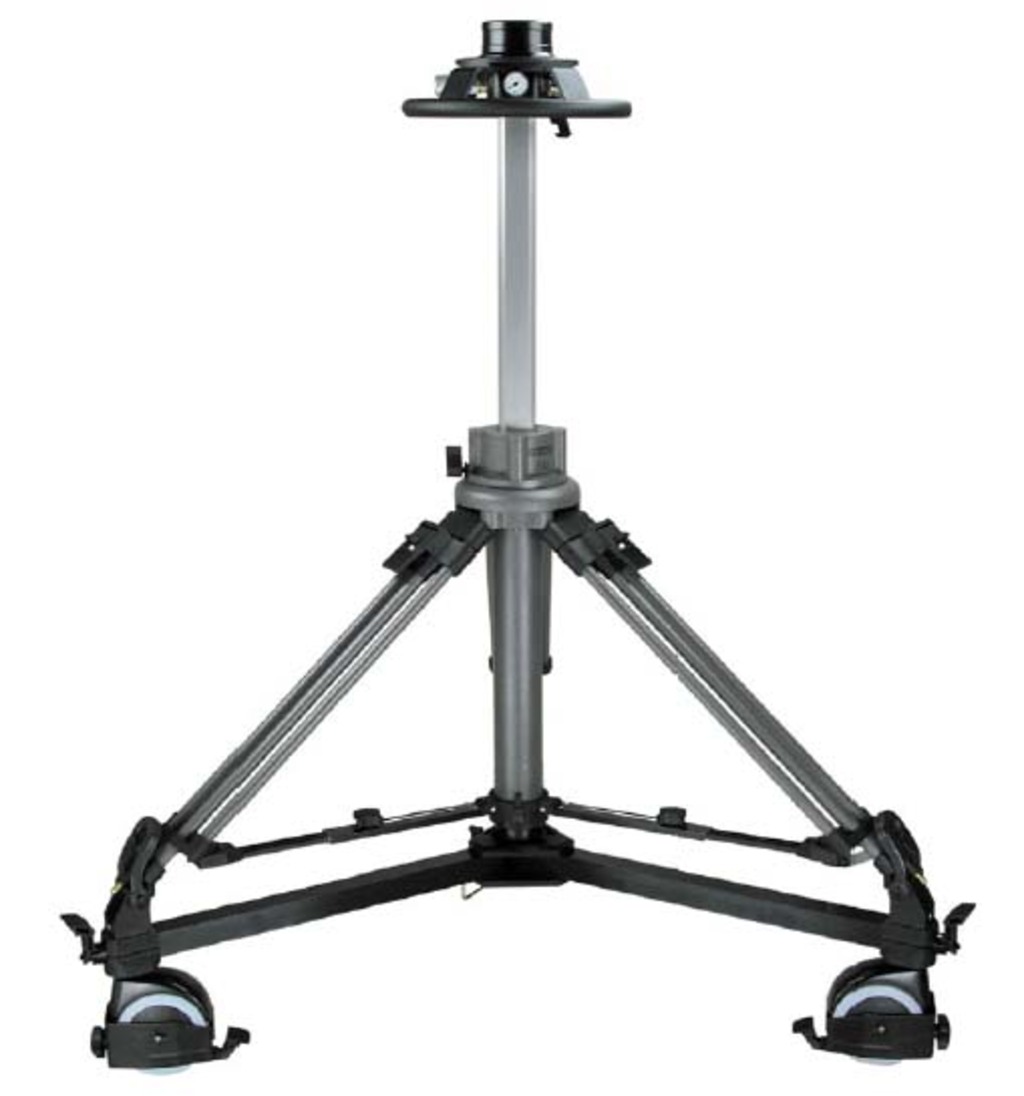

Cartoni P20 - FOCUS 18

MFR  P20 - FOCUS 18

Payload Capacity
It can hold up to 55 lbs, making it a great performer for light to medium weight rigs.

Pneumatic Column
The pedestal is anchored by a square shaped pneumatic system. The system works on the principle of compressed air, which acts as a counterweight. This allows for quick and easy height adjustment.

Easily Transportable
Pedestal collapses for easy transport.

On-Shot Capability
A pedestal's on-shot stroke (vertical distance the pedestal can be lifted with one smooth motion) is very important both in the studio and on location. It allows 15.7" on-shot stroke, making sure you achieve the shot you need.

Locking Wheels
Control the wheels simply by using the durable foot-operated braking buttons.

Cable Guards
Cable Guards surround the wheels, preventing any wires from tangling around the axles.

FEATURES

General
Load Capacity 55 lbs (25 kg)
Trim Ring No
Bowl Diameter/Thread 100mm
Steering Ring Diameter 10.2" (26cm)
Folded/Transport Length Not Specified By Manufacturer
Minimum Height 29" (74cm)
Maximum Height 63.3" (161cm)
Weight 31 lbs (14 kg)

Post
Stages 1
On-Shot Stroke 15.7" (40cm)

Dolly
Doorway Tracking Width 34.2" (87cm)
Transit Doorway Width Not Applicable
Narrow Doorway Width Not Applicable
Wheel Diameter 3.9" (10cm)
