Blackmagic UltraSTUDIO 4K EXTREME 3 | Thunderbolt 2

UltraStudio 4K Extreme 3 is the world's most advanced capture and playback solution for PCIe and Thunderbolt computers! It features incredibly fast 40Gb/s Thunderbolt 3, advanced 12G-SDI and HDMI 2.0 connections for working at up to 60 frames per second with deep color, 12-bit RGB, support for HDR workflows via HDMI 2.0a and extremely large 4K frame sizes, even in 3D! Featuring the widest range of analog and digital connections, UltraStudio 4K Extreme is compatible with virtually any camera, deck, router or display. There's even an extremely powerful hardware encoder built-in that supports realtime H.265 encoding!

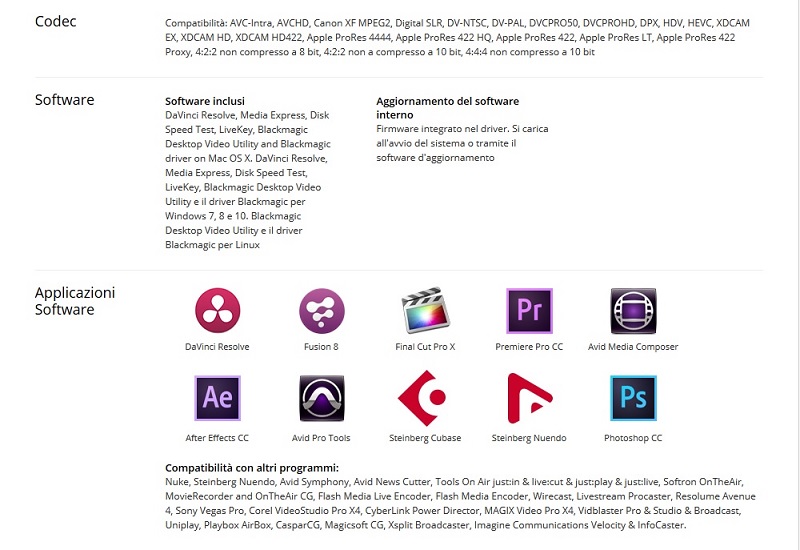

Codecs

Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Software
Software Included

DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS X. DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Windows 7, 8 and 10. Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade

Firmware built into software driver. Software driver loads upgrades at system start or via updater software.

Operating Systems
Mac OS X 10.9 Mavericks,Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan or later.
Windows 8.1 or Windows 10.

What's Included

UltraStudio 4K Extreme 3

SD card with software and manual

DaVinci Resolve SD card
Warranty

3 Year Limited Manufacturer's Warranty.

Connections
SDI Video Input

2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.
SDI Video Loop

4 x reclocked SD/HD/2K/4K linked to corresponding inputs.
SDI Video Output

2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.
SDI Video Repeated Output

2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.
Optical Fiber Input/Output

2 x 12Gb/s Optical Fiber (Optional).
HDMI Video Input

HDMI 2.0 type A connector with support for 2160p60
HDMI Video Output

HDMI 2.0 type A connector with support for 2160p60
Analog Video Input

1 x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC
Analog Video Output

1 x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC
SDI Audio Input

16 Channels embedded in SD/HD/2K/4K.
SDI Audio Output

16 Channels embedded in SD/HD/2K/4K.
HDMI Audio Input

8 Channels embedded in SD/HD/4K.
HDMI Audio Output

8 Channels embedded in SD/HD/4K.
Analog Audio Input

4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.
Analog Audio Output

4 Channels of professional balanced analog audio via XLR connectors.
AES/EBU Audio Input

2 Channels unbalanced with sample rate converter on BNC connector.
AES/EBU Audio Output

2 Channels unbalanced on BNC connector.
Mic Input

1 x 48V microphone input via XLR connector. Phantom Power switchable via software control.
Timecode Input

1 x XLR Input.
Timecode Output

1 x XLR Output.
Sync Input

1 x Reference input. Blackburst in SD or Tri-Sync in HD.
Sync Output

1 x Reference Loop Output. Blackburst in SD or Tri-Sync in HD.
Device Control

2 x Sony? compatible RS-422 deck control ports. Serial ports TxRx direction reversible under software control.
Computer Interface

Thunderbolt? 3, PCI Express
Power

2 x built-in international AC power supply with IEC C14 inlet. 120-240V, 50-60Hz.

UltraSTUDIO 4K EXTREME 3 - BlackmagicEAN 9338716003857
