PB-S220S - SwitEAN  6948193504520

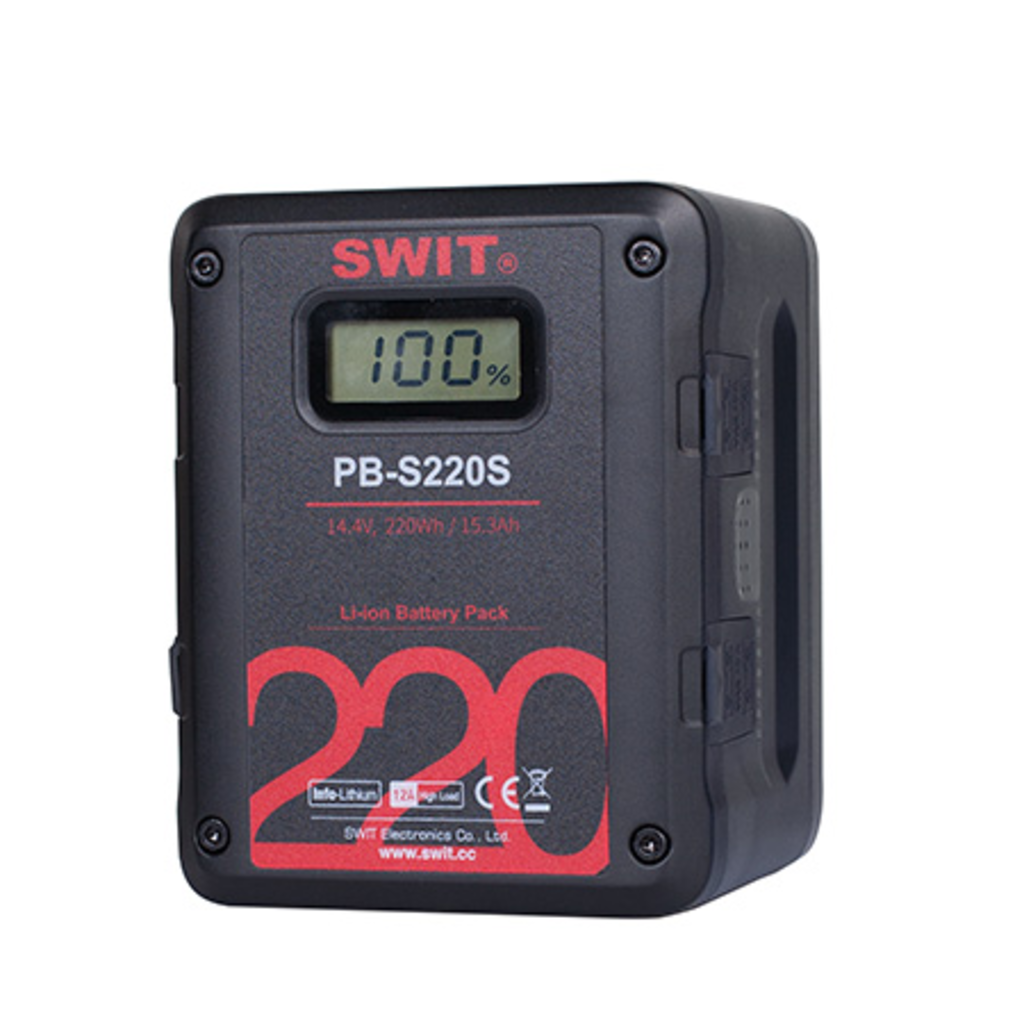

SWIT PB-S220S 14.4V 220Wh Multi D-Tap Heavy-Duty Digital Battery (V-Mount)

° Square-Shaped Design for Cine Cameras
° Up to 150W/12A Continuous Output
° Powers ARRI ALEXA for Approx. 2.5 Hours
° Powers ENG Cameras for Approx. 7 Hours

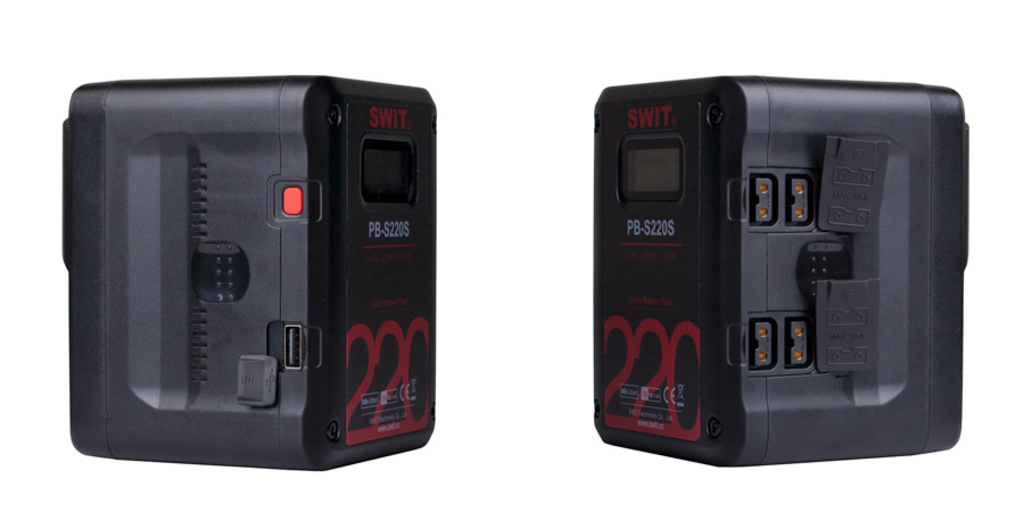

° Four D-Tap Outputs
° USB Port
° Intelligent LCD
° Communicates Runtime Info to RED & Sony
° Supports 6A Fast Charging
° Circuit Protection

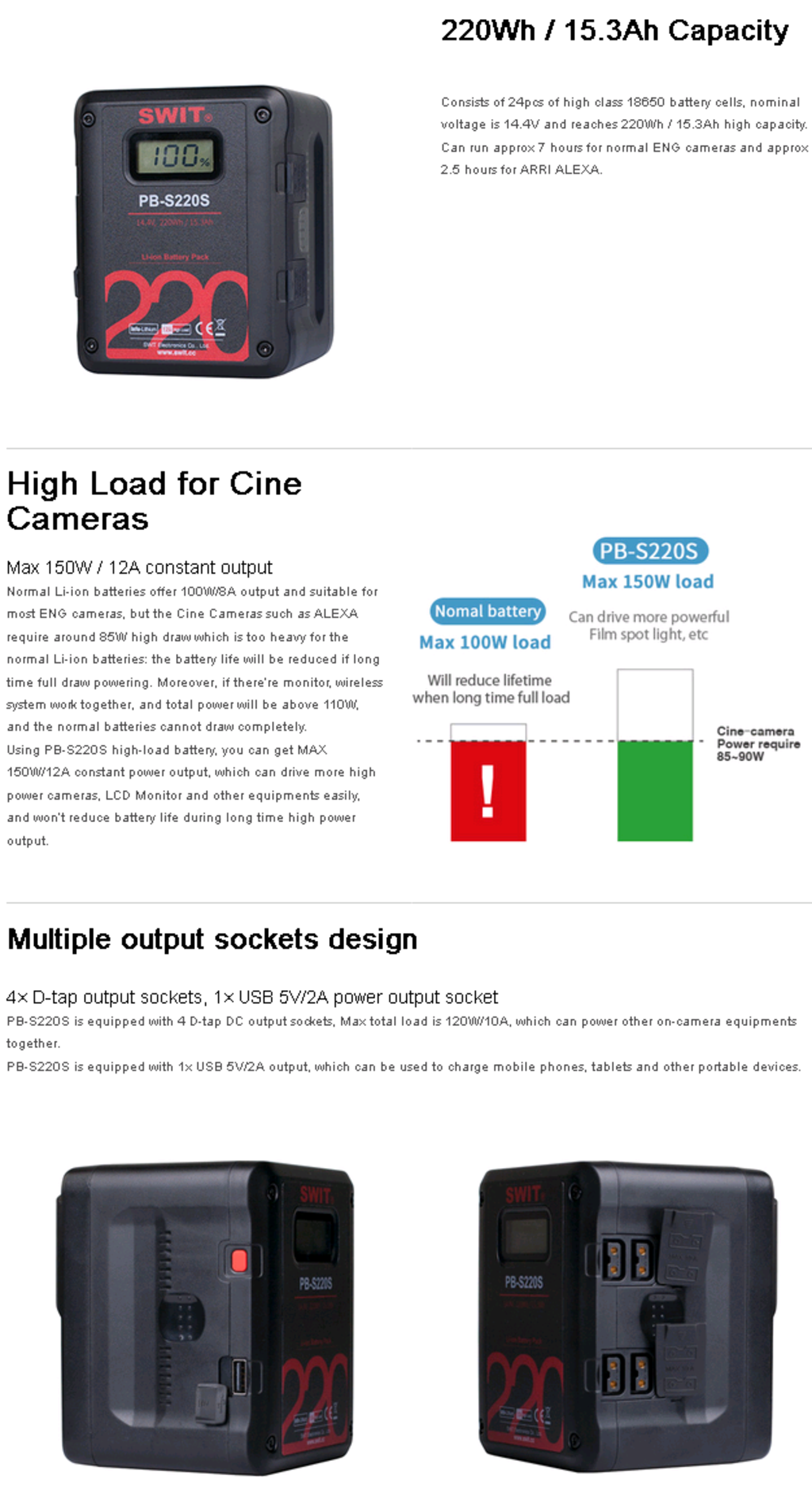

The SWIT PB-S220S 14.4V 220Wh Multi D-Tap Heavy-Duty Digital Battery, featuring a V-mount, has a short, square-shaped design and provides up to 150W/12A continuous output. This makes it suitable for up to the most demanding cine-cameras along with monitors and other accessories. With 220 watt hours, the PB-S220S delivers approximately 2.5 hours of power to the ARRI ALEXA and 7 hours to ENG cameras. In addition to this, it offers four D-Tap outputs ? meaning you won't need splitters if you have multiple accessories to power ? and a USB port for charging mobile devices.

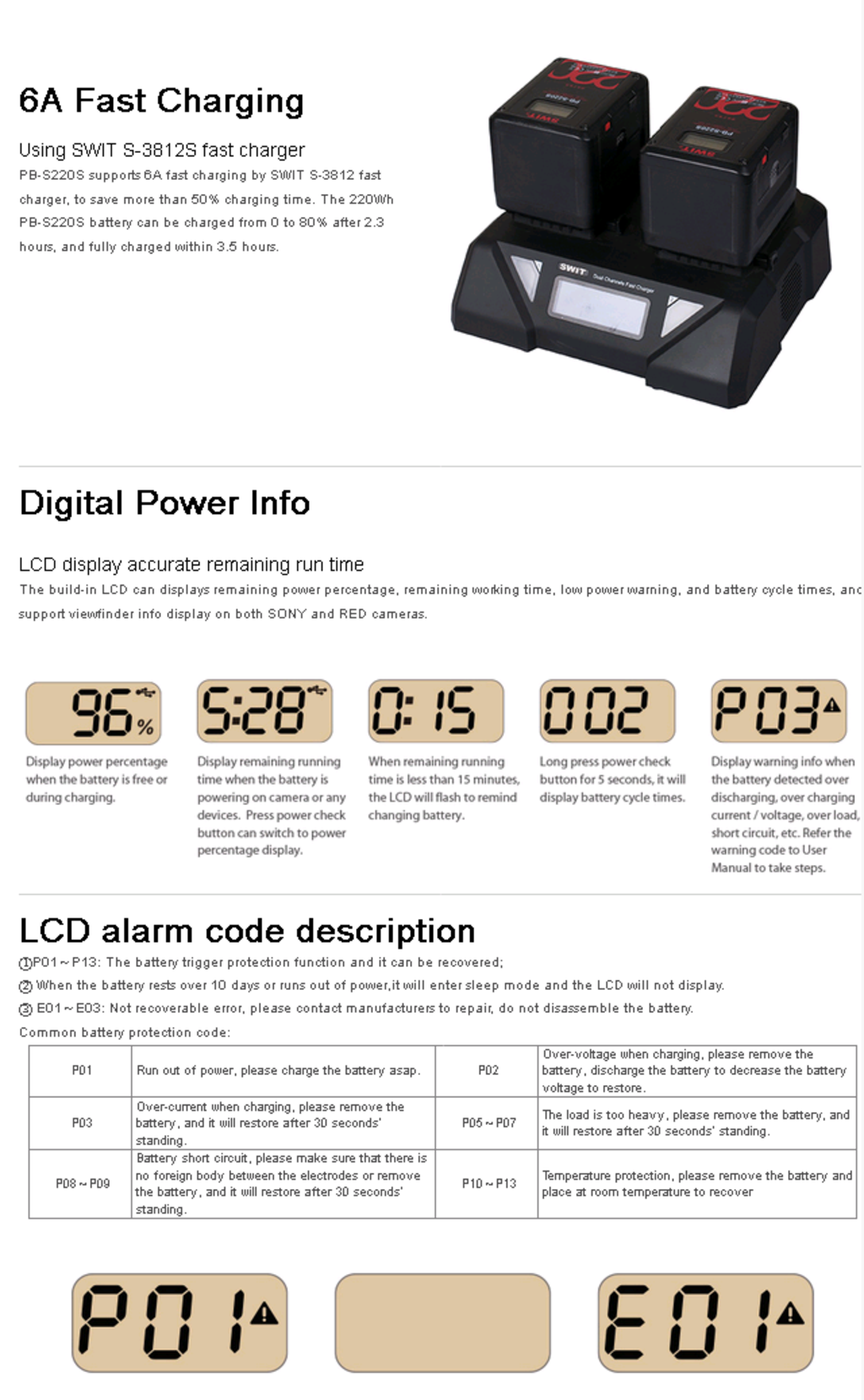

The battery has an intelligent LCD that displays remaining runtime in minutes when the battery is in use and as a percentage value when not in use or when charging. When remaining runtime is less than 15 minutes, the LCD will flash as a warning. It'll also show a warning signal with a specific warning code if the battery detects over-discharging, over-charging, circuit issues, and the like. A long press of the power-check button will display the battery's cycle times on the LCD. The PB-S220S also communicates runtime info to RED and Sony viewfinders.

This battery also supports fast charging at 6A using the optional SWIT S-3812S charger, which charges 0 to 80% of the battery in 2.3 hours and provides a full charge in 3.5 hours.
