Teradek RT Single-Channel Wireless Lens Control Kit with MOTR.S Lens Motor (CTRL.1, MDR.S, MOTR.S) - 15-0045-SS
Ideal for camera operators in single-lens configurations and with an upgraded lens motor, this RT Single-Channel Wireless Lens Control Kit from Teradek provides you with the CRTL.1 single-axis wireless lens controller, the MDR.S compact lens control receiver with Bluetooth, and the MOTR.S lens motor.
The improved MOTR.S is more lightweight than previous models and is capable of fast focus, iris, and zoom adjustments.
Easily set up your kit thanks to its included cables, mounting brackets, and LP-E6 battery.
Control all your lens functions from up to 5000' away and store it all in the included hard-shell case when not in use.

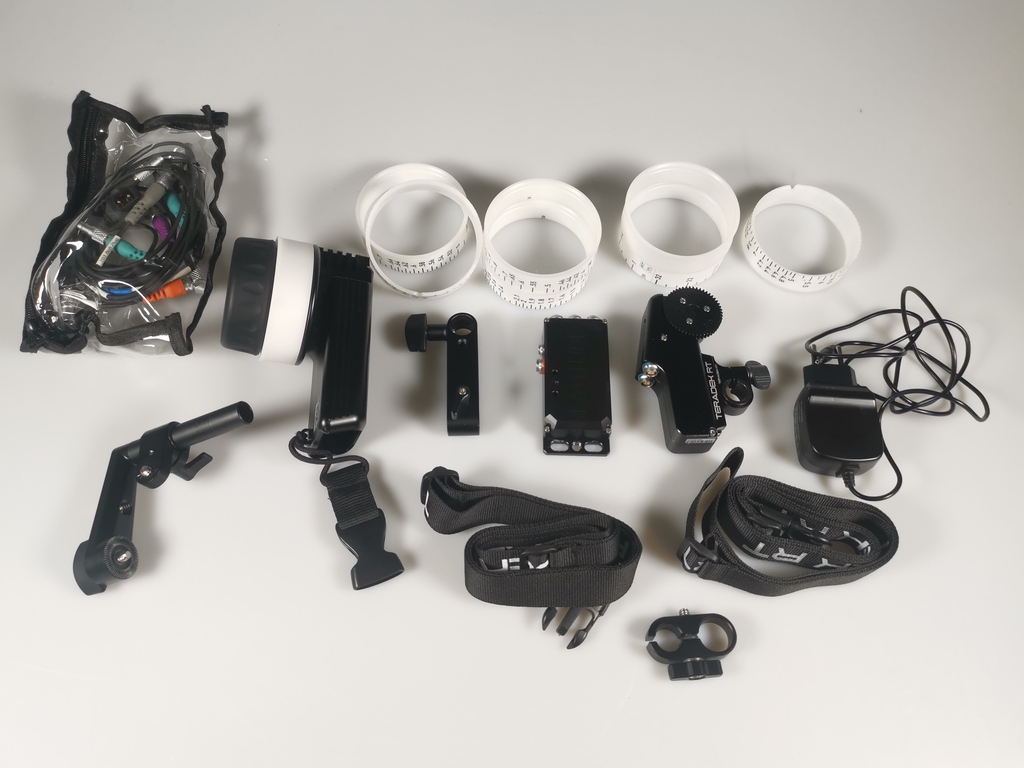

- MDR.S Compact Receiver
- MOTR.S Lens Motor
- CTRL.1 Wireless Lens Controller
- Pre-Marked Focus Rings, Iris Ring
- Motor, Controller, USB, and D-Tap Cables
- LP-E6 Battery with Charger
- Mounting Brackets, Neck Strap

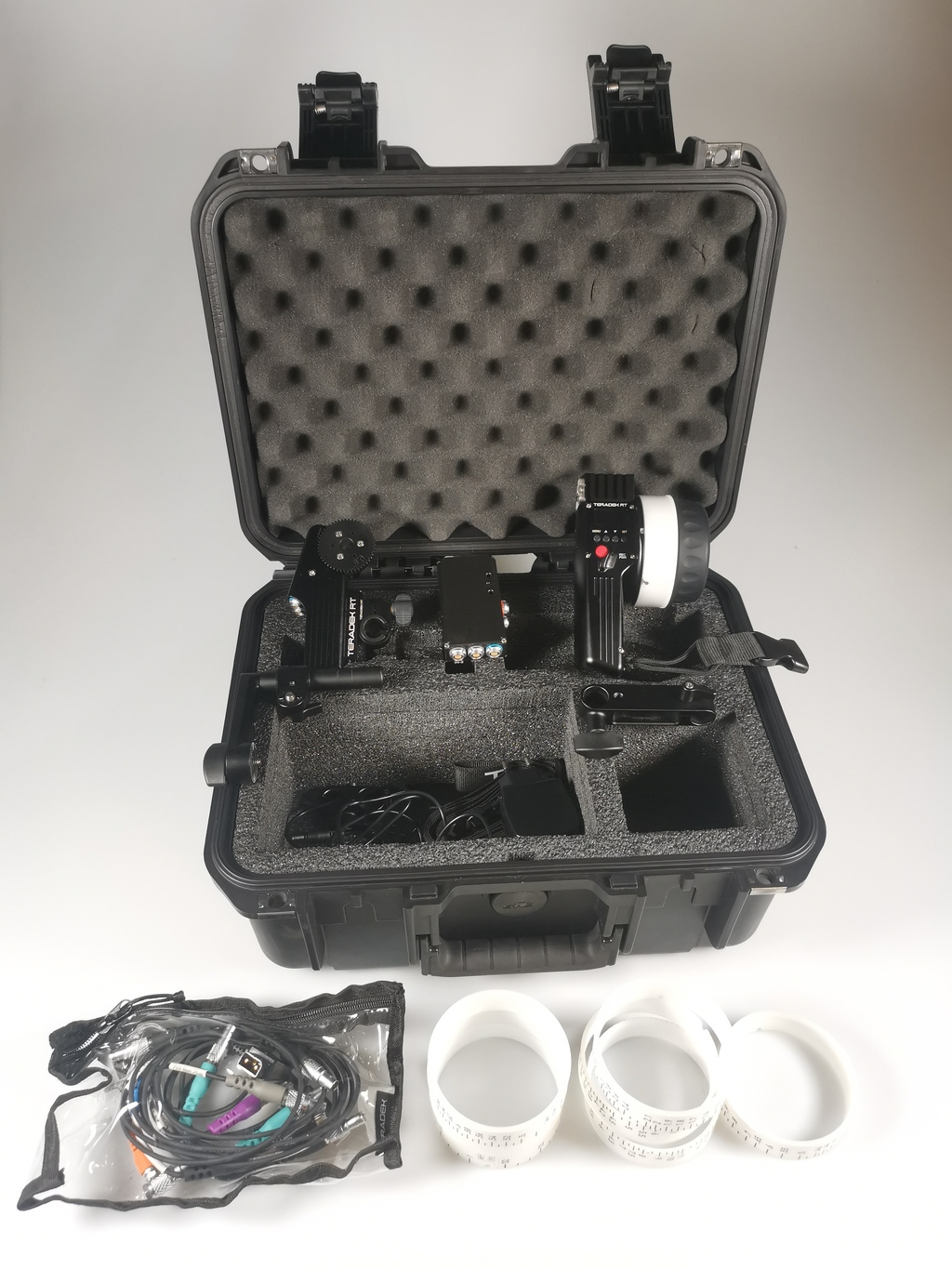

- Hard-Shell Case with Custom Foam
RT MOTR.S Lens Motor
General
Gear Pitch: 0.8 MOD
Maximum Torque_
- 0.95 nm (Peak)
- 0.3 nm (continuous)
Maximum Speed: 297 teeth per second
Connectors: 2 x 0B 4-Pin
Power
Power Source: Plug-In Power
DC Input Power: 7 to 32 VDC
Operating Current:
- 1 A (Standby)
- 2 A (Maximum)
Environmental
Operating Temperature: 32 to 82°F / 0 to 50°C
Physical
Mounting:
- 1 x 15mm Rod Clamp
- 1 x 19mm Rod Clamp
Color: Black
Material of Construction: Aluminum
Dimensions: 4.2 x 2.2 x 1.2" / 106 x 56 x 31 mm
Weight: 6.5 oz / 184 g
RT CTRL.1 Single-Axis Wireless Lens Controller
Compatibility: Teradek RT motors and receivers
Function: Focus, iris, or zoom
Wireless Range: 5000' / 1.5 km
Display: OLED
Control Port: 5-pin motor control
MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth
General
Compatibility: Teradek RT
Bluetooth Range: 5000' / 1524m
Display
Panel Type: OLED
Touchscree: No
Inputs / Outputs
USB I/O: 1 x USB-C Female Input
Video I/O:
- 1x Mini Hirose 6-Pin Input
- 1x Mini-DIN 4-Pin Input
Power
Power Source: Proprietary Interface
DC Input Power: 5 to 28 VDC
Physical
Mounting: 1 x Rail
Color: Black
Dimensions: 2.3 x 1.7 x 0.9" / 58 x 42 x 24 mm
Weight: 2.4 oz / 68 g
3-Pin to 2-Pin Power Cable for MDR.S Receiver (15.7")
General
Compatibility: Teradek MDR.S Receiver
Inputs / Outputs
Connector 1: 1x 3-Pin Male
Connector 2: 1x 2-Pin Male
Physical
Cable Length: 15.7" / 40 cm
3-Pin to 3-Pin R/S Power Cable for MDR.S Receiver (15.7")
General
Compatibility: Teradek MDR.S Receiver
Inputs / Outputs
Connector 1: 1x 3-Pin Male
Connector 2: 1x 3-Pin with ARRI Run/Stop Male
Physical
Cable Length: 15.7" / 40 cm
4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (8")
Compatibility: RT MOTR.X Brushless Lens Motor
Length: 7.8" / 20 cm
Connector: 4-Pin Straight Angle
4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (16")
Compatibility: RT MOTR.X Brushless Lens Motor
Length: 15.7" / 40 cm
Connector: 4-Pin Straight Angle
White Disc for CTRL.1/CTRL.3 Controller
Physical
Compatibility: CTRL.1 and CTRL.3
Dimensions: 3.2 x 0.87 x 3.2" / 81 x 22 x 81 mm
Weight: 0.6 oz / 18 g
Motore obiettivo RT MOTR.S di Teradek
Ingranaggio 0,8 MOD
Staffa MOTR.S
Controller obiettivo senza fili Teradek RT CTRL.1 ad asse singolo
Cinghia da collo
Cavo da mini-USB a USB (18")
Custodia rigida con schiuma personalizzata
Ricevitore di controllo obiettivo compatto a 3 canali Teradek MDR.S con Bluetooth
Cavo USB 2.0 da Tipo-A a Tipo-C maschio (3,3')
Cavo D-Tap a 3 pin per l'alimentazione di Teradek RT
Antenna Wi-Fi dritta da 2,4 GHz
Staffa MDR.S
Vite nera a testa cilindrica (M2 x 6 mm)
Vite a testa cilindrica (1/4"-20 x 3/8"-16)
Cavo di alimentazione Teradek da 3 a 2 pin per ricevitore MDR.S (15,7")
Cavo di alimentazione R/S Teradek da 3 pin a 3 pin per ricevitore MDR.S (15,7")
Cavo motore ad angolo retto a 4 pin Teradek per motore senza spazzole RT MOTR.X (8")
Cavo motore angolare diritto a 4 pin Teradek per motore obiettivo senza spazzole RT MOTR.X (16")
Staffa per monitor Teradek per pulsantiere CTRL.1/CTRL.3
Disco bianco Teradek per controller CTRL.1/CTRL.3
Anello di messa a fuoco premarcato Teradek (10", imperiale)
Anello di messa a fuoco premarcato Teradek (20", imperiale)
Anello di messa a fuoco premarcato Teradek (3,5', imperiale)
Anello di messa a fuoco premarcato Teradek (6', imperiale)
Anello di messa a fuoco premarcato Teradek (10', imperiale)
Anello di messa a fuoco premarcato Teradek (0,8', metrico)
Anello di messa a fuoco premarcato Teradek (1,6', metrico)
Anello di messa a fuoco premarcato Teradek (3,3', metrico)
Anello di messa a fuoco premarcato Teradek (6,6', metrico)
Anello di messa a fuoco premarcato Teradek (9,8', metrico)
Anello dell'iride premarcato Teradek (1-32, metrico)
Anello di messa a fuoco pre-marcato (14", imperiale)
Batteria Canon LP-E6 agli ioni di litio (1600 mAh)
Caricabatterie Canon LP-E6
Custodia rigida di grandi dimensioni con schiuma personalizzata
