Teradek Bolt 7 750 12G-SDI/HDMI Wireless RX
MFR  10-2702
EAN  810156142420

EAN:810156142420  ·  MFR:10-2702
€ 3.094,00 + VAT
€ 3.774,68 VAT Included
Available from 06 October 2026
Bolt 7 750 12G-SDI/HDMI Wireless RX - Teradek
Teradek
BUY
Teradek Bolt 7 750 12G-SDI/HDMI Wireless RX

- Dedicated 900 MHz wireless data transport
- Faster pairing and simplified setup with new OLED display
- 12G-SDI and HDMI outputs


Using Bolt 7's dedicated 900 MHz wireless data channel, the receiver supports camera control, monitor control, Ethernet transport, color management workflows, and future production applications - all alongside zero-delay wireless video.
A redesigned interface with a full-color OLED, simplified pairing, and enhanced control through the Bolt App makes deployment faster and RF monitoring easier than ever.
Bolt 7 maintains backward compatibility with Bolt 4K, Bolt 6, and RF-X systems, allowing productions to seamlessly integrate it into their current Teradek ecosystem and scale set capabilities.
Video Outputs: 12G-SDI SMPTE 2082-1 standard / 75 O (BNC x 2) 1 x HDMI 2.0 Type-A receptacle 1 x USB-C Display Port ALT mode video output
Color Sampling: SDI: YCbCr 4:2:2, 10-bit HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit
Delay Tx To Rx: <0.001sec
Output Video Processing: Deinterlacer, frame rate converter, scaler, 3D LUTs
Other Tools: Spectrum Analyzer, Test Pattern Generator
Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50 480i(NTSC)/576i(PAL)
Video Compression: Visually Lossless
Color Correction: 33x33x33 3D LUT (supports 10-bit color)
Audio Format: 48kHz 24-bit PCM
Configuration Interfaces: Color OLED with Menu, Joystick Navigation
Switches: On/Off Switch
Usbc Port: Firmware upgrade Display Port ALT mode video out Device setup via Bolt Manager desktop app
Locking5Pin Usb Port: USB host port for camera control via smart cables (optional)
Ethernet: Via smart cable connected to Locking 5 pin USB port
Antennas: 6 External, can connect to long range panel antenna
Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
Bluetooth: 2.4 GHz
Rf Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
Rf Power: 21 dbm EIRP
Camera Control Radio: 900 MHz
Power Input: 2-Pin Circular locking Connector 6-28 VDC
Nominal Power Consumption: 18 Watts
Dimensions: 112 x 88 x 32 mm
Weight: 463g (16.3 Oz)

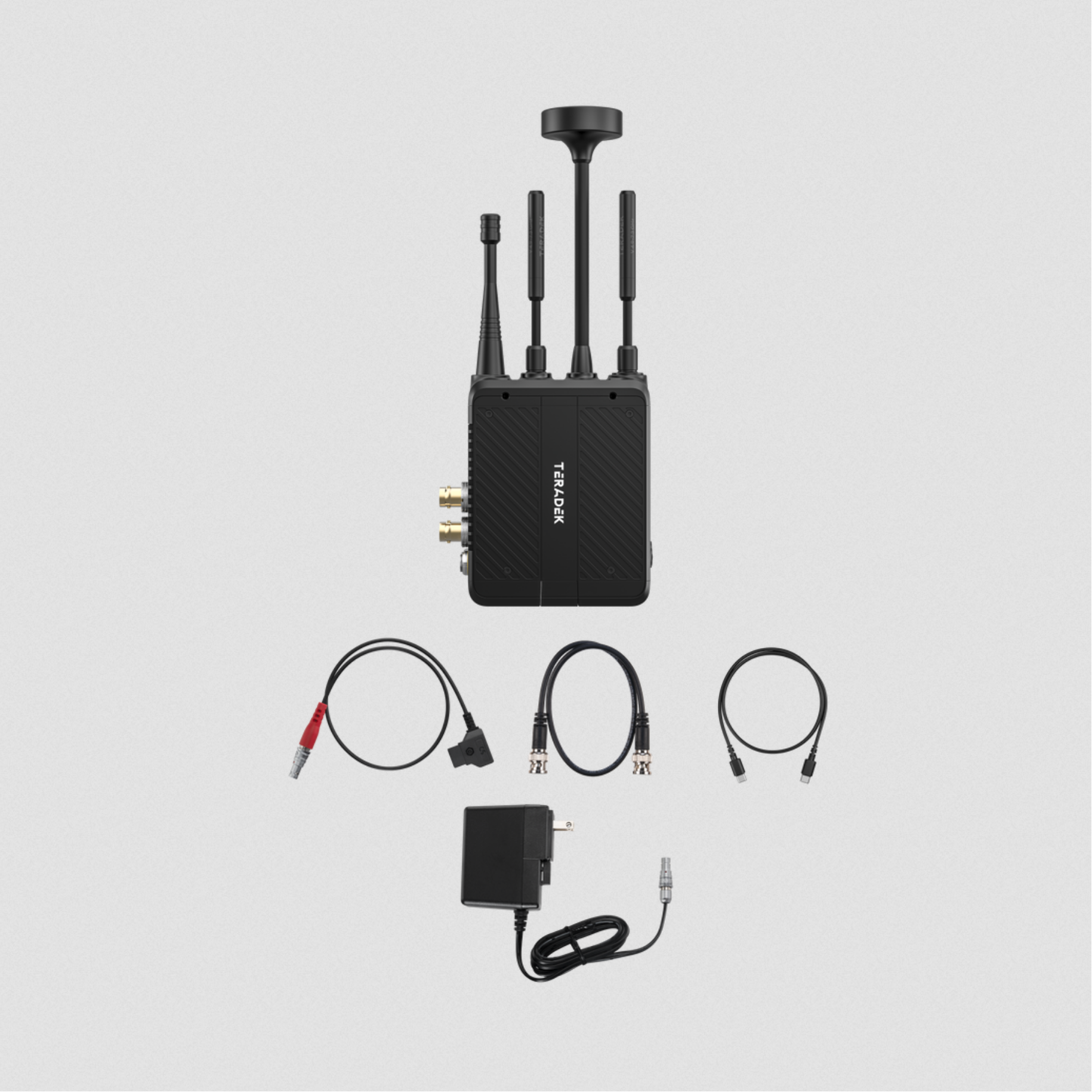

2 x Antenna 2dBi Flex V 4.9-7.3Ghz RP-SMA
1 x Antenna 2dBi Flexible H Mushroom V4.9-7.3Ghz RP-SMA
1 x Antenna 865-926 MHz SMA
1 x SDI 12G BNC to BNC Cable Length: 18in / 46cm
1 x DP ALT Mode USB-C Straight to USB-C Straight Cable, 36in
1 x 2pin Conn. to PowerTap - 18in Cable
1 x PSU 2pin Conn. to 36W AC Adapter (Int) - 6ft Cable
