Teradek Bolt 6 XT MAX DELUXE SET VM | Professional Wireless Transm ...

Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (V-Mount), Wireless Range 5000' / 1524 m (Line-of-Sight) - 10-2320-V

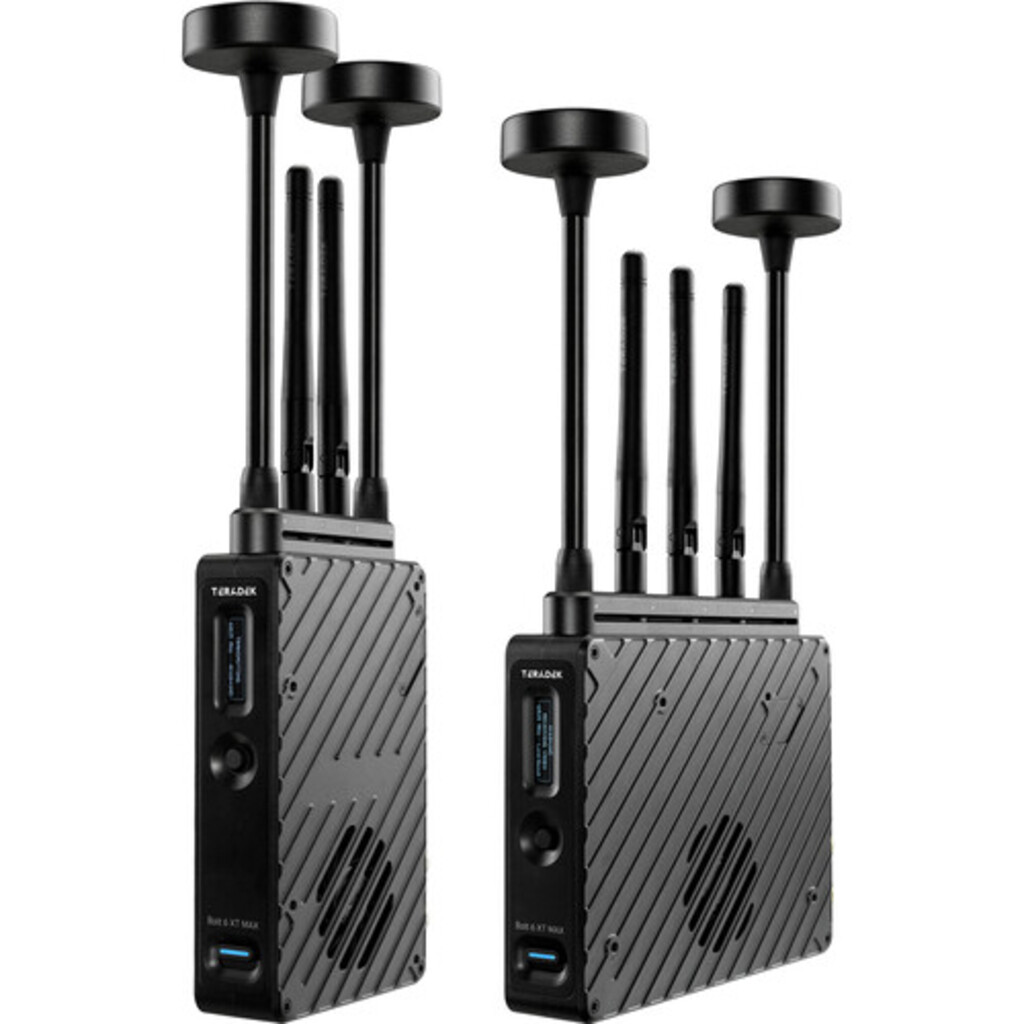

Transmit and receive lossless HD video up to 5000' line-of-sight with the Bolt 6 XT MAX 12G-SDI/HDMI Wireless RX/TX Deluxe Kit from Teradek.
The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K60 video with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available.
The transmitter inputs up to 4K video over HDMI or 12G-SDI, and the receiver outputs video via HDMI and 12G-SDI.

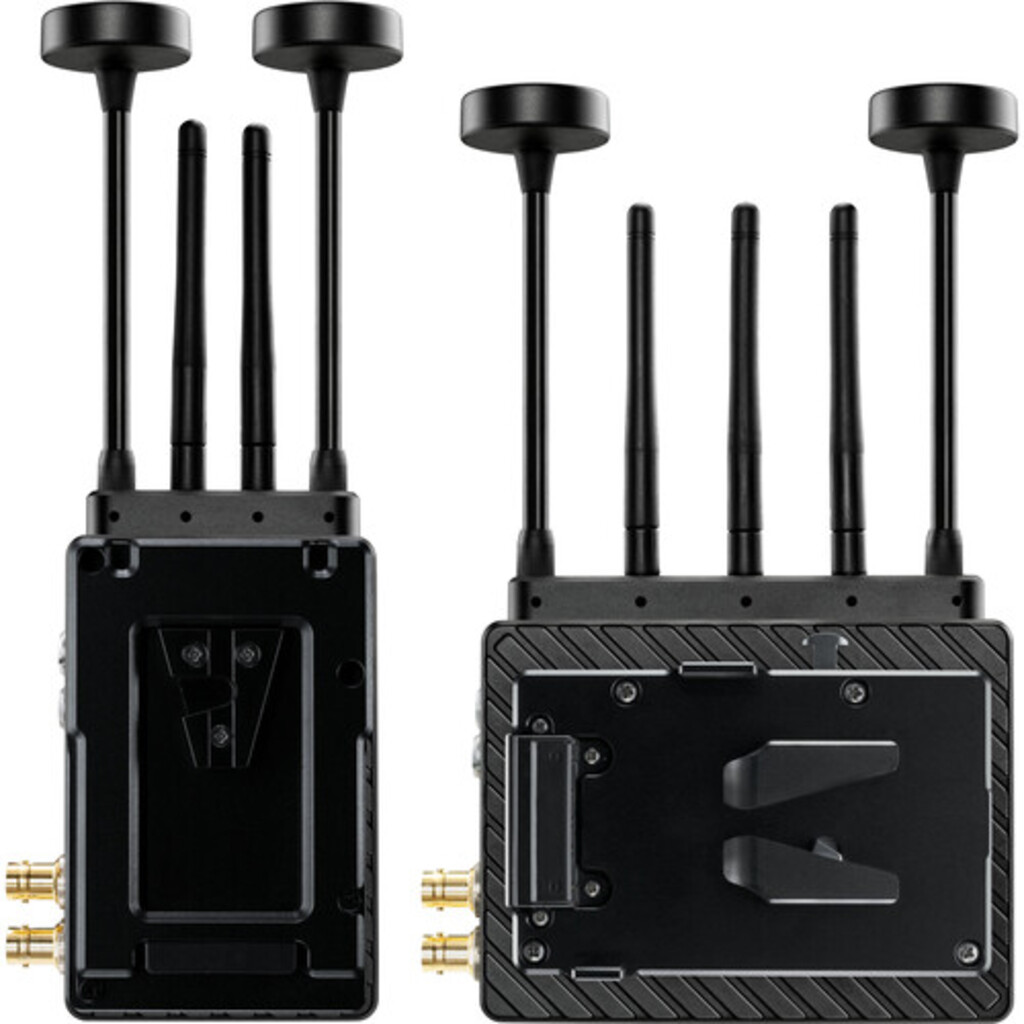

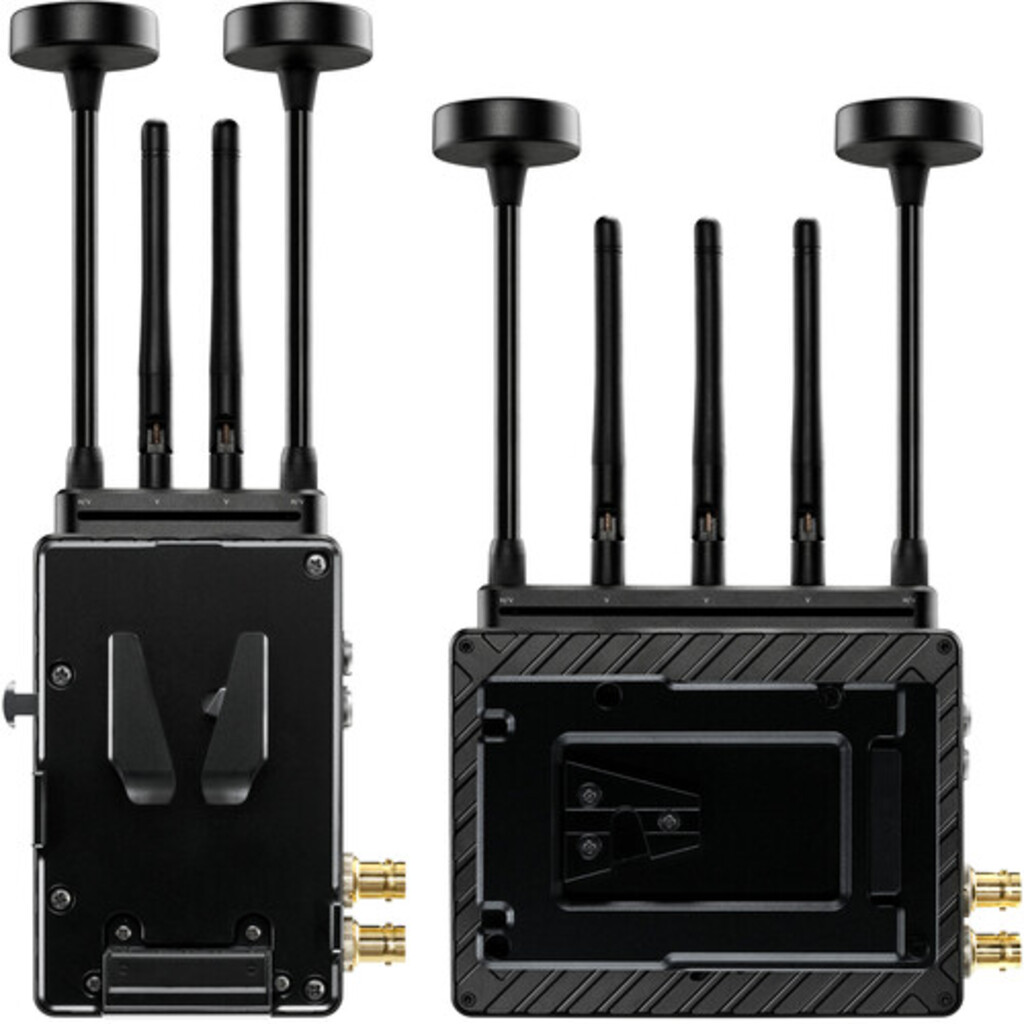

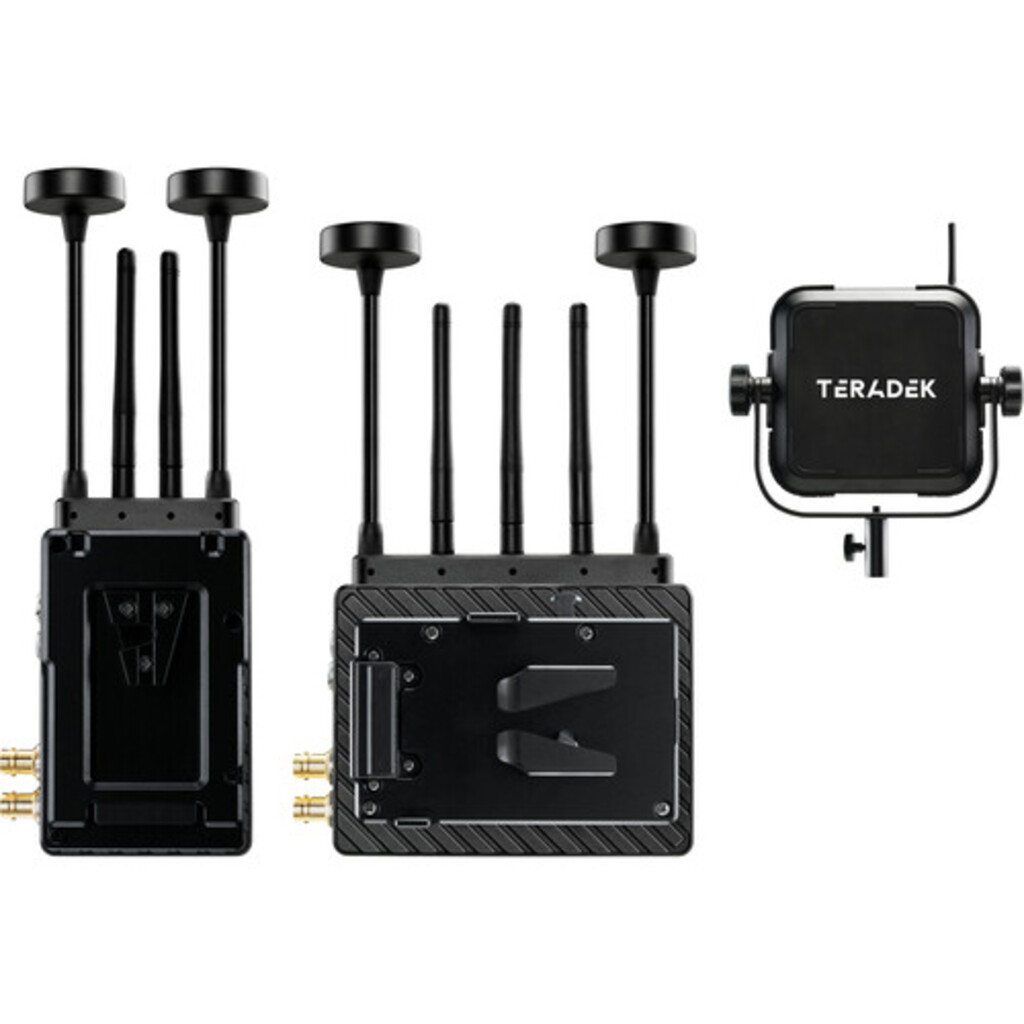

A V-mount battery plate is included to power each unit with a professional V-mount battery.

The transmitter sends up to 4K60 video to any Bolt 4K series receiver, and it can also simultaneously transmit to up to six receivers.
The system features improved metadata, range, and compatibility over its predecessors.
Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.
The Deluxe kit includes a carry case as well as multiple cables and mounting options.

- Supports New 6 GHz Frequency Band
- Transmit Video up to 5000' Line-of-Sight
- HDMI and 12G-SDI Inputs and Outputs
- V-Mount Battery Plate on Both Units
- Transmit up to 4K60 Video
- 10-Bit 4:2:2 Support, No Delay
- Compatible with Bolt 6/4K TX/RX Units
- AES-256 Encryption, 7 x Antennas
- Bluetooth Mobile App, Spectrum Analyzer

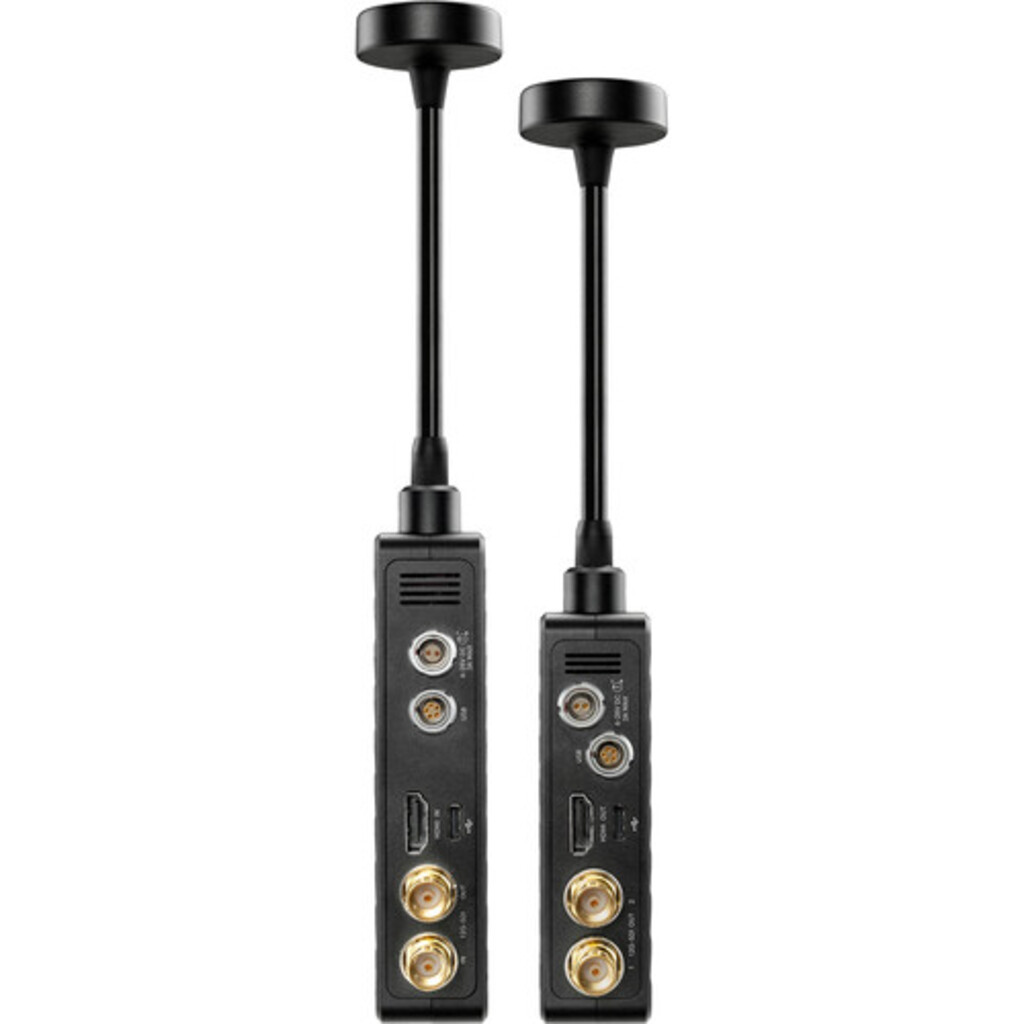

Inputs / Outputs
_____________________

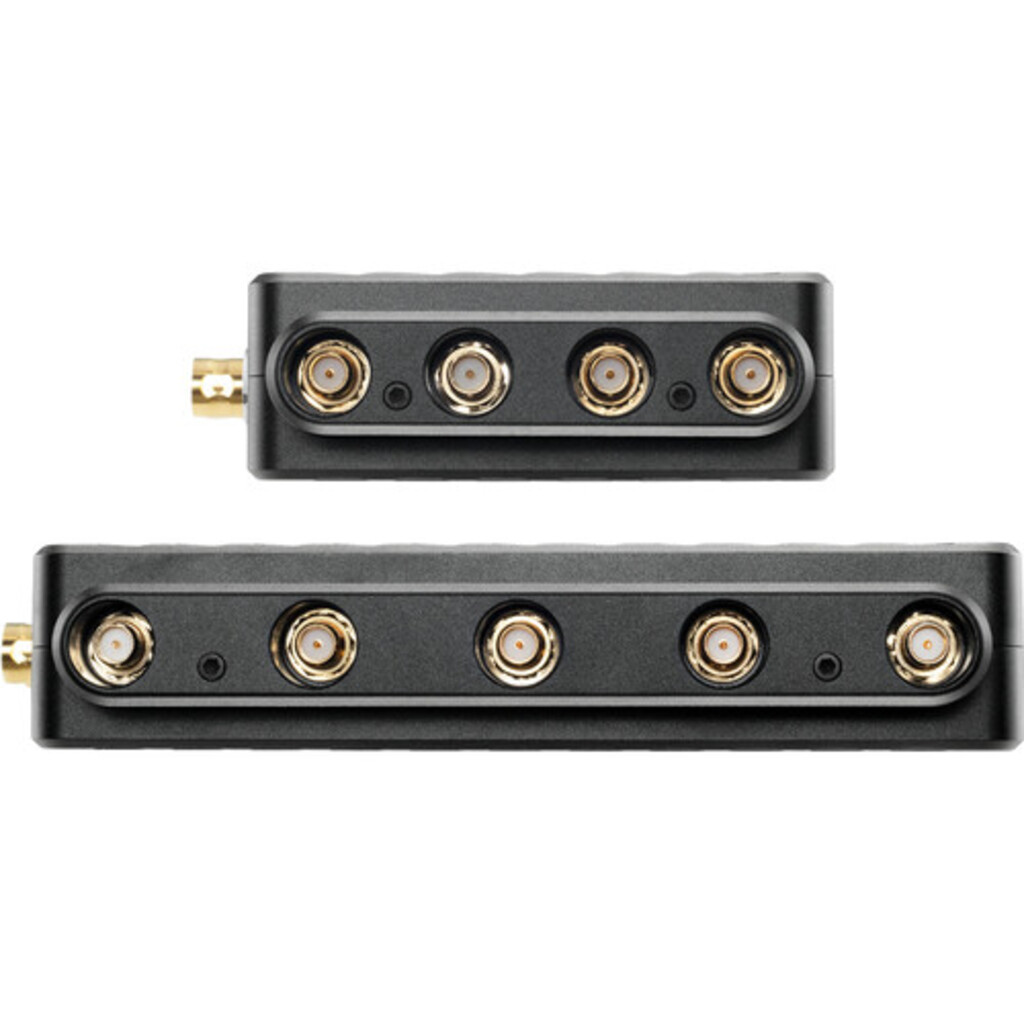

Antenna I/O:
- Transmitter: 4x RP-SMA Female
- Receiver: 5x RP-SMA Female
Video I/O:
- Transmitter: 1x HDMI 2.0 Input
- Transmitter: 1x BNC (12G-SDI) Input
- Transmitter: 1x BNC (12G-SDI) Loop Output
- Receiver: 1x HDMI 2.0 Output
- Receiver: 1x BNC (12G-SDI) Output
Embedded Audio:
- HDMI: 2-Channel
- SDI: 2-Channel
Audio I/O: No
Power I/O: Transmitter/Receiver: 1x LEMO 2-Pin (28 VDC) Input
Other I/O:
- Transmitter/Receiver: 1x USB-C 2.0 Input
- Transmitter/Receiver: 1x LEMO 5-Pin 2.0 Output
Encryption: 256-Bit AES

Wireless
_____________________
Wireless Range : 5000' / 1524 m (Line-of-Sight)
Channel Bandwidth : 40 MHz
Frequency Range:
- Non-DFS Frequencies: US: 5.94 to 6.42 GHz | US: 5.19 to 5.23 GHz | US: 5.75 to 5.79 GHz
- DFS Frequencies: US: 5.27 to 5.67 GHz
Latency: < 0.01 ms
RF Power: 23 dBm
Wi-Fi: No
Bluetooth: Yes
Mobile App Compatible: Yes: Android & iOS
Cellular Support: No

Format Support
_____________________
Video Format:
° HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
° SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format : 2-Channel 24-Bit 48 kHz
Timecode Support : Yes

Power
_____________________
Input Power : 6 to 28 VDC
Power Consumption:
- Transmitter: 20 W
- Receiver: 18 W

Environmental
_____________________
Environmental Protection: No
Certifications: No
Operating Temperature: 32 to 72°F / 0 to 40°C

General
_____________________
Material of Construction: Aluminum, Polycarbonate
Dimensions:
- Transmitter: 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm
- Receiver: 5.5 x 4.4 x 1.1" / 139 x 112 x 27 mm
Weight:
- Transmitter: 12.1 oz / 344 g, Excluding Battery Plate
- Receiver: 15.2 oz / 430 g, Excluding Battery Plate

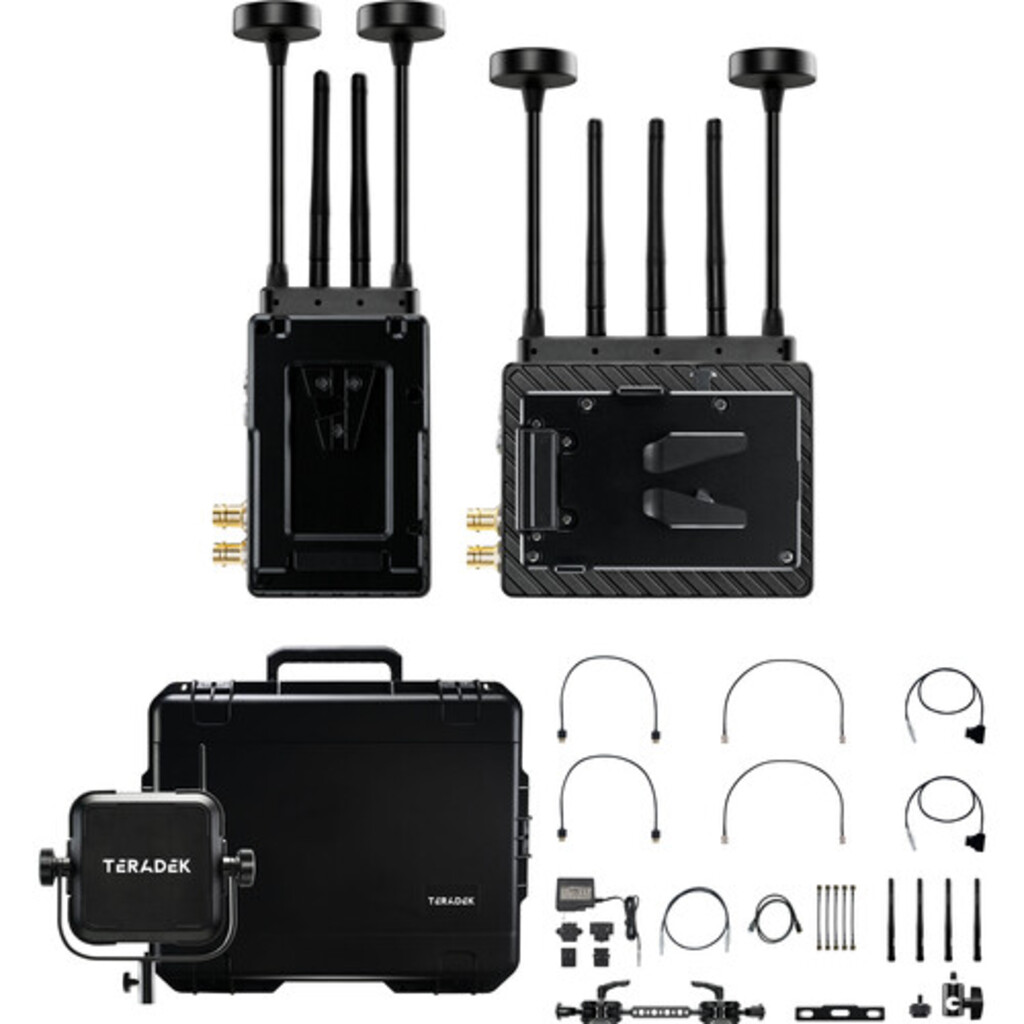

1x Bolt 6 XT MAX 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (V-Mount)
1x Bolt 6 XT MAX 12G-SDI/HDMI Trasmettitore (V-Mount)
1x Bolt 6 XT MAX 12G-SDI/HDMI Ricevitore (V-Mount)
1x Bolt 6 XT MAX 12G-SDI/HDMI Ricevitore (V-Mount)
1x Antenna Array
2x Cavo di alimentazione da 2 pin a D-Tap (18")
1x Cavo da Micro-USB a USB di tipo A (36")
2x Cavo HDMI di tipo A (18")
2x Cavo BNC (18")
Cavo a 2 pin per ALEXA (18")
1x Adattatore CA da 18 W con cavo (6')
2x Coperchio batteria Bolt (anteriore)
2x Coperchio batteria Bolt (posteriore)
5x Cavo RP-SMA (4")
1x Adattatore per supporto luce 1/4"-20
1x Adattatore per Shoe
1x Set di viti
1x Chiave a brugola
1x Supporto per monitor per telecamera in legno
1x Custodia per il trasporto
5x Antenna standard
4x Mushroom Antenna

Bolt 6 XT MAX DELUXE SET VM - TeradekEAN 818264027295
