Description

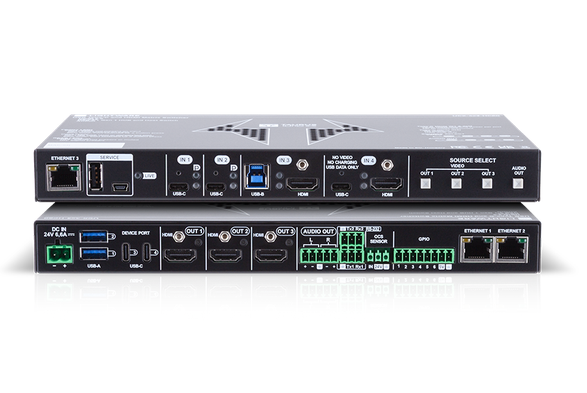

Lightware Universal Matrix Switcher with HDMI 2.0 and USB-C Connectivity with LARA Control
Universal matrix switcher that exploits the USB-C connectivity for a simplified transmission of 4K video, audio, control signals and power providing meeting participants with easy host switching, utilizing data speeds of up to 5 Gbps under the USB 3.1 Gen1 providing video resolution capabilities up to 4K@60Hz at 4:4:4 as well as comprehensive and secure Ethernet features, and now also DSC (Display Stream Compression) for delivering high-quality video even over limited-bandwidth USB-C connections.
Advanced room automation and control features.
Technical Detail
Video
Resolution: Up to UHD/4k@60Hz 4:4:4
5K Resolution: 5120×2160 HDMI 2.0: 30hz 4:4:4 or 60hz 4:2:0
Signal Type: DP Alt Mode, HDMI 2.0, HDMI 1.x, DVI
Maximum data rate: 18 Gbps
Maximum pixel clock: 597 MHz
Content protections: HDCP 1.x, HDCP 2.2
Connector type (IN):
- 2x HDMI receptacle type A with screw locking option
- 2x USB-C receptacle with screw locking option
Connector type (OUT): 3x HDMI receptacle type A with screw locking option
Video processing: Signal parameter measurement
Control
Ethernet Control: 1x 1000Base-T via RJ-45 for Secure Control
User Data: 1000Base-T via RJ-45 for Configurable Ethernet (RJ45 female connector, 1 Gigabit Ethernet)
RS232: 2x 3-pole Phoenix connectors (symbol rate 9600 to 115200 baud, parity: none, odd, or even, stop bits: 1 or 2)
USB:
2x USB Type-C with up to 100W charging function (120W total) and optional Ethernet access
1x mini USB Type-B (reserved for service)
1x USB Type-A (reserved for future developments)
1x USB Type-B for Host PC
1x USB Type-C for Host PC
2x USB Type-A for peripherals
2x USB Type-C for peripherals
Room Occupancy Sensor: 3-pole Phoenix connector
GPIO: 8-pole Phoenix connector
General
Powering: External 160W power supply
Operating conditions: Ambient temperature 0-50°C, Relative humidity 0-90% (non-condensing)
Transportation conditions: Ambient temperature -20-70°C, Relative humidity 0-95% (non-condensing)
Compliance: EN 55032:2015, IEC 61000-3-3:2013+AMD1:2017, FCC CFR Title 47, Part 15, Subpart B
Dimensions: Width 246 mm, Height 26 mm, Depth 140.3 mm
In the box
1x UCX-4x3-HC60
