KineMON-7U2 Ultra-Bright - Kinefinity

Monitors > Panel 7"
€ 849,00 + VAT
€ 1.035,78 VAT Included
Adcom - Kinefinity
New
Available in 10 days
7" 1920 x 1200 LCD Monitor for MAVO Edge
6" Mounting Arm, KineMon Sun Hood
2000 cd/mē Brightness, Gorilla Glass
Video & Power from Camera with Cable
1/4"-20 Mounting Threads
Runs KineOS, Low Power Consumption

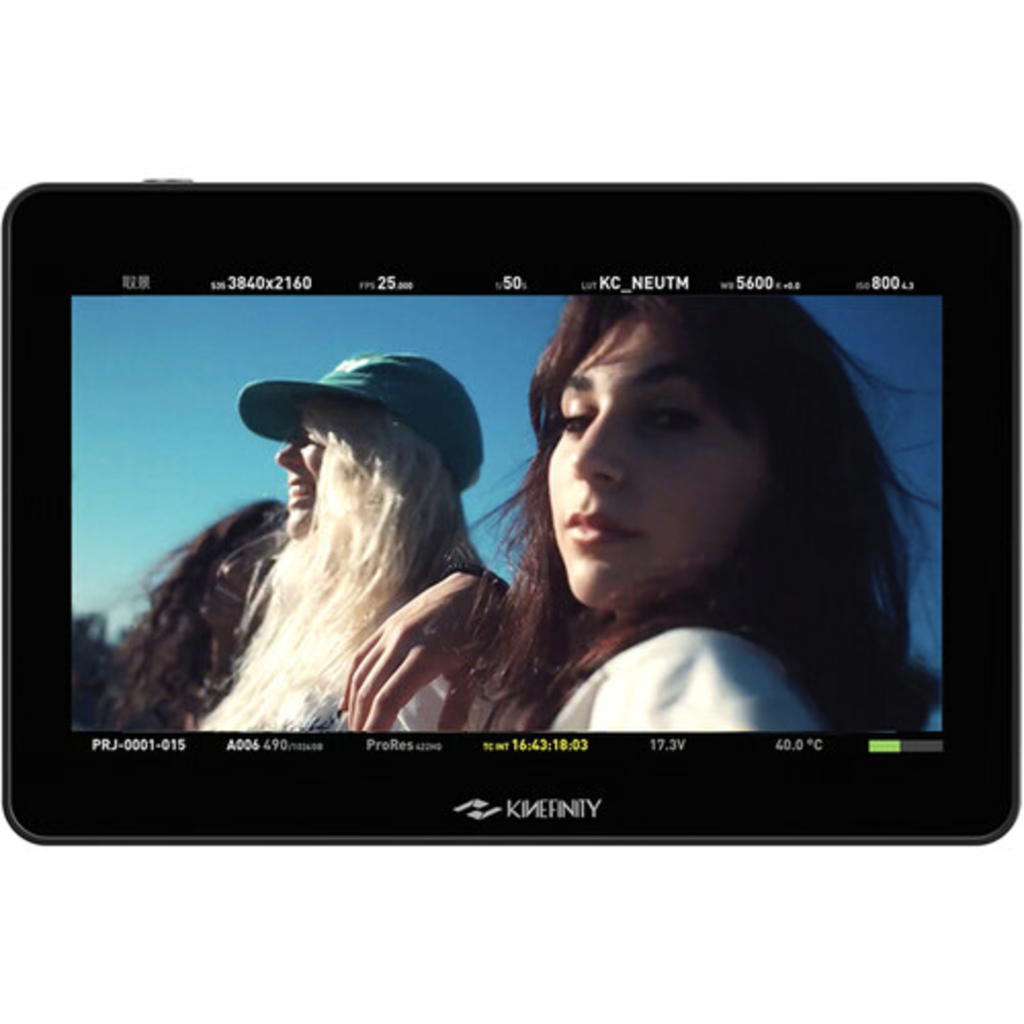

The KineMON 7U Monitor Package from Kinefinity features the 7" KineMON 7U on-camera monitor, a video cable, a 6" mounting arm, and a sun hood. The monitor features an LCD screen with a 1920 x 1200 resolution and brightness of 2000 cd/mē. It supports input from the MAVO LF, TERRA 4K, or MAVO Edge 8K camera over a separately available proprietary cable that provides video and power to the monitor. It features a 1000:1 contrast ratio and supports 24-bit RGB colors and a 100% Rec.709 color gamut.

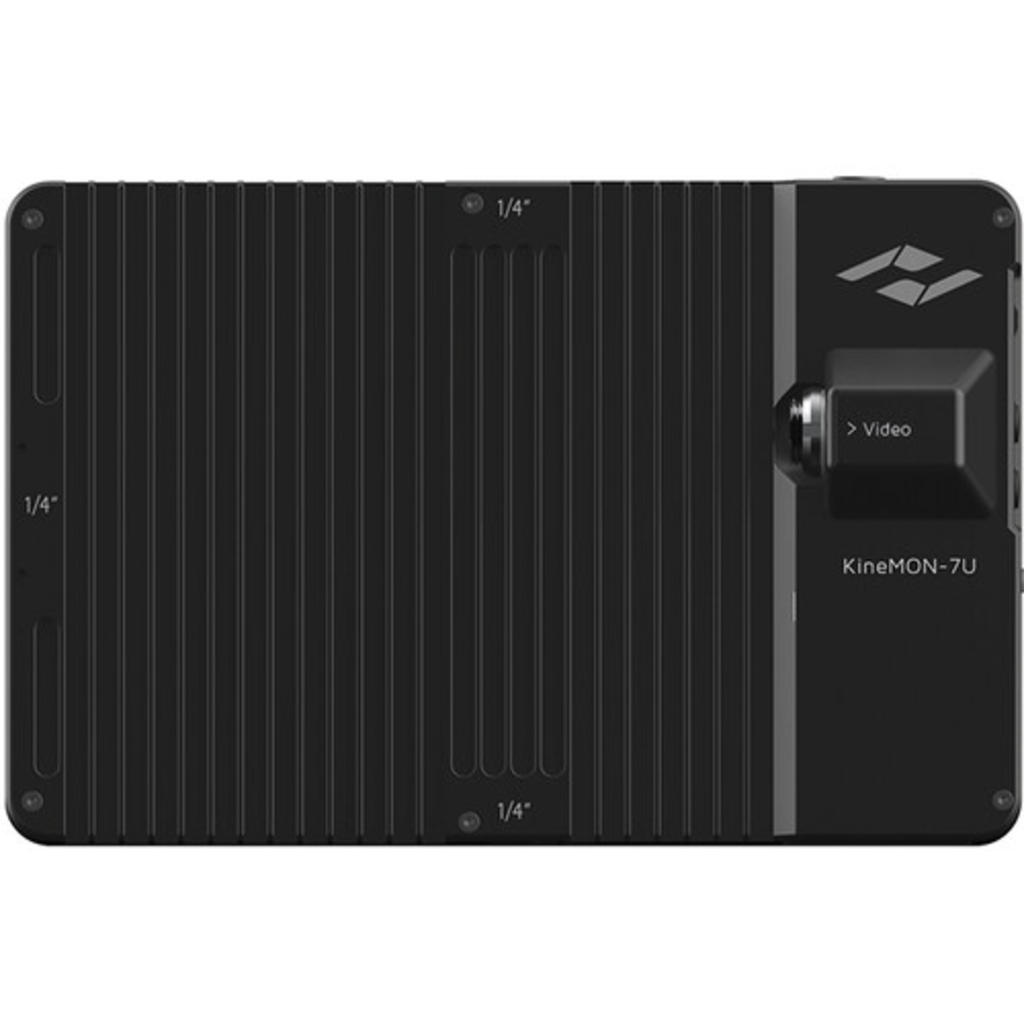

The KineMON 7U runs KineOS, which allows you to view and adjust monitor settings. It features a fast boot-up time and low power consumption, and it provides a sharp picture with natural color. A 1/4"-20 mounting thread is provided on the bottom, top, and right sides to mount it onto a rig using the included mounting arm or a variety of optional mounts.

In the Box

Kinefinity KineMON 7U Monitor Package
Sun Hood
Mounting Arm (6")
Kinefinity Kine Monitor Cable for KineMON (24")
Panel Type
LCD
Display Size
7.0" / 17.8 cm
Screen Resolution
1920 x 1200
Power I/O
1x Proprietary Input
Power Consumption
4 W (Typical)
6.5 W (Maximum)
Mounting
3x 1/4"-20 Female
Display
Color/Monochrome
Color
Panel Type
LCD
Display Size
7.0" / 17.8 cm
Screen Resolution
1920 x 1200
Aspect Ratio
16:9
Touchscreen
Yes
Maximum Brightness
2000 nits / cd/m2
Contrast Ratio
1000:1
Bit Depth / Color Support
8-Bit (16.7 Million Colors)
Pixels Per Inch (ppi)
325 ppi
Color Gamut
100% Rec. 709
Inputs / Outputs
Power I/O
1x Proprietary Input
Optics
Field of View
170°
Power
Power Consumption
4 W (Typical)
6.5 W (Maximum)
General
Mounting
3x 1/4"-20 Female
Material of Construction
Aluminum
Dimensions
6.9 x 4.5 x 0.6" / 176 x 114 x 14 mm
Weight
13.8 oz / 390 g
Packaging Info
Package Weight
2.79 lb
Box Dimensions (LxWxH)
11.5 x 7.1 x 4.2"

Kinefinity KineMON 7U Monitor Package
Sun Hood
Mounting Arm (6")
Kinefinity Kine Monitor Cable for KineMON (24")
