M215S - Seetec
Monitors > Panel 21"
EAN:6971863819334
€ 652,34 + VAT
€ 795,85 VAT Included
Adcom - Seetec
New
Available in 15 days
Seetec 21.5" 1000nit Multi-view Director Monitor, 1920×1080 pixels, 16:9, Contrast 3000:1
Multi-Camera Horizontal & Vertical Broadcast Monitor
SEETEC M215S is a 21.5-inch Full HD high-brightness multi-view monitor.
It is equipped with dual 3G-SDI and four HDMI 2.0 ports, supporting signal transmission up to 4K60p.
The M215S built for short drama production, multi-camera workflows,broadcast studio,and outdoor shooting, the monitor accepts up to 4 video input channels and offers a variety of multi-view monitoring layouts, including landscape and portrait modes.
A full set of professional assist tools such as waveform, 3D LUT, HDR, and audio monitoring is integrated to support efficient on-site production.

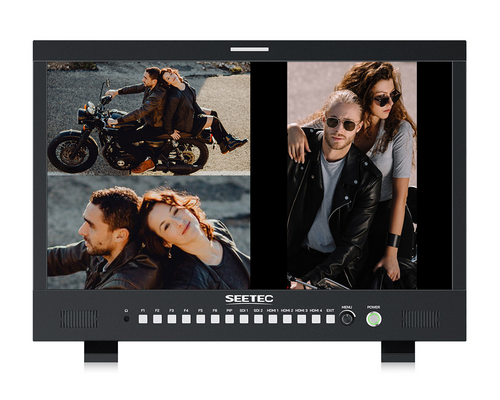

Multi-view Monitoring Mode
The screen can be set to dual, triple,and quad view through menu settings, supporting picture-in-picture mode, it perfectly fits diverse complex monitoring needs and delivers flexible, efficient use.
Horizontal Shooting & Vertical Cropping
The M215S comes with cropping function.
It enables seamless connection from horizontal shooting and vertical output, perfectly suited for short drama filming and mobile content creation.
Independent Mirror Flip for Each Window, Easier Monitoring
In multi-screen mode, the independent image flip function for a single window is supported.
Without adjusting the camera angle or wiring installation, any single screen can be freely mirror flipped, making camera installation more flexible and efficient, and improving monitoring efficiency.
Camera Status Display
The top of the monitor screen can display the signal input status of each camera in real time, facilitating the crew's overall management of shooting and effectively improving shooting efficiency.
21.5" Full HD IPS
With extremely high resolution 21.5-inch 8bit IPS panel provides rich colors,a wider field of view and clearly present more detailed image.
178 °wide viewing angle, support multiple members to monitor the image from all angles, facilitate team collaboration for filmmaking.
Professional CalMAN Software Calibration
Each monitor under goes color calibration via CALMAN professional software prior to leaving the factory,ensure color accuracy and good reproduction, and the delta E value =< 1.5.
1000nits, Visible in Sunlight
High brightness 1000nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.
Supports to load 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting.
You could use built-in 4 types(S-Log2,s-Log3, C-Log, V-Log) or upload .cube files define your own creative cinematic style Whatever you like.
The user stores the LUT document in the root directory of the USB flash drive, and insert to the USB interface of M215S to import (up to 32 custom files can be imported).
Up to 16-channle Audio Meter Level
M215S can de-embedded audio from SDI and HDMI. Under HDMI, you can select 2 channels, 4 channels, 8 channels audio meters display, under SDI, you can select 2 channels, 4 channels, 8 channels, 16 channels audio meters display .
You also can move it horizontal or vertical position , and don' worry cover the image.
Intuitive Buttons Control, One-key Access
Intuitive key operation allows directors and cinematographers to control the device effortlessly on the busy shooting set.
The signal source can be switched with one click,multi-screen mode switching and there are 6 customizable shortcut keys - cinematographers can pre-set the shortcut functions according to the actual needs of the shooting site and call up the required functions quickly during shooting, which greatly boosts shooting efficiency.
Multiple 3G-SDI & 4K HDMI Inputs and Outputs
The monitor is equipped with 2 channel 3G-SDI, 4 channel HDMI 2.0 inputs and loop outputs interface,which support up to 2160p 60Hz video signal,compatible with camcorder and various DSLR or mirrorless camera.
Tally Indicator, Enhance Team Cooperation
GPI controls Red Tally and Green Tally, which not only can remind the photographer to enter the recording state, but also appreciate the convenience of TV shooting quasi-professional technology in your creation.
11 Languages Supporting
M215S built-in up to 11 languages, that means M215S is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
