SmallHD Focus 504

MFR  16-0520

EAN  811786036134

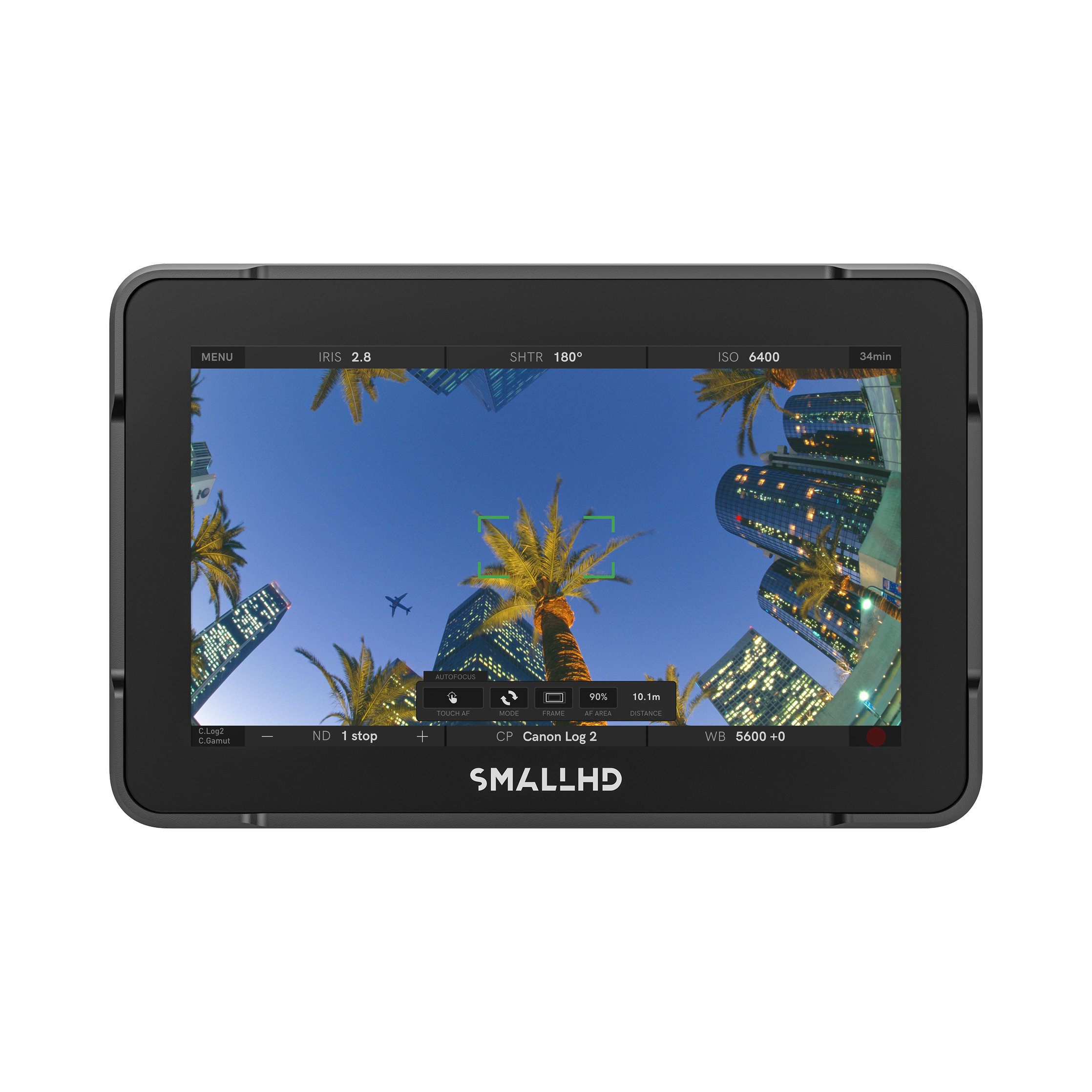

SmallHD Focus 504 - 5" 1000-nit On-Camera Touchscreen Monitor with 3G-SDI, HDMI 2.0, and PageOS

- Ultra-bright 5-inch panel: 1920×1080 touchscreen display with 1000 nits of brightness and 100% Rec.709 color gamut coverage.
- Advanced SDI and HDMI connectivity: features 3G-SDI and HDMI 2.0 inputs and outputs for seamless integration with any camera setup.
- PVC (Power, Video, Communication) interface: a locking USB-C port designed for the combined transmission of power, video (DisplayPort Alt Mode), and data/control signals.
- Built-in 2.4 GHz Wi-Fi: for wireless camera control and communication with the Fleet Control app.
- PageOS software: access to professional tools for exposure and focus, LUT support, and customizable camera control.
- Ultra-lightweight, rugged design: includes four 1/4"-20 mounting points with ARRI locating pins and a raised protective frame. The SmallHD Focus 504 is the thinnest and most versatile 5" production monitor in the lineup, designed to deliver the full power of PageOS software in an entry-level form factor—perfect for lightweight rigs, handheld shooting, and on-the-go productions.

Exceptional Visual Performance
With a brightness of 1000 nits and Full HD (1920×1080) resolution, the display ensures flawless visibility, even in broad daylight.
100% Rec.709 color gamut coverage guarantees absolute color accuracy in the field.

Connectivity and Versatility with PVC Technology
The monitor features both 3G-SDI and HDMI 2.0 input and output ports.
The new locking USB-C port (PVC) supports the DisplayPort Alt Mode standard, enabling the transmission of video, data, and power through a single cable. Additionally, there are two extra USB-C ports (5V/1.5A) for powering accessories, performing firmware updates, loading LUTs, or capturing screenshots via a USB flash drive.

Total Camera Control
Thanks to built-in Wi-Fi and support for dedicated camera control licenses (compatible with RED, Sony, ARRI, and Canon systems), operators can monitor their shot and adjust camera settings—such as aperture, ISO, shutter speed, white balance, and recording—directly from the monitor's touchscreen.
