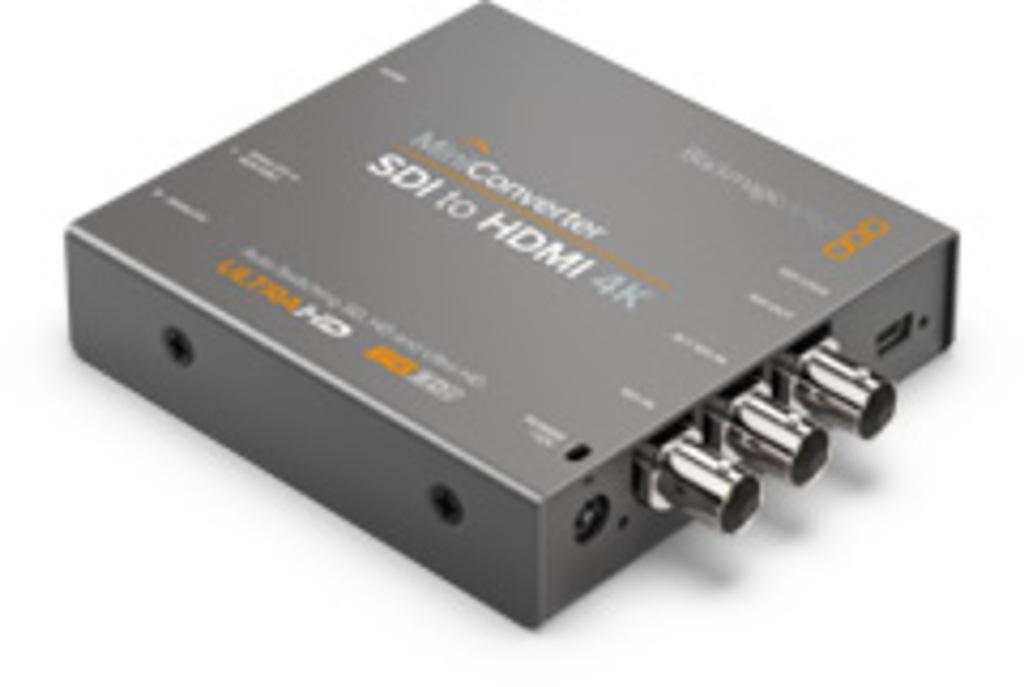

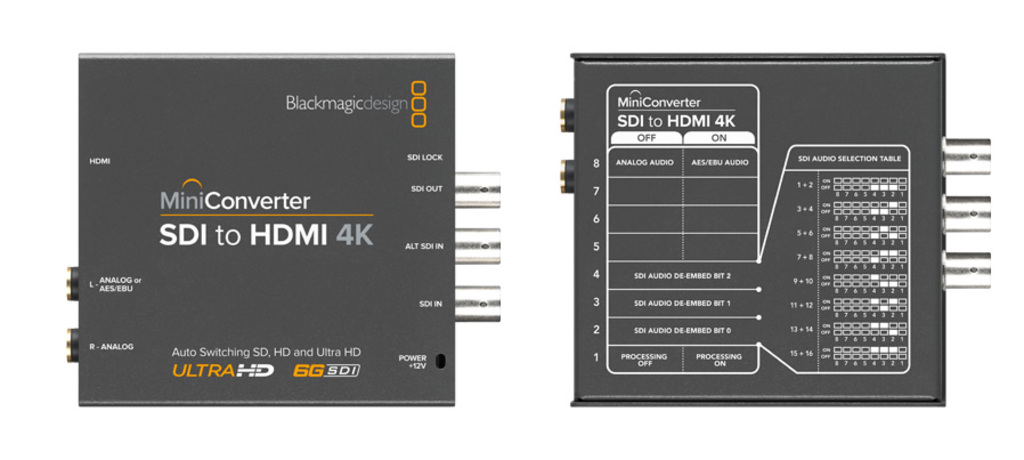

Decklink Mini Converter SDI to HDMI converts from SDI to HDMI video with embedded HDMI audio, plus balanced AES/EBU or analog audio. Imagine using big screen televisions and video projectors for broadcast video monitoring! Now you can easily connect HDMI displays to SDI based equipment.
Main Features
======================
° SD Format Support
525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL
° HD Format Support
720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60,1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
° 2K Format Support
2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25
° 4K Format Support
3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
° SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M and SMPTE 425M.
°SDI Video Rates
SDI video connections are switchable between standard definition, high definition and 6G-SDI.
° SDI Video Sampling
4:2:2 and 4:4:4
° SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
° SDI Color Precision
4:2:2 and 4:4:4
° SDI Color Space
YUV and RGB
° SDI Auto Switching
Automatically detects SD, HD or 6G-SDI.
° HDMI Format Support
625/25 PAL, 525/29.97 NTSC, 525/23.98 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080p23.98, 2048x1080p24, 2048x1080p25, 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
° HDMI Color Space
YUV and RGB
° HDMI Color Precision
4:2:2 and 4:4:4
