KC50N - Kato-Vision
PTZ cameras > Remote Control
€ 733,52 + VAT
€ 894,89 VAT Included
Adcom - Kato-Vision
New
Available in 15 days

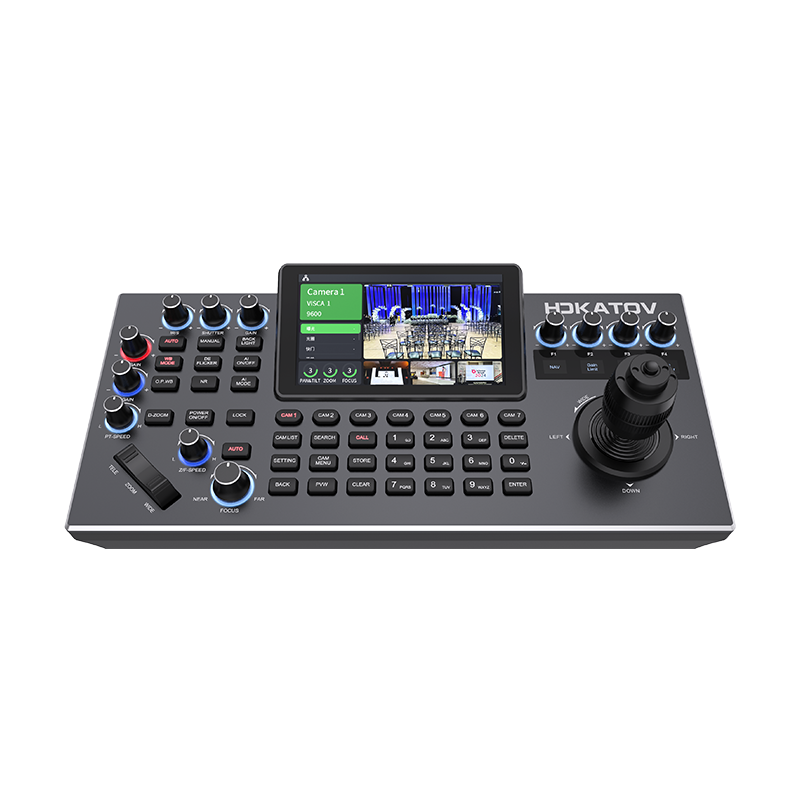

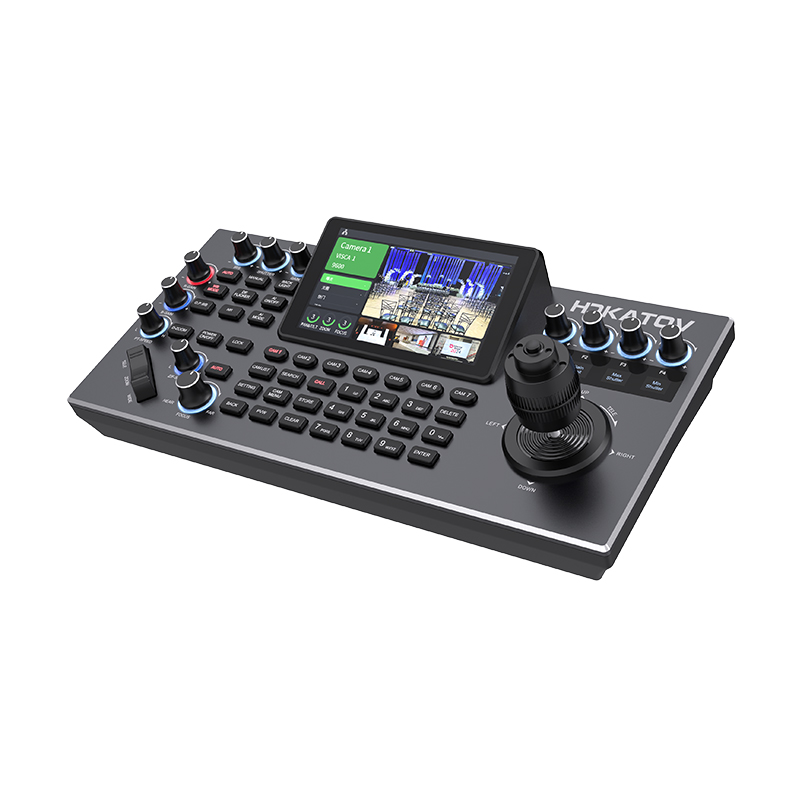

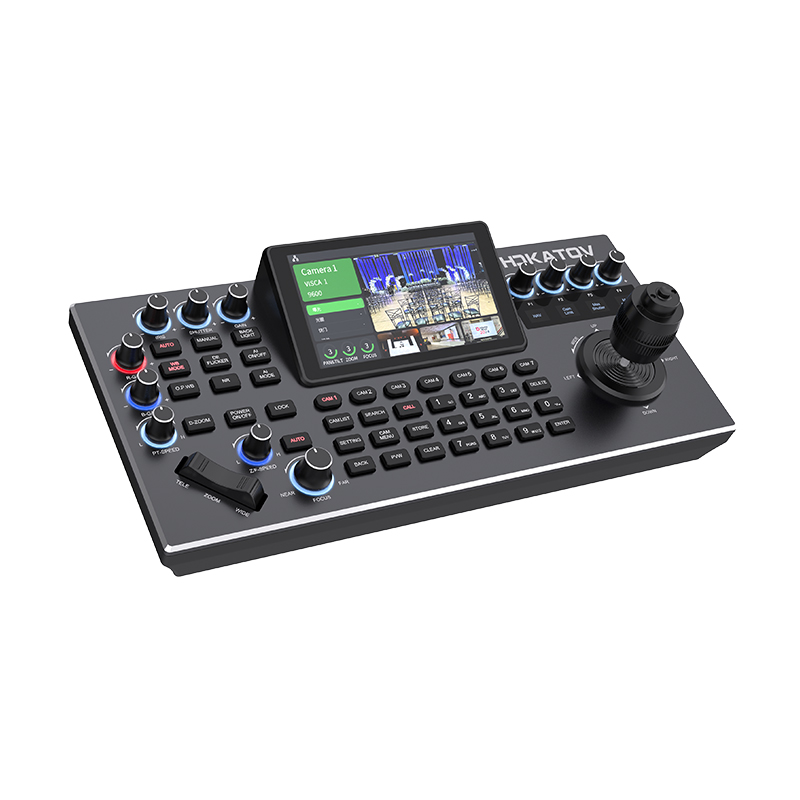

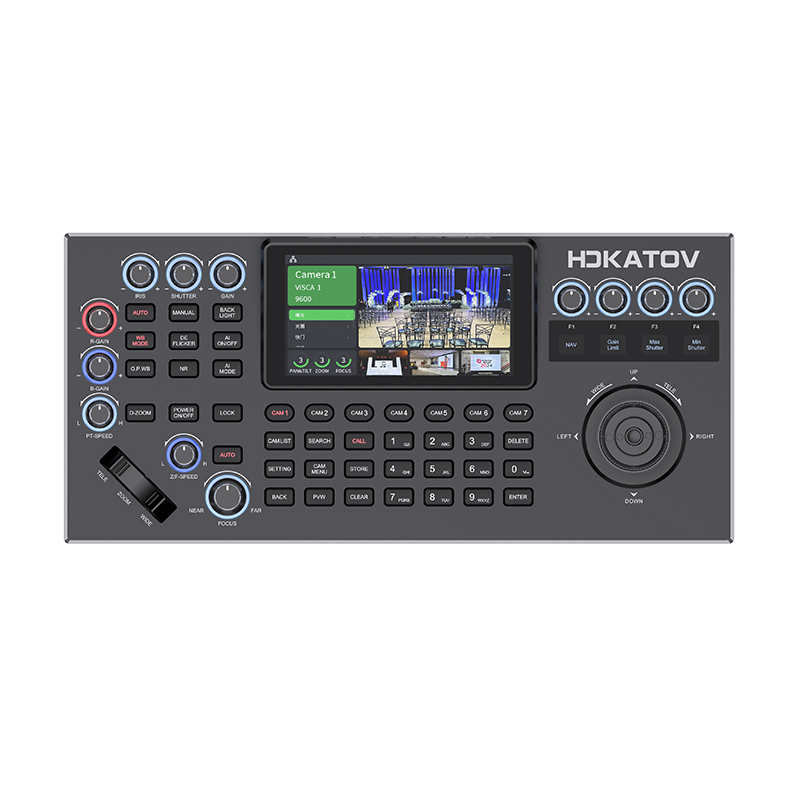

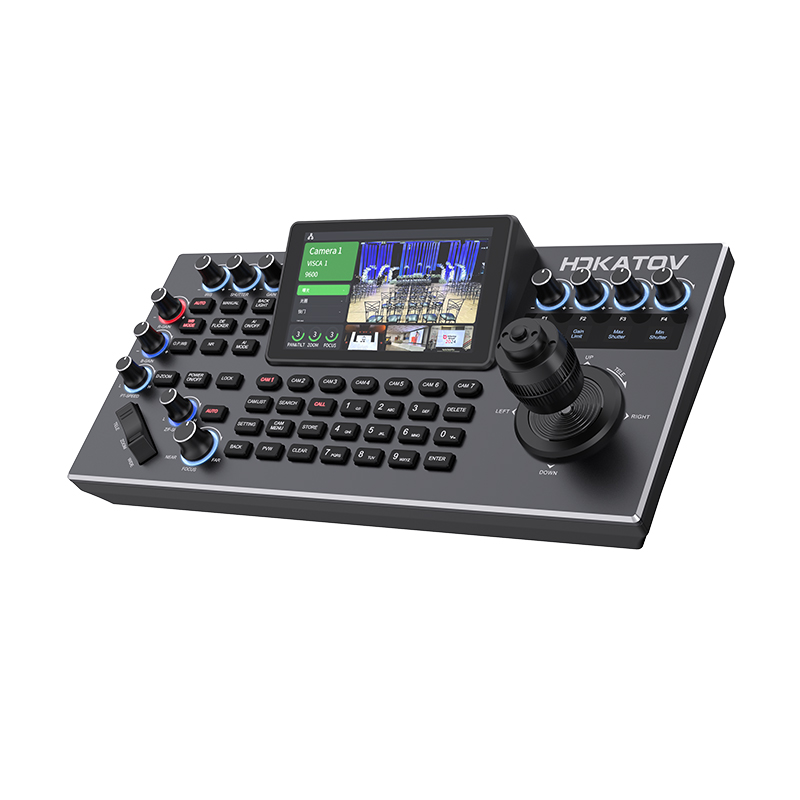

Kato-Vision HDKATOV 4D Keyboard Control Joystick Confer Controller Video Camera Switcher PTZ NDI Camera for Live Streaming
This product is compatible with the Panasonic protocol
- Real-time PVW
- Buttons Lock Via one Click
- Cameras Selection Shortcuts
- Multiple Control Protocols
- Remote Control Menu
- Abundant Interfaces
- Blacklight Silicone Buttons
- External Tally Interface
- Customizable Knob Function
Built in 5.5 Inch Color Screen
Support real-time preview of the current camera feed through streaming protocols (NDI | HX2 and RTSP only), streaming supports up to 4K30fps ultra-high-definition video streams, along with camera preset image previews.
Support HDMI Output for Large-screen Display
Output the current camera feed to a monitor in real-time through the HDMI interface, supporting up to 4K30fps ultra-high-definition resolution.
Four-dimensional Precise Joystick + Three-dimensional Calibrated Knob
Adjust key camera parameters such as white balance, exposure, focus , and zoom.
Supports 7 Shortcut Keys for Camera Selection
It is possible to quickly se up 7 shortcut keys for cameras as needed and support saving information for up to 1000 cameras.
New User Interface (UI) Operation Interface
Intuitively display camera parameters, provide real-time camera feed preview, and offer camera preset image previews, with the flexibility to customize the interface style as desired.
White and Red Backlight Silicone Buttons
High-quality silicone, excellent touch, support white and red back-light so it can be operated smoothly in a low-light environment, support letters and common characters input and other operations such as editing camera's name and address.

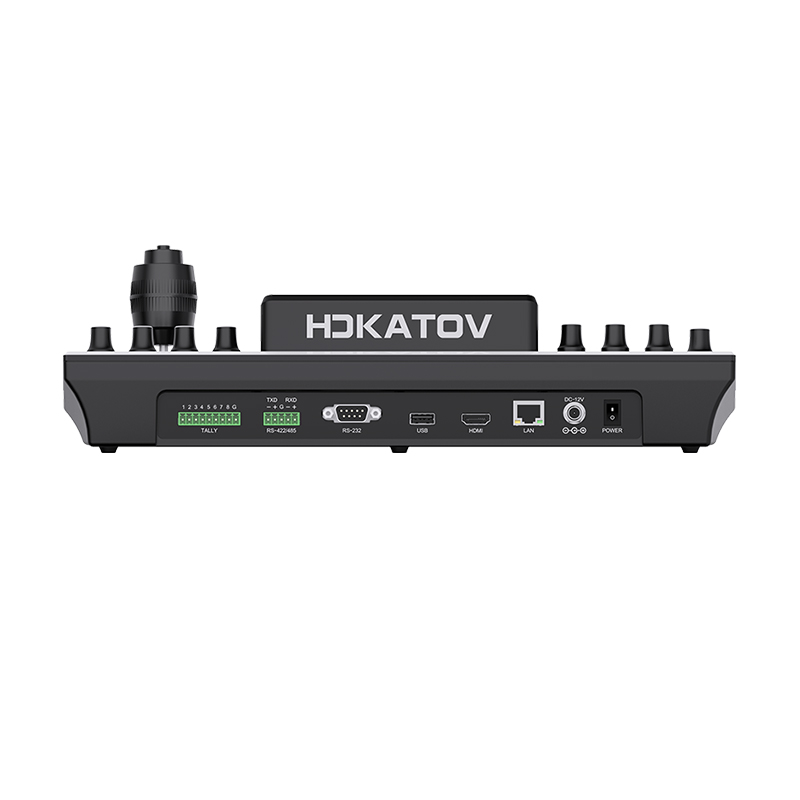

Abundant Interfaces, Multiple Connectivity Options
External RS-232, RS422/485 serial ports, HDMI, and RJ45 network interfaces, the network interface supports Power over Ethernet (PoE) functionality, reducing wiring complications.
External Tally Interface
Supports up to 7 Tally channels.
Supports Customizable Knob Function
Supports customizing knobs for F1, F2 , F3 , and F4, with an LCD screen below each knob displaying its function, allowing users to set the optimal operation function as needed.
Multiple Control Protocols
Supports VISCA, VISCA over IP, VISCA TCP, PELCO P/D, ONVIF, and NDI (optional) control protocols, with automatic protocol recognition.
