Bolin RANGE

MFR  RANGE

EAN  6973775122656

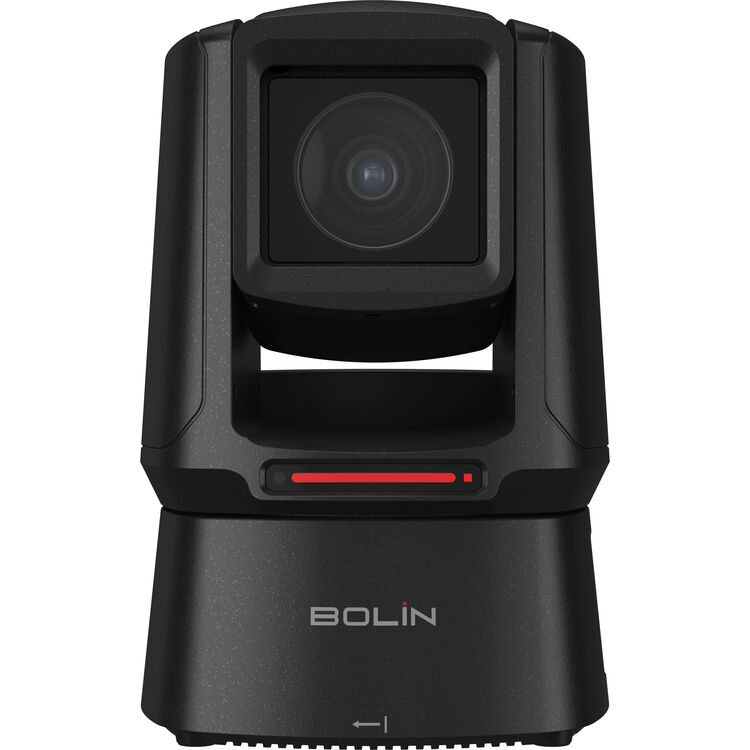

Bolin RANGE 4K60 NDI High-Bandwidth Indoor/Outdoor 1/1.8" STARVIS 2 CMOS Sensor PTZ Camera, zoom 25x, 3840x2160 (Black)

- IP65 Waterproof Design
- 8.4MP 1/1.8" Sony CMOS Sensor
- Up to UHD 4K60, 12G-SDI, HDMI, IP, UVC
- 3-Axis Image Stabilization
- NDI|HX3, SRT, RTSP/RTMP, ONVIF Streaming
- Wi-Fi Control/Stream, Preview LCD Screen
- 25x Optical Zoom, 16x Digital Zoom
- Multiple Simultaneous Live Streams
- FreeD, Open API, SD Card Recording
- Stereo Audio I/O, PoE++ Support

Add high-quality video capture to your studio, outdoor security, or event production with the Range All-Weather 4K60 PTZ Camera with 25x Optical Zoom from Bolin Technology.
This feature-packed weatherproof PTZ camera outputs up to UHD 4K60 via simultaneous 12G-SDI, HDMI, UVC, and NDI/IP multi-streaming.
It features a 1/1.8" CMOS sensor with 8.4MP image capture, a 25x optical zoom, ultrafine movement, microSD recording, and image stabilization.
This model also supports global NDI transmission using full NDI and NDI|HX3, allowing the camera to fit right into an existing NDI network.

- 4K60 Professional Video: True 4K60 video delivers sharp detail and fluid motion, keeping fast-moving subjects clear in live production environments.
- Advanced ISP: Advanced image processing optimizes exposure, focus, and white balance, delivering natural color, balanced images, and consistent quality.
- 1/1.8" Sony Sensor: A Sony image sensor delivers sharp detail and natural color reproduction, supporting consistent, high-quality video across productions.
- 30X Zoom: A 30X zoom range allows flexible framing from wide establishing shots to tight close-ups without sacrificing image quality.
- Low Light Performance: A sensor optimized for low-light environments helps maintain clear images and natural color even in darker production settings.

Timecode Synchronization
Built-in timecode support allows the camera to synchronize with other cameras and production equipment.
By aligning timecode across devices, operators can maintain accurate timing during multi-camera productions and complex broadcast workflows.
This ensures video and audio remain properly aligned while simplifying synchronization across the production system.

Lip Sync Adjustment
The camera is factory calibrated to ensure audio and video remain properly synchronized out of the box.
Built-in lip sync adjustment allows operators to fine-tune audio timing when external equipment introduces processing delays.
This helps maintain natural alignment between sound and on-screen action, ensuring voices and movements remain properly matched throughout production.

Cropped Image Output
Output a user-defined cropped region of the main image through the SDI and/or IP feeds, providing additional framing options from a single camera.

One Cable Solution
A 1Gb Ethernet port with PoE++ support delivers power, control, and network connectivity through a single cable, simplifying installation.

Power External Devices
The camera provides up to 12V, 2A of power output to run external devices such as wireless transmitters or other connected devices.

High-Precision Brushless Motors
Brushless motors deliver smooth, precise camera movement with powerful performance, fast acceleration, and responsive speed while maintaining consistent reliability over time.


- PTZR 4-Axis Movement
- Precise FreeD Production
- 9-Axis Image Stabilization
- Slow and Fast Movement


Ultra Fine Movement Control
UltraFine Movement Control expands PTZ positioning to 255 control steps, far beyond the typical 24-step standard used by most cameras.
This increased precision allows operators to achieve smoother, more refined camera movement and more accurate positioning.
The result is more controlled motion and subtle adjustments that are especially valuable in broadcast, studio, and live production environments where precise framing matters.

9-Axis Image Stabilization
Gyro sensors detect environmental movement, allowing the camera to automatically adjust its pan, tilt, zoom, and roll to maintain a stable image.
Even if the camera itself moves, Range helps keep the shot steady and usable in real-world production environments.

ZDP - Zero Deviation Positioning
Zero Deviation Positioning keeps the camera precisely aligned so shots remain consistent over time.
If the camera head is bumped or physically moved, the system automatically corrects the position and returns the camera to its intended framing.
