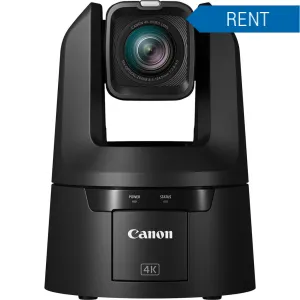

RENT CR-N700 A.Tracking Lite B - Canon

Video camera
Image sensor: 1.0 type (1 ") single plate CMOS sensor
Effective Pixels: Approx.8.29 megapixels (3840 x 2160)
Lens: 15x optical zoom, 9-blade iris diaphragm
Optical zoom: 15x optical zoom (30x with advanced zoom)
Digital Zoom: 20x digital zoom
Focal length:
8.3 - 124.5mm, f / 2.8 - 4.5,
35mm equivalent focal length: Approx.25.5 (wide) - 382.5mm (telephoto)
Field angle
Horizontal: 73.0 ° (wide angle) - 5.7 ° (telephoto)
Vertical: 45.2 ° (wide angle) - 3.2 ° (telephoto)
Minimum illumination of the subject
Approx.3.0 lux (with 59.94 Hz frame rate, 1/60 s shutter speed, 59.94P frame rate, and 21 dB gain)
Approx.2.5 lux (with frame rate of 50.00Hz, shutter speed of 1/50 s, frame rate of 50.00P and gain of 21dB)
Shutter speed: 1/3 - 1/2000 s (specific values depend on frame rate and frame rate)
Iris: Manual / automatic opening
Gain: -6.0dB - 36.0dB
ND filter: Integrated (Off, 1/4, 1/16, 1/64), motor driven
Night mode (infrared cut filter disabled): Yes
White balance: AUTO (AWB), Set A, Set B, preset settings (daylight: 5600 K1, tungsten lamp: 3200 K2),
Control dial
Focus Modes: Manual, AF-Boosted MF, Continuous AF, Face AF, Tracking
AF type: Dual Pixel CMOS AF, Contrast AF
Detection: face detection, eye detection
Minimum focusing distance: 1cm with wide angle, 60cm across the entire zoom range
Gamma: BT.709 Normal, BT.709 Wide DR, BT.709 Standard, Canon Log 3, PQ, HLG
Pan and tilt:
Pan operation range: horizontal ± 170 °
Pan operating speed: 0.1 ° to 100 ° / s
Tilt operating range: vertical -30 ° - + 90 °
Tilt operating speed: 0.1 ° to 100 ° / s
Video transmission protocol: Canon XC, RTSP / RTP, NDI3 | HX, RTMP / RTMPS, standard communication (serial), standard communication (IP), SRT, FreeD
Preset: Number of preset stations: max. 100 (including starting position)
Interface
Communications control: LAN, Wi-Fi, serial, IR
Network terminal: LAN x 1, RJ45, 1000Base-T
SDI OUT terminal:
OUT 12G-SDI terminal
BNC jack (output only) x 1, 0.8 Vp-p / 75 O,
compliant with SMPTE ST 2082, 2081, 424, 425, 292, 259, 299, 272
Embedded audio, timecode (VITC / LTC)
OUT 6G-SDI terminal: No
OUT 3G-SDI terminal:
BNC jack (output only) x 1, 0.8 Vp-p / 75 O,
compliant with SMPTE ST 424, 425, 292, 259, 299, 272
Embedded audio, timecode (VITC / LTC)
Genlock Terminal: BNC Jack (Also works as SYNC OUT jack)
TIME CODE terminal: BNC jack (for input / output)
HDMI OUT terminal: HDM connector (type a), both video and audio are output only
RS-422 terminal: RJ45 connector x 1
INPUT 1 / INPUT 2 terminals:
3-pin XLR jack (balanced) ((1) ground, (2) hot, (3) cold), two lines
Sensitivity (MIC): -60 dBV (manual volume center, full scale -18 dB)
Sensitivity (LINE): +4 dBV (manual volume center, full scale -18 dB)
Power supply voltage: 48V DC (Tone resistance: 6.8kO)
MIC terminal:
diameter 3.5 mm stereo mini jack (unbalanced, supports plug-in power)
Sensitivity (MIC): -72 dBV (manual volume center, full scale -18 dB)
Sensitivity (LINE): -10 dBV (manual volume center, full scale -18 dB)
Power supply voltage: 2.4V DC (polarization resistance: 2.2kO)
USB terminal: No
Diet
PoE: PoE ++ power via LAN connector (IEEE802.3bt compliant)
- PoE and PoE + cannot be used
External power source: 12V DC
Energy Consumption:
PoE ++ input: Approx.37.4W4 / 1.2A max. (body only)
DC Input: Approx.36.7W / 3.5A max. (body only)
Dimensions (W x H x D): Approx. 200 × 269 × 208 mm (excluding protrusions)
Weight: Approx.4.4 kg [body only]
