DC-S5M2XWE - PanasonicEAN  5025232951895

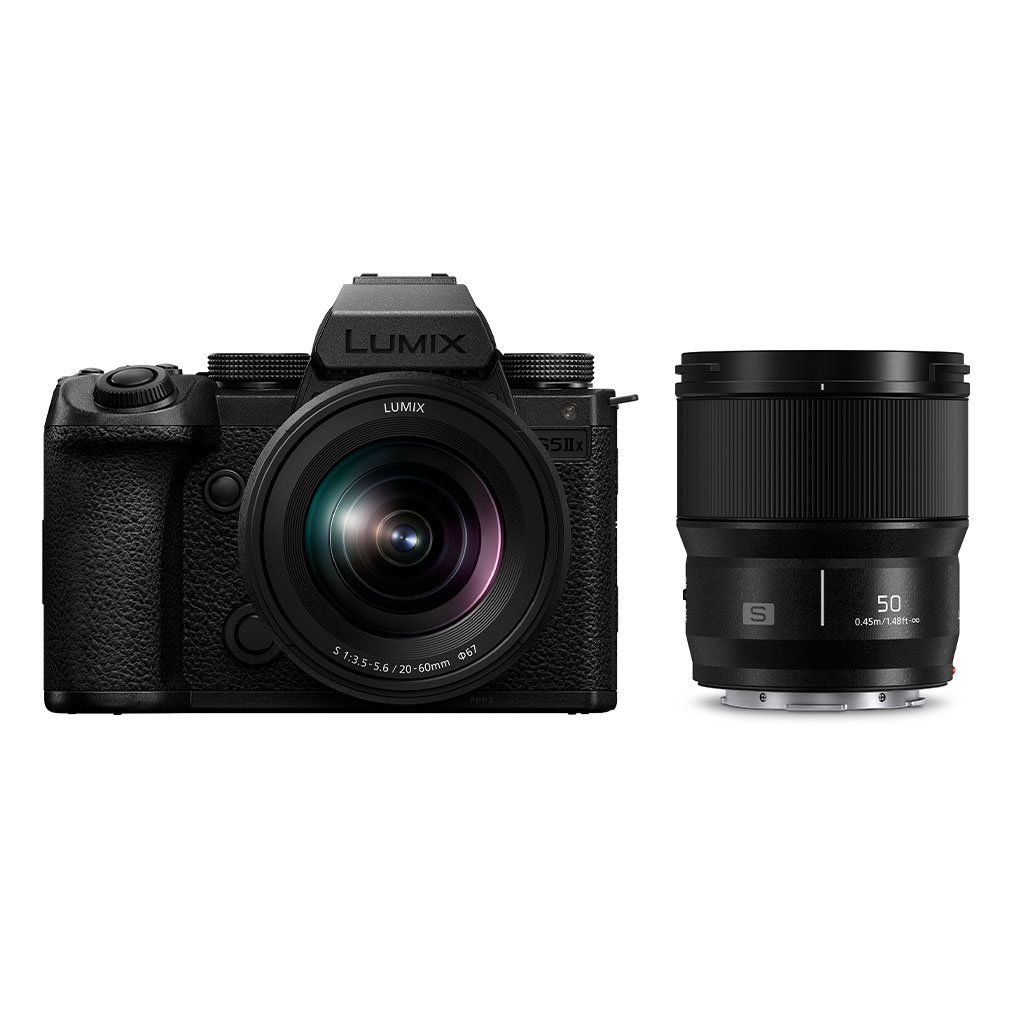

Camera 24,2 MP C4K/4K 60p/50p 4:2:2 10 bit kit (S5M2X + S-R2060 + S-S50)

24.2MP Full-Frame CMOS Sensor
6K30p 4:2:0 10-Bit Video Recording
C4K/4K60p 4:2:2 10-Bit Unlimited
3.68m-Dot 0.78x-Magnification OLED LVF
3.0" 1.84m-Dot Tilt/Free-Angle Touch-LCD
779-Point Phase-Detection AF System
5-Axis Sensor-Shift Image Stabilization
ISO 100-51200, up to 30 fps Shooting
Dual UHS-II SD Slots, Wi-Fi & Bluetooth
Weather-Sealed Construction


Designed for pro content creators needing strong stills, sophisticated video options, and livestreaming functionality, the second-generation Panasonic LUMIX S5 IIX Mirrorless Camera is equipped with a host of new features to bring your vision to life. Benefitting from a new sensor design and an updated processing engine with L2 technology, the S5 IIX is the first LUMIX camera to offer Phase Hybrid AF for fast and precise autofocusing performance. Making full use of the 24.2MP sensor and enhanced processor, this camera records 6K video for up to 30 minutes, while unlimited 4K video capture is available as well. Optimized for video, the S5 IIX is also equipped with a new Active I.S. system, which supports walking shots to further enhance image stabilization while recording video.

Unique to the advanced S5 IIX, this model comes pre-loaded with sophisticated video features benefitting the professional user. These include HDMI RAW video data output, USB-SSD recording, ALL-Intra recording, and ProRes recording. Livestreaming functionality is standard as well, and the S5 IIX offers Wireless IP streaming, USB tethering to smartphones, and Wired IP streaming. Additionally, this camera is the first LUMIX camera to feature a refined and stealthy all-black design.


New Sensor and Processing Engine
Featuring an upgraded full-frame 24.2MP CMOS sensor and an updated image processing engine with L2 technology, the S5 IIX's sensor incorporates a newly-developed Phase Hybrid AF system ? a first for LUMIX-series cameras ? providing 779 phase-detection points for significantly-improved subject tracking. Balancing high sensitivity and a wide dynamic range, the sensor provides a useful ISO 100-51200 range, which can be expanded to ISO 50-204800 for working in a variety of lighting conditions. Well-equipped for action and fast-moving subjects, the S5 IIX also enables full-res shooting at up to 9 fps with the mechanical shutter and up to 30 fps with the electronic shutter. Additionally, the S5 IIX utilizes sensor-shift stabilization technology and features a High Resolution mode to capture and compile eight separate exposures to create a single 96MP raw or JPEG file. Suitable for static subjects and when working on a tripod, this mode creates a more highly detailed and color accurate image than a single shot alone can produce and produces an image with a 12000 x 8000-pixel resolution.
6K and 4K Video Recording
In addition to stills, the S5 IIX sports highly capable video recording assets. Full-frame 6K30p recording with 4:2:0 10-bit color can be captured for up to 30 minutes, while unlimited video recording is possible when filming in DCI and UHD 4K60p 4:2:2 10-bit mode. The camera supports 120p video capture for videographers who want to create high-resolution slow-motion video, and RAW HDMI output is possible via an optional license upgrade. V-Log has been pre-installed on this camera and is used to capture a flat, neutral gamma curve and an equivalent 14+ stops of dynamic range provides precise control of color data in post-production, as well as seamless editing with footage shot with VariCam cameras.

Borrowing from Panasonic's broadcast line of video cameras, Dual Native ISO helps to achieve a balanced combination of low noise and high sensitivity to better suit working in a variety of lighting conditions. Two dedicated circuits are provided for each pixel: a Low ISO circuit provides base sensitivities of ISO 100 for normal use, ISO 640 when V-Log is applied, ISO 400 when HLG is applied, and ISO 200 when Cinelike D2/V2 is applied, a Low Noise circuit provides base sensitivities of ISO 640 for normal use, ISO 4000 when V-Log is applied, ISO 2500 when HLG is applied, and ISO 1250 when Cinelike D2/V2 is applied.



Pro-Level Video Features

Offering enhanced performance and usability, the S5 IIX provides HDMI RAW video data output.

For videographers who want to improve efficiency in data backup and post-processing, recording and playback is supported using an external SSD via USB. ALL-Intra recording and ProRes recording are also supported.
Designed for modern-users and content creators, the camera allows for Wireless IP streaming, USB tethering to smartphones, and Wired IP streaming.


Phase Hybrid AF System
Dual I.S. 2 with Active I.S.
