Aida HD3G NDI 200 | POV Cameras | Micro POV & Webcam

Aida Full HD NDI|HX/IP/SRT/3G-SDI PoE & IP Control POV Camera, 1/2.8" Progressive Scan CMOS, Resolutions up to 1080p60

- 1/2.8" Progressive Scan CMOS Sensor
- Resolutions up to 1080p60
- C/CS-Mount 4mm HD Lens
- NDI|HX & 3G-SDI Connectivity
- Web UI for Streaming to Social Media

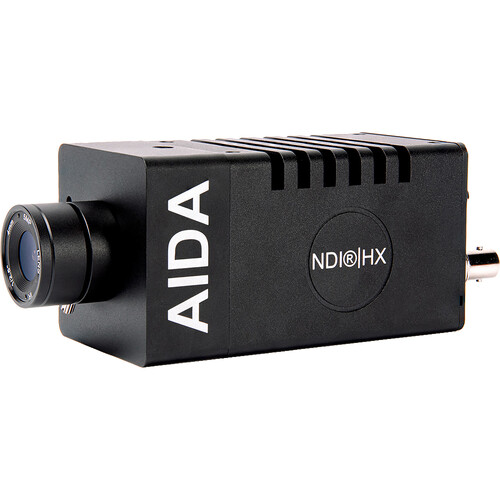

The HD3G-NDI-200 Full HD NDI|HX/IP/SRT/3G-SDI PoE & IP Control POV Camera from AIDA Imaging provides an effective solution that facilitates any SDI workflow with IP connectivity and NDI.
An optional SDI cable and a standard Ethernet cable are all you will need for easy NDI|HX and 3G-SDI connectivity.
The unit's support for PoE+ technology enables power, control, and video to be sent over a single Cat 5e+ cable, further simplifying your setup.
The HD3G-NDI-200 comes with top and bottom 1/4"-20 mounting solutions.

General
Control: OSD Button or Web UI
Image Sensor: 1/2.8" Progressive CMOS
Control Protocol: VISCA RS485, VISCA Over IP
Lens: C/CS-Mount 4 mm HD Lens
Resolutions:
1080p: 60/59.94/50/30/29.97/25/24/23.98 fps
1080i: 60/59.94/50 fps
720p: 60/59.94/50/30/29.97/25
IP Rate: 1920 x 1080 at 3-60 fps, 1280 x 720 at 3-60 fps, 1024 x 576 at 3-60 fps, 620 x 360 at 3-60 fps
Streaming: RTSP, RTMP
Color Spaces: 4:2:2 (YCbCr) 10-Bit
Effective Pixels (H x V): 1920 x 1080 (Pixel Size: 2.9 µm Horizontal x 2.9 µm Vertical)

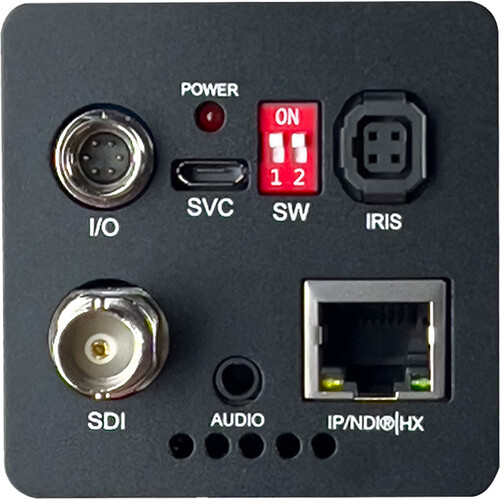

Inputs/Outputs
Video I/O: 1x BNC (3G-SDI) Output
Audio I/O: 1x 1/8" / 3.5 mm TRS Input
Other I/O: 1 x RJ45

Power
Power Source: AC Adapter with Power Brick (Included), PoE (Built-In)
DC Input Power: 9 to 15 VDC

Physical
Mounting: 2x 1/4"-20 Thread
Color: Black
Operating Conditions: 32 to 104°F / 0 to 40°C
Dimensions: 5 x 2.1 x 2.1" / 127 x 54 x 54 mm

1x HD3G-NDI-200
1x I/O Breakout Cable
1x 12 VDC Power Supply with Plug Adapters
1x USB-B to USB-A Cable
1x C-Mount Cap Adapter
1x Sensor Cap

HD3G-NDI-200
MFR HD3G-NDI-200
EAN 0783970765147
