HD3G-IPC-100A - AidaEAN  0783970765161

Micro POV & Webcam > POV Cameras
EAN:0783970765161
€ 374,00 + VAT
€ 456,28 VAT Included
Adcom - Aida
New
Available in 15 days

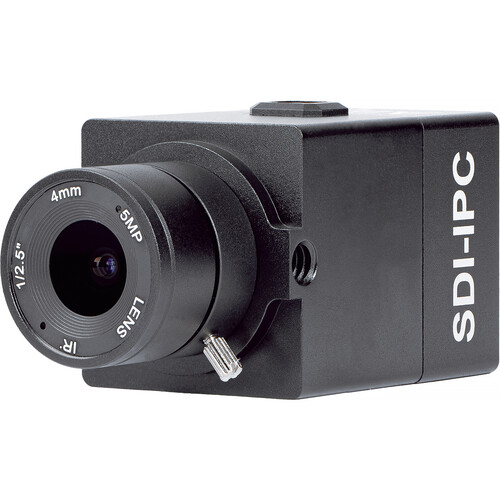

Aida Full HD 3G-SDI POV Camera with IP Control, 1/2.8" Sony Progressive CMOS, 4mm CS-Mount Lens, Resolutions up to 1080p6

The HD3G-IPC-100A Full HD 3G-SDI POV Camera from AIDA Imaging boasts IP control with a signature compact design, affordable pricing, and exceptional image quality.
The versatile camera utilizes a 1/2.8" Sony progressive CMOS sensor and a 4mm CS-mount lens that achieve an 80° angle of view and image resolutions up to 1080p60.

Full VISCA over IP control across any network eliminates the need for outdated RS-485 wiring.
This camera is part of the AIDA Imaging SDI IPC series, which integrates seamlessly with both new and existing 3G-SDI setups, offering complete control over every aspect.


- Full-HD 1/2.8" Sony progressive scan CMOS sensor capable of up to 1080p60 through 3G-SDI
- VISCA over IP compatible for hardware and software solutions using that protocol. (VISCA UDP, Sony VISCA over IP)
- Versatile designs with tripod mounts for easy and unique shot creation
- PoE+ adaptable with adapter
- Small form-factor and rugged design make all video streaming applications possible
- Perfectly suited for indoor or outdoor shots for new or existing workfows
General
Image Sensor: 1/2.8" Sony Progressive CMOS Sensor (5.640 x 3.216 mm)
Effective Pixels (H x V): 1920 x 1080
Pixel Size: 2.9 (H) x 2.9 µm (V)
Resolution: 1080p, 1080i, 720p
Frame Rate:
1080p: 60/59.94/50/30/29.97/25/24
1080I: 60/59.94/50
720p: 60/59.94/50
Color Spaces: 4:2:2 (YCbCr) 10-Bit
Minimum Illumination: 0.2 Lux (Day), 0.1 Lux (Night)
White Balance: Auto & Manual (9000 to 11,000K)
Lens: 4mm CS-Mount Lens
Field of View: 80° Field of View
Control Protocol: VISCA over IP

Inputs/Outputs

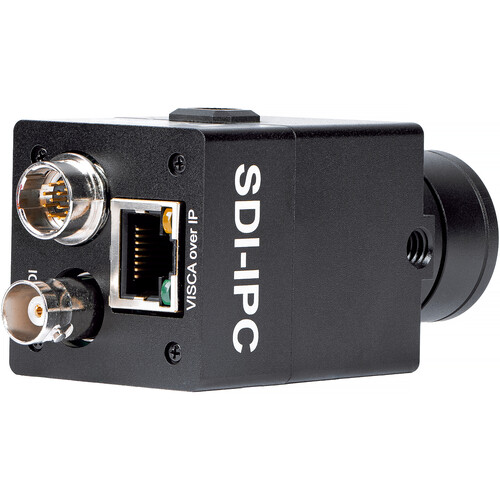

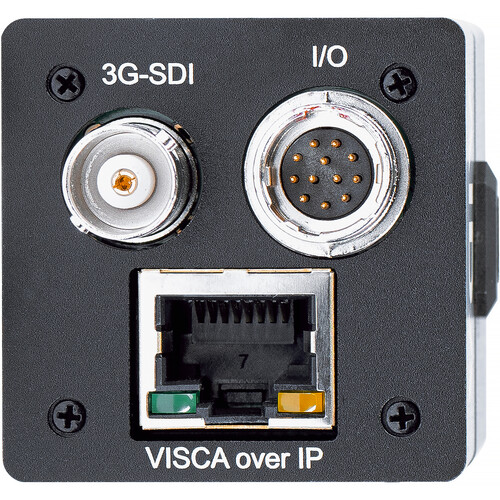

Video I/O: 1x BNC (3G-SDI) Output
Audio I/O: 1x 1/8" / 3.5 mm TRS Line Input

Power
Power Source: AC Adapter with Power Brick (Included), PoE (Included)
DC Input Power: 12 VDC
Power Consumption: 6 W

Physical
Mounting:
- Top: 1x 1/4"-20
- Bottom: 1x 1/4"-20
Color: Black
Operating Conditions: 14 to 122°F / -10 to 50°C
Dimensions: 3 x 2" / 7.6 x 5.1 cm
1x Camera POV Full HD 3G-SDI HD3G-IPC-100A
1x Adattatore PoE
1x Alimentatore 12 VDC con Adattatori Plug
