Kinefinity VISTA (ARRI PL) | Full Frame sensor

Kinefinity Full-Frame 6K Digital Cinema Camera, 4" 1080p OLED Touchscreen, Built-In 220GB SSD (ARRI PL)

- 6K Full-Frame CMOS Sensor
- Up to 6K50 FF, UHD 4K100 Super 35 Video
- ProRes 422 HQ up to 6K50, UHD 4K120
- ARRI PL Mount, 14-Stop Dynamic Range

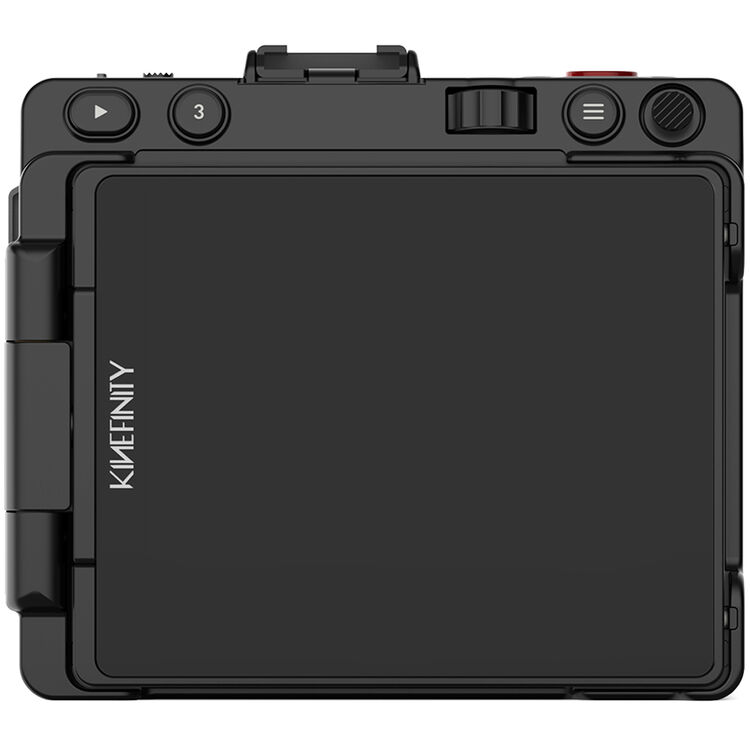

- 4" 1080p OLED Touchscreen
- OLPF UV & IR Cut, 10-Bit H.265 Recording
- KineLOG3, Built-In & Custom LUTs
- Built-In 220GB SSD
- Single CFexpress Type B Card Slot
- Dual Internal & External Recording

Compact Full-Frame 6K Digital Cinema Camera
Offering full-frame performance in a compact, more affordable form, the ARRI PL-mount VISTA Full-Frame 6K Digital Cinema Camera from Kinefinity supports up to 6K50 frame rates in full frame and up to UHD 4K120 in Super 35.
It comes with a user-interchangeable ARRI PL mount and features a flip-out 4" OLED touchscreen display, assignable buttons, OLPF filter, and flexible media options.

CMOS Image Sensor
The full frame, 6K CMOS image sensor supports up to 14 stops of dynamic range for rich, nuanced imagery.
An integrated OLPF (optical low-pass filter) includes UV and IR cut filters for blocking unwanted wavelengths.

Resolution, Frame Rates, and Color
Recording options include ProRes 422 HQ up to 6K50 and UHD 4K120 for creating beautiful slow-motion sequences.
Color science features include KineLOG3, built-in Rec. 709, and neutral LUTs. Use custom LUTs for monitoring or for baking in your color palette.

Flexible Recording Media
- The VISTA FF 6K camera offers flexible recording options, including a built-in 220GB SSD card.
- It also provides a single CFexpress Type B card slot.
- Dual recording is supported using the internal storage and the card slot.

Imaging

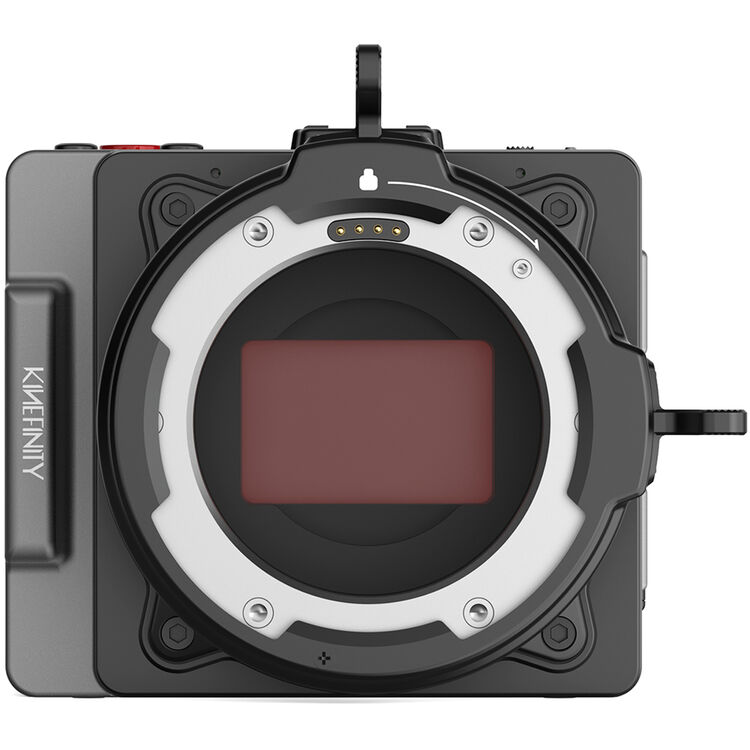

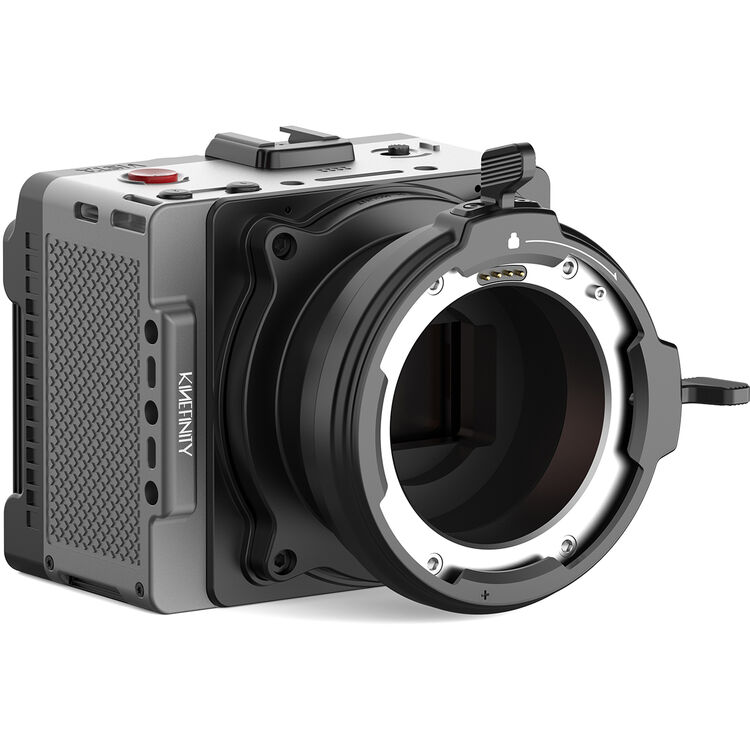

Lens Mount: Interchangeable Mount with Included ARRI PL
Lens Communication: Yes
Image Sensor: 36 x 24 mm (Full-Frame) CMOS

Exposure Control
Shutter Type: Electronic Rolling Shutter
Shutter Angle: 0.7 to 358°
ISO/Gain Sensitivity: Dual Base: 800 / 5120 | Native: 250 to 2560 (3200 to 20,480 Extended)
Advertised Dynamic Range: 14 Stops

Focus
Focus Mode: Automatic, Manual Focus

Video Capture
Internal Recording:
H.265/ProRes 422/ProRes 422 HQ/ProRes 422LT 10-Bit
3840 x 2160 up to 100 fps
3840 x 2160 up to 120 fps
Video Output:
via HDMI / USB
6016 x 3984
3840 x 2160 up to 120 fps
Fast-/Slow-Motion Support: Yes
Gamma Curve: KineLOG3, Rec709
Built-In Microphone: Stereo
Audio Recording: 2-Channel, 16-Bit at 48 kHz via LPCM Audio
IP Streaming: Yes

Interface
Media/Memory Card Slot: Single Slot: CFexpress Type B
Internal Storage: 220 GB
Video I/O:
- 2x HDMI 2.0 Output
- 1x USB-C 2.0 Output
Audio I/O:
- 1x 1/8" / 3.5 mm TRS Stereo Microphone Input
- 1x 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O:
- 1x LEMO 2-Pin (10 to 20VDC) Input
- 1x LEMO 9-Pin Output
Other I/O:
- 1x USB-C (USB 2.0) Input (Shared with Power Input)
- 1x USB-C Viewfinder Output (Shared with Video Output)
Wireless: Wi-Fi 6 (802.11ax)
Mobile App Compatible:
Yes: iOS Only
App Name: Kine
Functionality: Remote Control, View Live Feed

Monitor
Display Type: Articulating 4" Touchscreen OLED
Resolution: 1920 x 1080

Power
Battery: Sony L-Series
Power Consumption: 7.5 W

General
Shoe Mount: 1x Cold Shoe
Tripod Mount: 1/4"-20 Female | 3/8"-16 Female
Accessory Mounting Thread: 12x 1/4"-20
Materials: Aluminum
Operating Conditions: 32 to 104°F / 0 to 40°C
Dimensions (W x H x D): 4 x 3.4 x 2.6" / 101 x 87 x 65 mm (Without Protrusions)
Weight: 1.3 lb / 600 g (Body Only)

1x VISTA Full-Frame 6K Digital Cinema Camera (ARRI PL)
1x ARRI PL Lens Mount
1x Body Cap

VISTA (ARRI PL) - KinefinityEAN 757200089597
