Description

DPA Microphones 4061 CORE+ Low-Sensitivity Omni Lavalier Microphone with 3-Pin LEMO Adapter for Lectrosonics SSM & Sennheiser SK Transmitters (Black)

- For Stage, Film, TV, and Presentation
- Omnidirectional for Consistent Levels
- For Lectrosonics Transmitters with LEMO
- CORE+ for No Distortion up to 133 dB SPL
- For Speech/Vocals up to 134 dB SPL RMS
- IP58-Certified Dust & Moisture Resistant
- CORE+ Increases Dynamics & Reduces Noise
- Requires 5 to 10V or Phantom Power
- Includes Soft- and High-Boost Grids

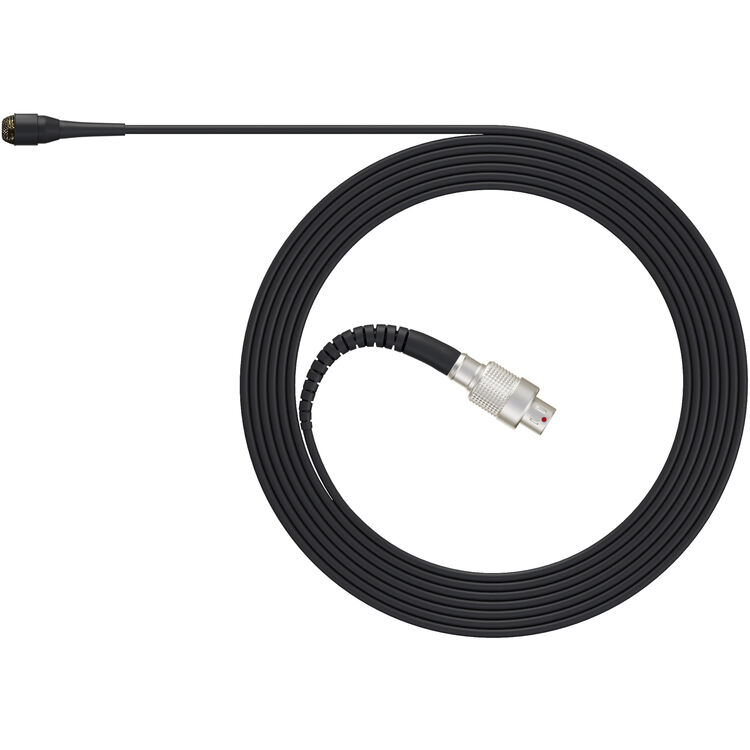

The black DPA 4061 CORE+ is a miniature, moisture-resistant lavalier microphone designed for use with professional wireless systems for broadcast, performance, and theatrical applications. The electret-condenser capsule delivers crisp, clear, and intelligible speech, while the rugged yet unobtrusive design is well suited to the demands of professional live stage work and presentations.

The CORE+ technology in the 4061 delivers a wide dynamic range and almost completely neutralizes distortion at SPLs up to 133 dB, helping to provide clean, crisp, and natural sonic performance, even on loud stages.
Included are two interchangeable capsule protection grids that alter the sonic character of the mic for better results in different placement positions.

The 4061 is wired for low sensitivity, allowing it to handle peak SPLs of up to 137 dB with less than 1% distortion, making it well suited for loud speakers, vocalists, and presenters.
The mic can also be used very effectively to capture instruments?making it a flexible tool for houses of worship and live event productions.
The 4061 CORE+ is powered by 5 to 10V plug-in power from a wireless microphone transmitter.

Technical Detail

Microphone
Polar Pattern: Omnidirectional
Included Tone/Pattern Caps: +4 dB Bright, +8 dB Very Bright

Performance
Frequency Response: 20 Hz to 20 kHz
Maximum SPL:
- 134 dB (RMS, 1% THD)
- 137 dB (Peak, 1% THD)
- 144 dB (Peak, 10% THD)
Sensitivity: 6 mV/Pa (at 1 kHz)
Dynamic Range: 111 dB (Typical)
Equivalent Noise Level: 26 dB (A-Weighted)

Connectivity
Analog Output Connector: 1x Microlock Female
Cable Length: 5.9' / 1.8 m

Power
Power Sources: Plug-In Power
Operating Voltage: 5.0 to 10.0 V

General
Color: Black
Environmental Resistance: Dust/Water-Resistant to 3.28' / 1 m (IP58)
Dimensions: L: 0.5" / L: 12.7 mm (Microphone)
Weight: 0.26 oz / 7.5 g (with Cable)

In the box

1x 4061-OP-C-B03
1x Microphones DAD9003 MicroLock to 3-Pin LEMO Adapter
1x High-Boost Protection Grid
1x Soft-Boost Protection Grid
