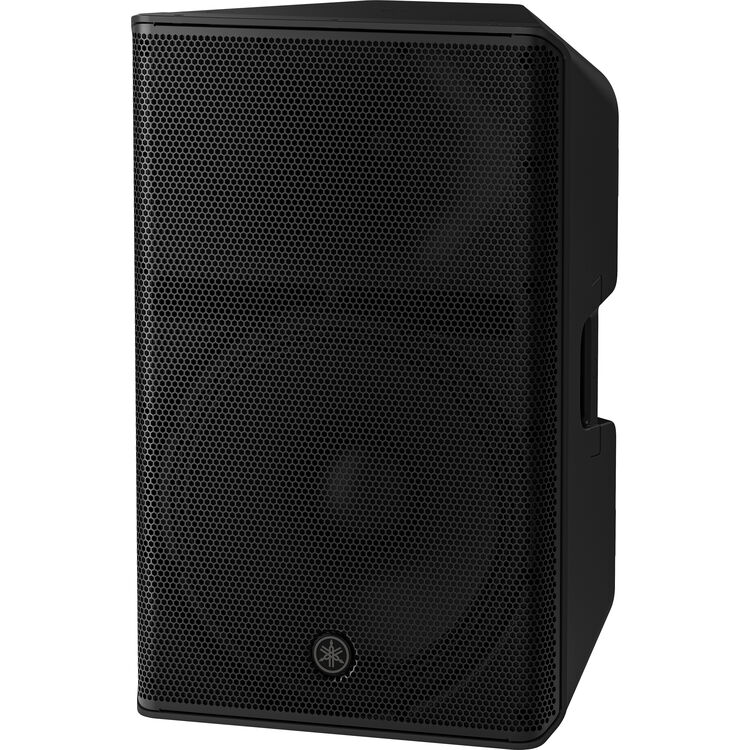

Yamaha CXR15 MKIII
MFR:CXR15MK3
€ 614,00 + VAT
€ 749,08 VAT Included
Available in 15 days
Yamaha 2-way speaker, 1200W, 126 dB SPL, 15" LF + 1.75" HF, 8 ohm, ferrite magnet, 2x parallel SpeakON connectors, M10 rigging points, dual-angle pole mount socket
- For DJs, Live Performances, and Events
- Molded Bass-Reflex ABS Cabinet
- 1200W Peak Power Handling
- 15" LF Driver, 1.75" HF Driver
- Enhanced HF Directivity / LF Response
- 4-Pole speakON I/O
- Supports Yamaha Speaker Processing
- Rigging, Pole, and Floor Monitor Support
- Rubber-Coated Handles
- Symmetrical Design for Mirroring
Ideal for everyone from wedding and event DJs to live venues and rental companies, the Yamaha CXR15 mk3 is the third-generation version of Yamaha's active 2-way loudspeaker, bringing with it refined porting, newly developed transducers, and passive operation with up to 1200W of peak power handling.
With an updated horn an port design, the CXR15 mk3 offers optimized low-end response and high-end directivity.
Enhanced HF Directivity and LF Response
The large-diameter horn secures directivity control across a wide frequency range.
Optimized port positioning also reduces standing wave effects, resulting in smoother and more accurate low-frequency response.
Proprietary High-Durability Driver Units
All CXR mk3 loudspeakers use Yamaha's high-durability custom LF/HF units.
The LF driver provides symmetrical movement for linear bass, while the HF polyimide diaphragm reduces distortion and increases reliability.
The redesigned cabinet also relocates sound ports to optimize airflow and enhance acoustic performance under demanding use conditions, ensuring superior sonic fidelity and outstanding reliability across applications.
Molded Enclosure
Utilizing a lightweight, high-strength, form-injection molded enclosure, the design achieves both weight reduction and attenuation of cabinet resonance that can result in bass loss.
The ergonomically designed enclosure offers not only aesthetic appeal, but also outstanding usability.
Supports Intelligent Processing
When used in combination with Yamaha PX and PC-D Series amplifiers or other compatible signal processors, CXR mk3 series loudspeakers can take full advantage of dedicated speaker processor tuning settings.
Dual-Angle Pole Socket
All CXR mk3 series models features pole mount sockets with both horizontal 0 and 7° down-angle positions, enabling focused coverage for clearer sound delivery to the audience.
- For DJs, Live Performances, and Events
- Molded Bass-Reflex ABS Cabinet
- 1200W Peak Power Handling
- 15" LF Driver, 1.75" HF Driver
- Enhanced HF Directivity / LF Response
- 4-Pole speakON I/O
- Supports Yamaha Speaker Processing
- Rigging, Pole, and Floor Monitor Support
- Rubber-Coated Handles
- Symmetrical Design for Mirroring
Ideal for everyone from wedding and event DJs to live venues and rental companies, the Yamaha CXR15 mk3 is the third-generation version of Yamaha's active 2-way loudspeaker, bringing with it refined porting, newly developed transducers, and passive operation with up to 1200W of peak power handling.
With an updated horn an port design, the CXR15 mk3 offers optimized low-end response and high-end directivity.
Enhanced HF Directivity and LF Response
The large-diameter horn secures directivity control across a wide frequency range.
Optimized port positioning also reduces standing wave effects, resulting in smoother and more accurate low-frequency response.
Proprietary High-Durability Driver Units
All CXR mk3 loudspeakers use Yamaha's high-durability custom LF/HF units.
The LF driver provides symmetrical movement for linear bass, while the HF polyimide diaphragm reduces distortion and increases reliability.
The redesigned cabinet also relocates sound ports to optimize airflow and enhance acoustic performance under demanding use conditions, ensuring superior sonic fidelity and outstanding reliability across applications.
Molded Enclosure
Utilizing a lightweight, high-strength, form-injection molded enclosure, the design achieves both weight reduction and attenuation of cabinet resonance that can result in bass loss.
The ergonomically designed enclosure offers not only aesthetic appeal, but also outstanding usability.
Supports Intelligent Processing
When used in combination with Yamaha PX and PC-D Series amplifiers or other compatible signal processors, CXR mk3 series loudspeakers can take full advantage of dedicated speaker processor tuning settings.
Dual-Angle Pole Socket
All CXR mk3 series models features pole mount sockets with both horizontal 0 and 7° down-angle positions, enabling focused coverage for clearer sound delivery to the audience.
