Sennheiser EW-D SK BASE SET (U1/5)
MFR  508746
EAN  4044155247701

EAN:4044155247701  ·  MFR:508746
€ 474,00 + VAT
€ 578,28 VAT Included
Available in 15 days
EW-D SK BASE SET (U1/5) - Sennheiser
Sennheiser
BUY

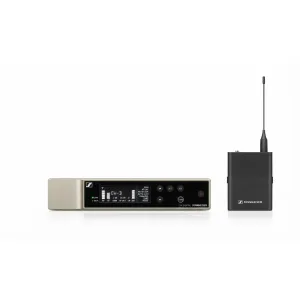

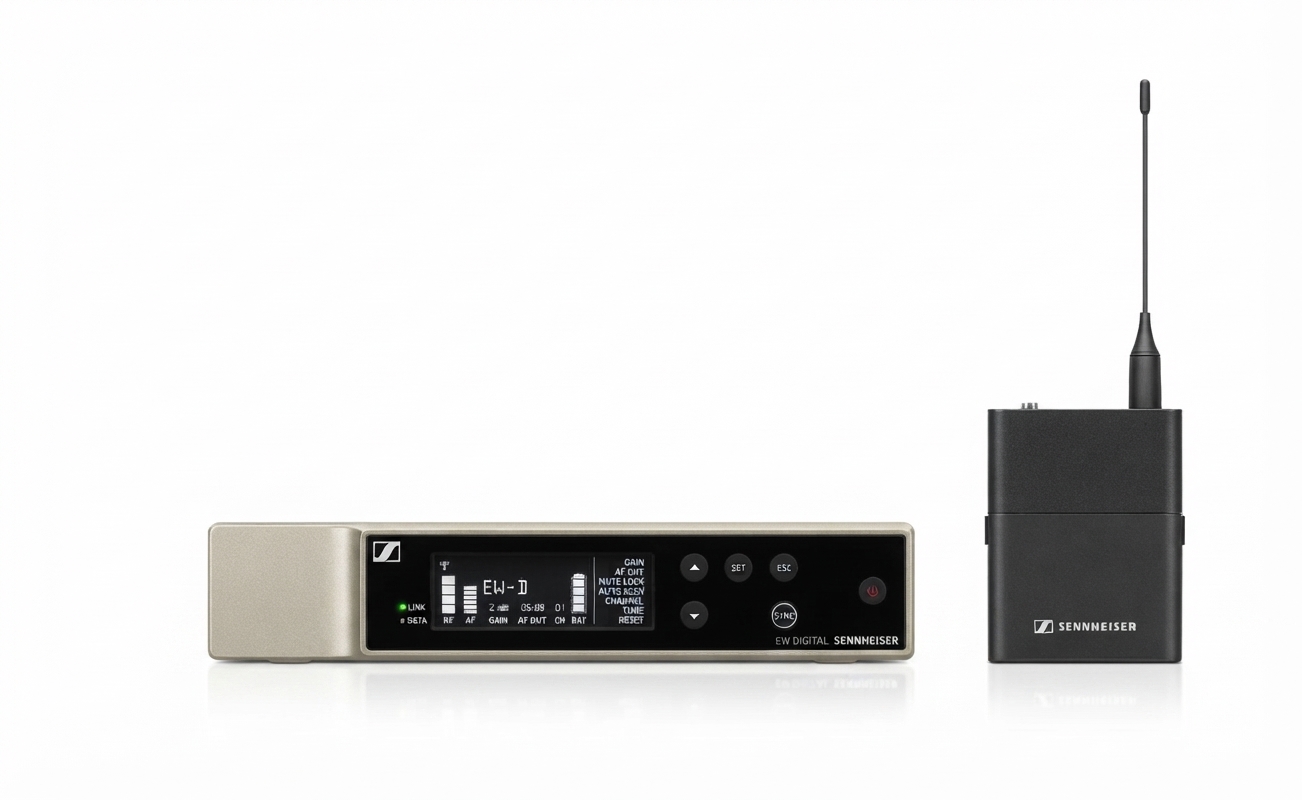

Sennheiser Base Set for digital wireless applications featuring sationary receiver and bodypack transmitter for use with a wide range of Evolution Wireless Digital microphones

- Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
- Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
- Auto scan creates reliable connections with minimal time and effort
- 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
- Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
- 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
- 2,240 selectable frequencies allow for fine tuning
- Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)



Effortless, worry-free wireless
- Full control via Bluetooth using the Smart Assist app.
- Easy setup, monitoring, and troubleshooting—even for beginners.
- Smart algorithms handle frequency selection and syncing, minimizing dropouts and interference.

Rock-solid reliability
- The most reliable UHF connection
- German-engineered build quality
- Pro-grade build quality with uncompromised fit and finish
- Lightweight, rugged transmitters and receivers
- Rack-mountable receivers for pro setups

Pristine sound quality
- Superior clarity via 24-bit resolution, surpassing analog systems.
- Handles quiet and loud sources effortlessly with 134 dB dynamic range.
- Sound feels natural and immediate with ultra-low latency (1.9 ms)
- Evenly spaced frequencies eliminate intermodulation interference
Latency (ms): 1.9 ms
Total harmonic distortion (THD): <= -60 dB for 1 kHz @ -3 dBfs input level
Frequency range: 823.200 - 831.800, 863.200 - 864.800
Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Dynamic range (>): 134 dB
Audio output level: 18 dBu max.
Connection: wireless
Operating relavite humidity (<= %): 5 - 95% (non-condensing)
Operating temperature ( C ): -10°C - +55°C (14°F - 131°F)
Battery capacity (Ah): 2.3
Battery count: 2
Battery voltage (V): 1.5
Charging current (mA): < 300 mA
Input voltage: 11-13 V
Transmission power (mA): Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP
Bluetooth transmission frequency: 2402 - 2480 MHz
Dimensions: 212 x 44 x 189 mm
Weight: 2800 g
Height: 73
Length: 405
Width: 350
1x EW-D EM Rack recevier
1x EW-D SK Bodypack transmitter
2x Rod antennas
1x NT 12-5 CW Power supply with country adapters
1x GA 3 Rackmount kit
4x Rubber feet
1x Quick guide
1x Safety guide
1x Manufacturer declaration sheet
