EW-D ME3 SET (R1-6) - SennheiserEAN  4044155247350

Microphones Wireless > Table Headset
EAN:4044155247350
€ 594,00 + VAT
€ 724,68 VAT Included
Adcom - Sennheiser
New
Availability: 2 units
Versatile and feature-rich digital wireless system for those who speak or presentt that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and unobstrusive clip-on microphone ME 3 (cardioid) with high speech intelligibility suit perfectly for daily use on stage.

Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance

Auto scan creates reliable connections with minimal time and effort

134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail

Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart

56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

2,240 selectable frequencies allow for fine tuning

Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

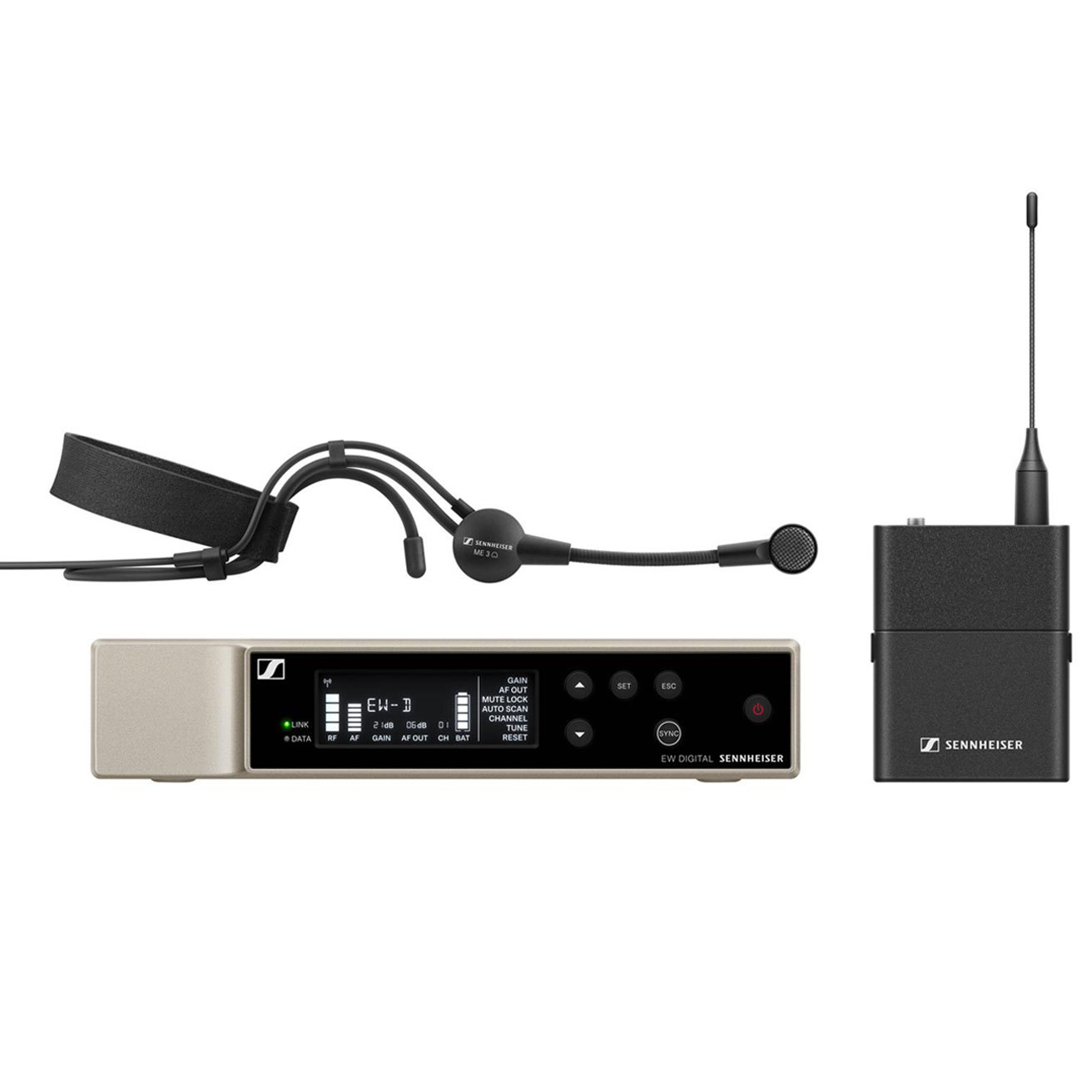

What's in the Box

EW-D EM rack receiver
EW-D SK bodypack transmitter
ME 3 headset microphone (cardioid)
2 rod antennas
power supply with country adapters
rackmount set
4 rubber feet
quick guide
safety guide
manufacturer declaration sheet
Frequency range
520-576 MHz

THD, total harmonic distortion
-60 dB for 1 kHz @ -3 dBfs input level

Operating temperature
-10 °C - +55 °C (14 °F - 131 °F)

Audio frequency response
20 Hz - 20 kHz (-3 dB) @ 3 dBfs

Operating relative humidity
5 - 95 % (non-condensing)

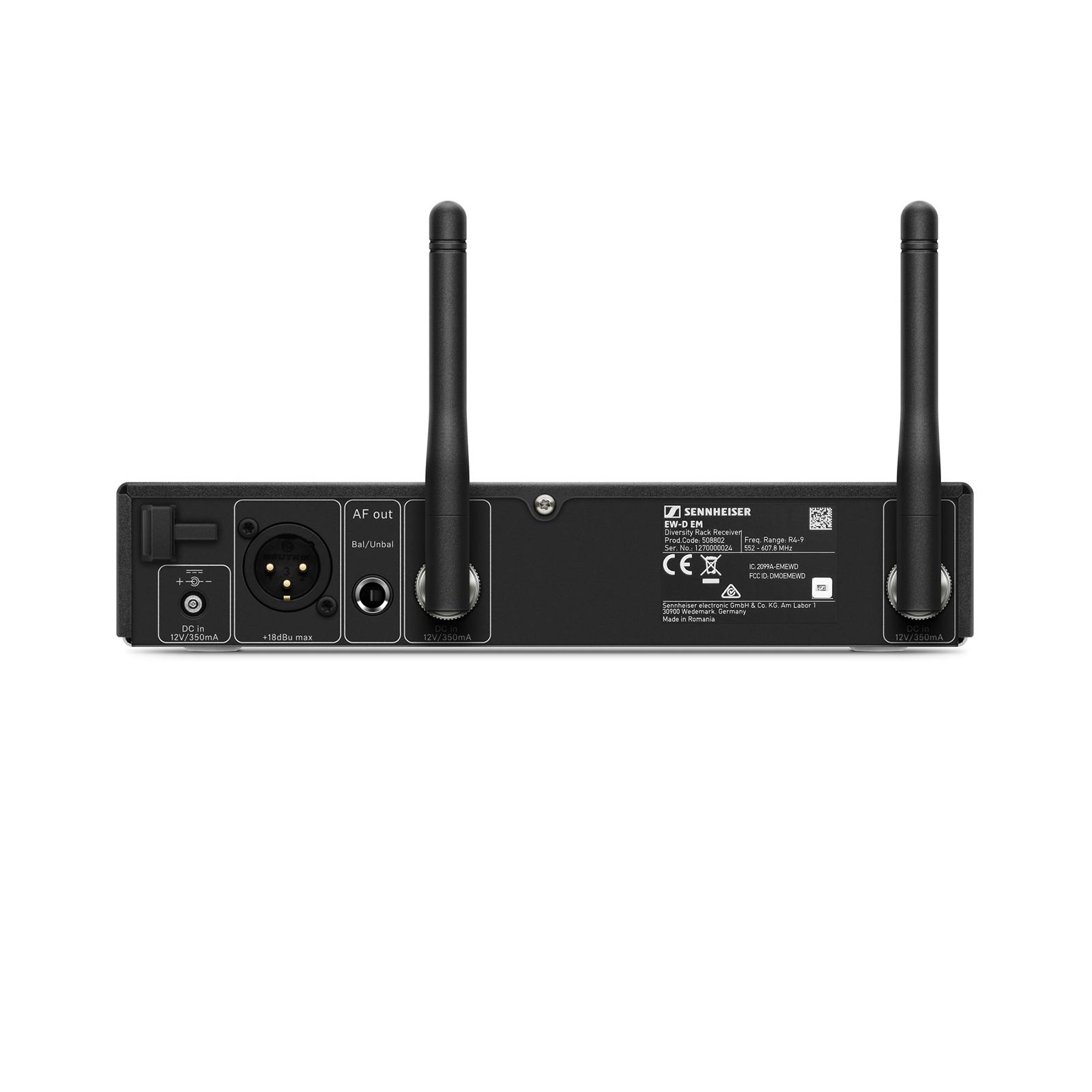

EW-D EM
Dimensions
212 x 44 x 189 mm

Weight
approx. 1000 g (without antennas and power supply)

Current consumption
300 mA

Input voltage range
11 - 13 V

Audio output level
18 dBu max.

Transmission power
BLE: max. 10 mW EIRP
ME 3
Connector
3.5 mm jack

Frequency response
50 to 18,000 Hz

Max. sound pressure level
150 dB

Cable length
approx. 1.60 m

Pick-up pattern
cardioid

Sensitivity in free field, no load (1kHz)
1.6 mV/Pa

Transducer principle
pre-polarized condensor microphone
EW-D SK
Dimensions
63 x 80 x 20 mm (without antenna)

Weight
approx. 120 g

Power supply
2 AA batteries 1.5 V (alkaline manganese)
or BA 70 rechargeable battery pack

Current consumption
< 300 mA

Input voltage range
2.0 - 4.35 V

Transmission power
Audio link: 10 mW
ERP (Range Y1-3): 12 mW ERP
BLE: max. 10 mW EIRP
