The XSW 2-835-A Wireless Handheld Microphone System with e835 Capsule (A: 548 to 572 MHz) features a true diversity receiver, and a handheld transmitter with an intuitive LCD display. It has 12 compatible channels and is offered as an easy to use, all-in-one wireless system for singers and presenters.
The unit has automatic frequency management and synchronization so you don't have to scramble to find an available channel. The transmitter's e835 capsule uses a cardioid polar pattern, which is part of the evolution series and designed for withstanding tougher, live-stage conditions.
True diversity receiver with metal housing
External antennas
Automatic frequency management and synchronization
Remote channel for easy setup
Fully tunable over a wide range of UHF frequencies
Rackmount kit included
Up to 12 compatible channels

System
Modulation Wideband FM
Frequency Range A: 548 to 572 MHz
Switching Bandwidth Up to 24 MHz
Frequencies Adjustable in 25-kHz steps
8 frequency banks, each with up to 12 factory-preset channels
Signal to Noise Ratio = 103 dBA
Total Harmonic Distortion (THD) = 0.9%
Temperature Range Operation: 32 to 104°F (0 to +40°C)
Storage: -4.0 to 158°F (-20 to +70°C)
Transmitter Synchronization 2.4 GHz, low power OQPSK (only active during synchronization)

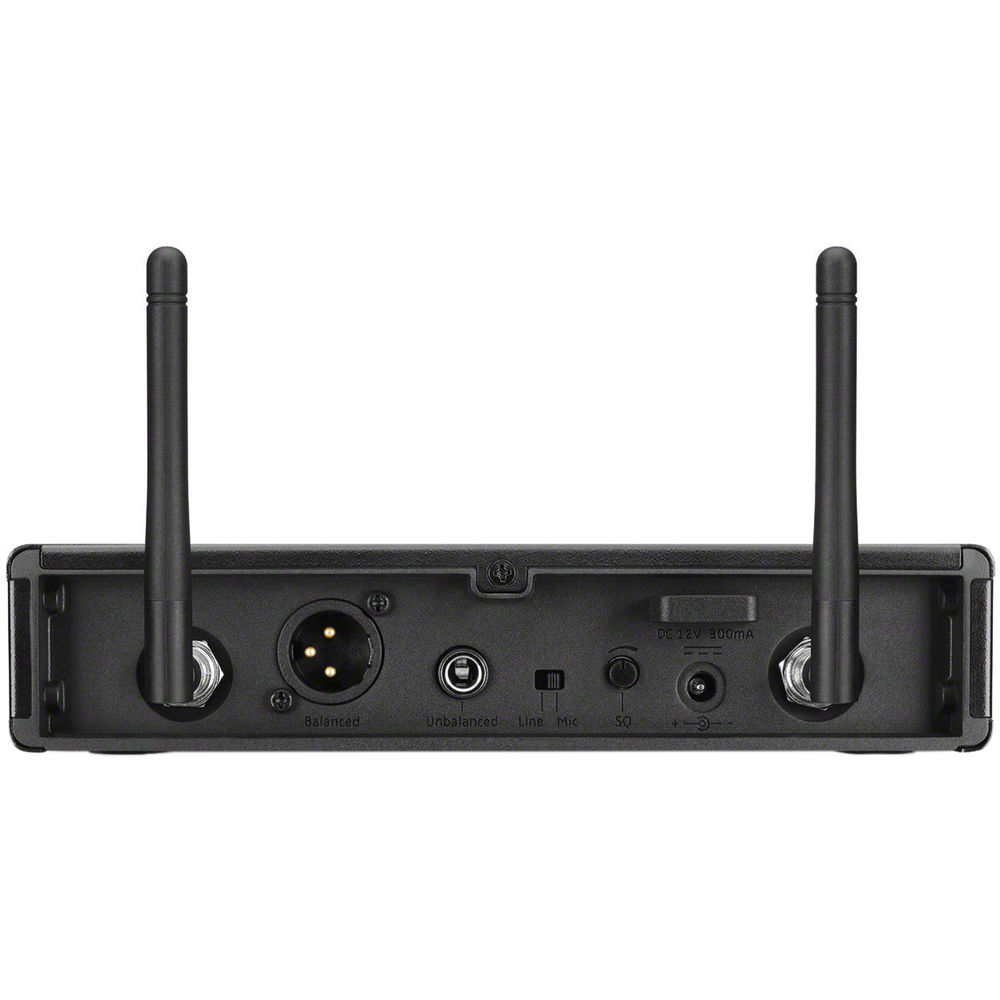

Receiver
Principle of Operation Double superheterodyne
Diversity Method True diversity
Sensitivity < 3 µV at 52 dBA rms S/N at (peak deviation)
Frequency Response 50 Hz to 16 kHz (-3 dB)
Maximum AF Output Voltage At peak deviation, 1 kHz AF
1/4" (6.3 mm) Jack Socket (Unbalanced): +6 dBu
XLR Socket (Balanced): +12 dBu
At peak deviation, 1 kHz AF)
Adjustment Range Audio: 40 dB, adjustable in 5-dB steps
Power Supply Nominal Input: 100 to 240 VAC 50/60 Hz
Input Current: 200 mA (Max.)
Nominal Output: 12 VDC 300 mA
Squelch Adjustable from 3 dBµ V to 28 dBµ V (combined with pilot tone)
Line/Mic Level 20 dB, switchable
Housing Material Rugged metal housing
Dimensions (W x H x D) 7.9 x 1.7 x 5.0" (200 x 42 x 127 mm)
Weight 24 oz (680 g)
Transmitter
RF Output Power 10 mW
AF Frequency Response 80 Hz to 16 kHz
Power Supply 2 x AA size batteries, 1.5 V
Operating Time Approximately 10 hours
Microphone Type Dynamic
Input Sensitivity Capsule: 1.5 mV/Pa
Polar Pattern Cardioid
Sensitivity Adjustment Range: 0 to -30 dB, adjustable in 10-dB steps
Housing Material Rugged ABS housing
Dimensions (L x Diam) 10.2 x 2.0" (260 x 50 mm) approximate
Weight 8.6 oz (245 g) approximate
