MX821S - ART PRO AUDIO
Audio Mixer > Rackmount Mixer
€ 252,42 + VAT
€ 307,95 VAT Included
Wire Transfer / Credit Card
Adcom - ART PRO AUDIO
New
Available in 10 gg
Article Description

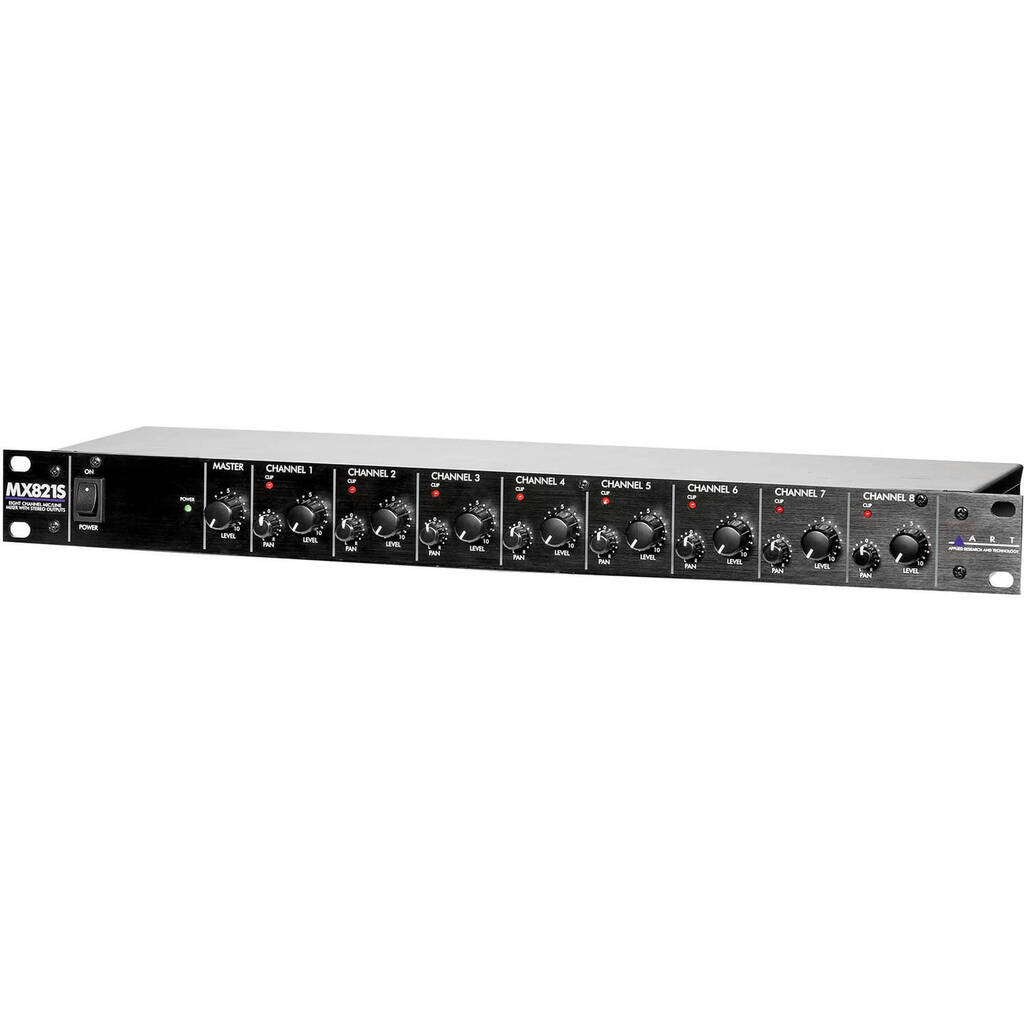

The ART MX821S - Eight-Channel Mic/Line Mixer with Stereo Outputs is a 1RU steel chassis mixer with internal power supply. The unit provides eight selectable balanced XLR microphone inputs with optional +48V low noise phantom power or eight unbalanced 1/4" TS line inputs. Each channel has both an independent level and pan control for placing the channel within the stereo image.

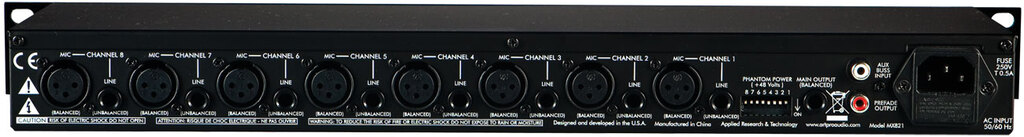

For outputs the unit features left and right 1/4" TRS outputs. Additionally each line input jack can be individually converted to a direct line output by means of an internal jumper system within the device. The unit's prefade output jacks and auxiliary bus input jacks also allow multiple units to be connected together to expand the system's I/O. The unit is suitable for a wide range of applications including stage, studio, and permanent installs such as for conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more.
For outputs the unit features left and right 1/4" TRS outputs. Additionally each line input jack can be individually converted to a direct line output by means of an internal jumper system within the device. The unit's prefade output jacks and auxiliary bus input jacks also allow multiple units to be connected together to expand the system's I/O. The unit is suitable for a wide range of applications including stage, studio, and permanent installs such as for conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more.
Mixer
Number of Analog Input Channels 8
Number of Mic Preamps 8
Analog Output Channels 1 x Stereo Master Output
1 x Stereo ALT Master Output
Signal Processing
Gain/Trim Range Mic Input:
54 dB
Line Input:
29 dB
Built-In Effects None
Performance
Frequency Response 20 Hz to 20 kHz +0/-1 dB
Max Input Level Mic Input:
-4 dBu
Line Input:
+22 dBu
Output Level +24 dBu at Max Gain (Balanced)
+18 dBu at Max Gain (Unbalanced)
I/O Impedance Main Output:
200 Ohms
Prefader Output:
100 Ohms
Mic Input:
2 Kilohms
Line Input:
20 Kilohms
Aux Input:
51 Kilohms
CMRR > 43 dB
SNR > 99 dB (0 dBu Reference)
THD < 0.01% (1 kHz)
Connectivity
Analog Inputs 8 x XLR 3-Pin Balanced Input
8 x 1/4" TS Unbalanced Line Input
1 x Stereo RCA Unbalanced Aux Input
Analog Outputs 2 x 1/4" TRS Balanced Output (1 Stereo Pair)
1 x Stereo RCA Coaxial Unbalanced Output
Phantom Power +48 V, Selectable On/Off
Power
AC Input Power 90 to 125 VAC, 50 / 60 Hz
Power Consumption 15 W
Physical
Rack Mountable Yes
Dimensions 1.8 x 19 x 6" / 4.5 x 48.3 x 15.2 cm
Weight 6.3 lb / 2.9 kg
Packaging Info
Package Weight 6.35 lb
Box Dimensions (LxWxH) 21 x 10.5 x 3.6"
