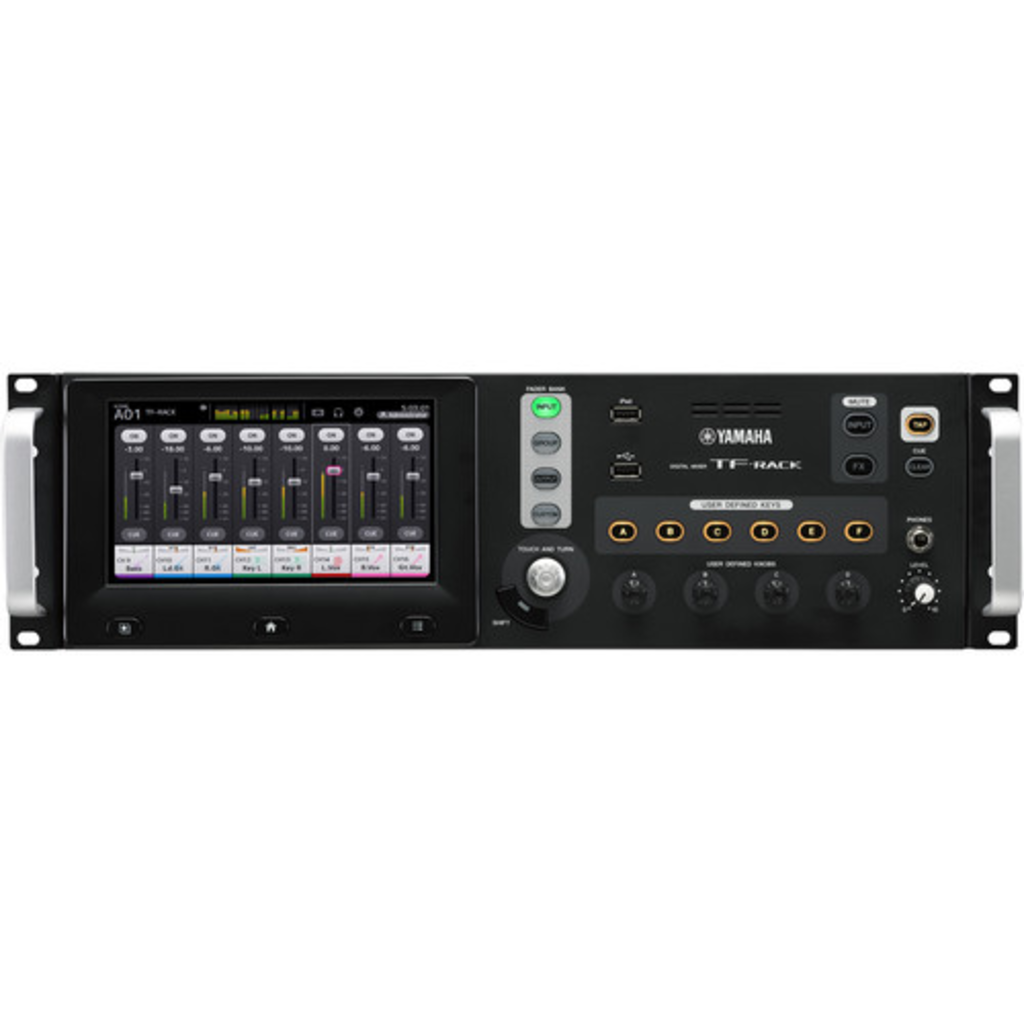

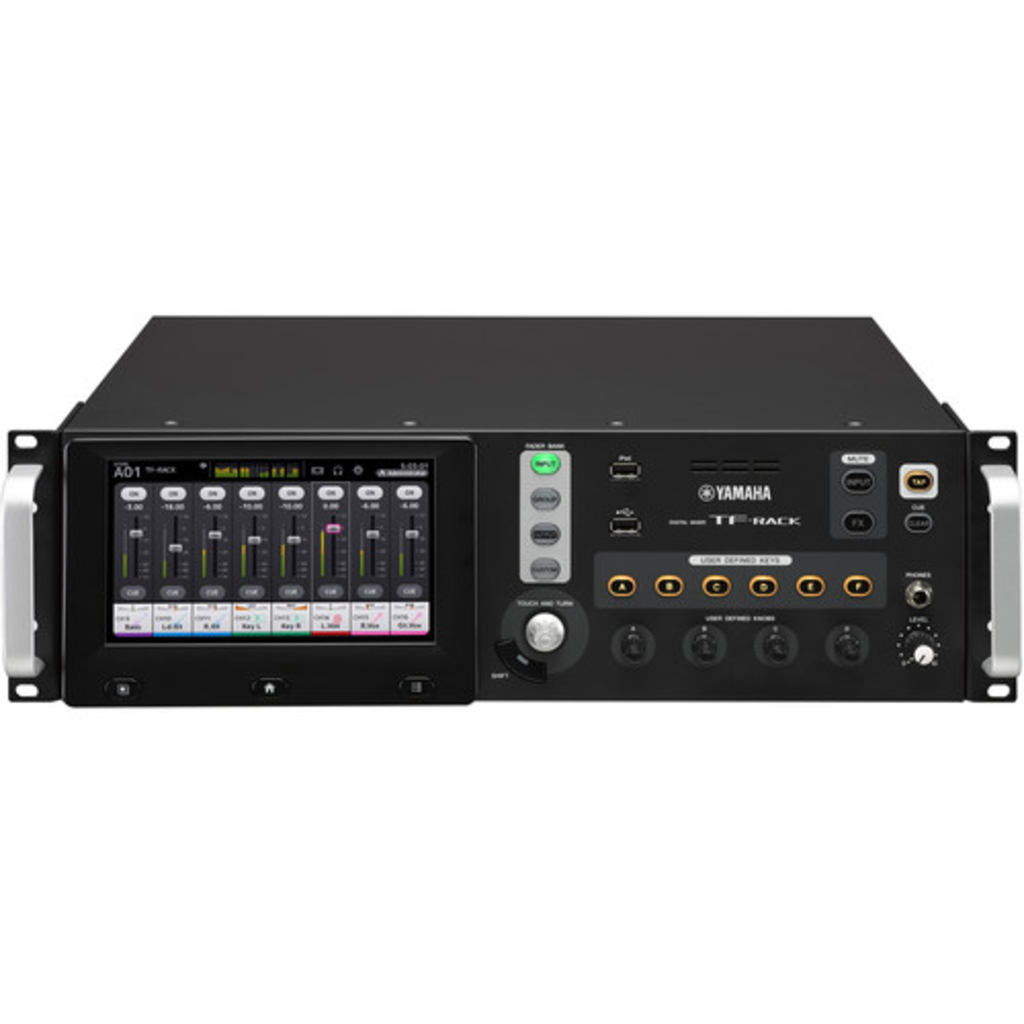

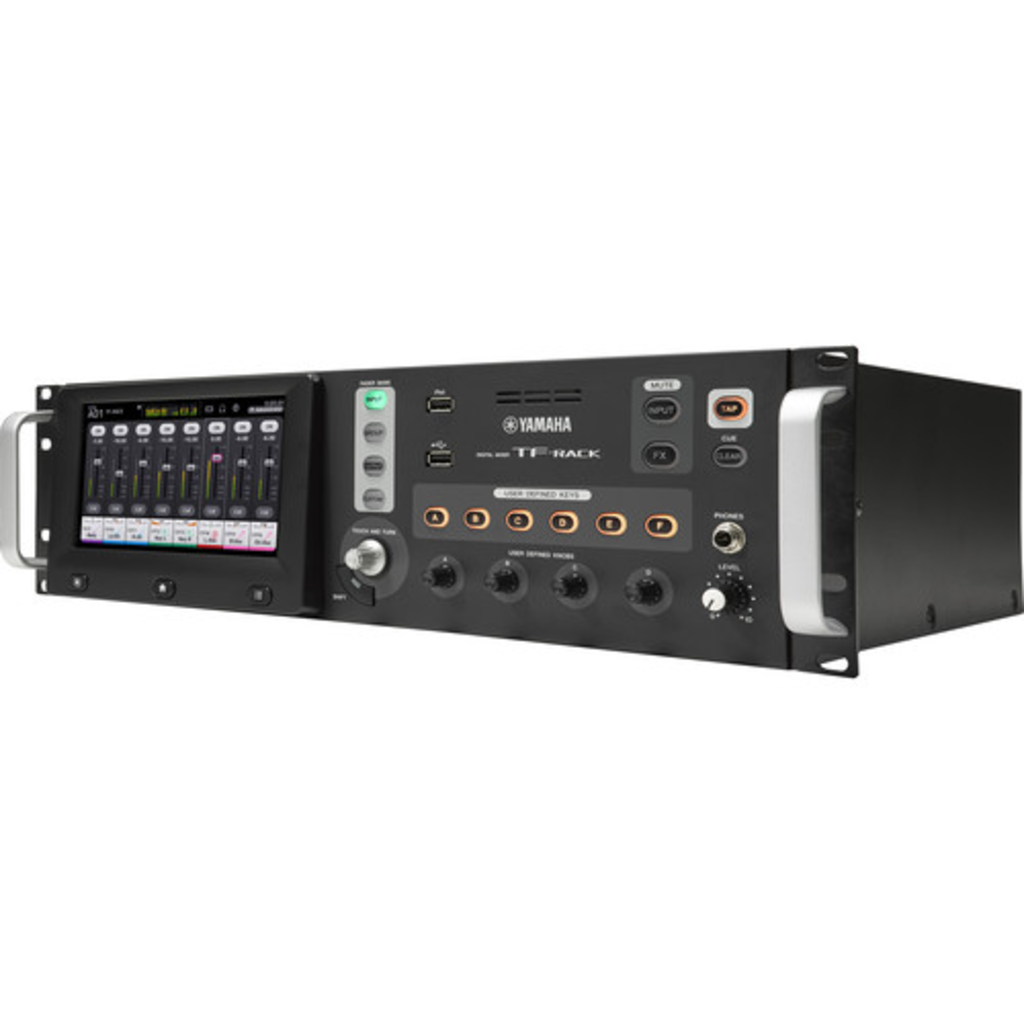

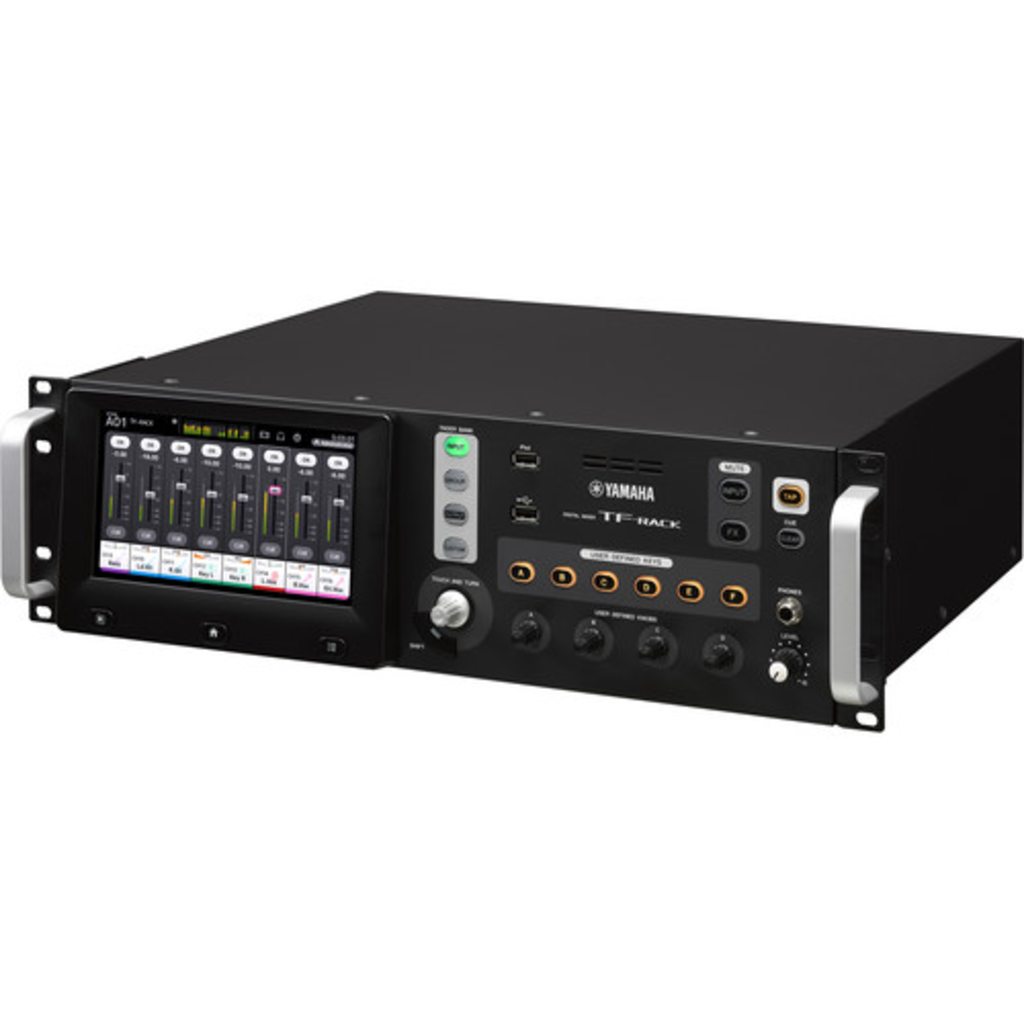

TF-RACK - Yamaha

Mixer:
- Input Channels: 40 (32 mono + 2 stereo + 2 return)
- Aux Buses: 20 (8 mono + 6 stereo)
- Stereo Buses: 1
- Sub Buses: 1
- Input Channel Functions: 8 DCA Groups
I/O:
- Inputs: 16 mic/line (XLR/TRS combo) + 1 stereo line (RCA pin)
- Outputs: 16 (XLR)
- Expansion Slots: 1
DSP: 8 effects + 10 GEQ
USB: 34 x 34 USB audio interface, 2-track recording via USB storage device
Sampling Frequency: 48 kHz, internal
Signal Delay: Less than 2.6 ms, Input to Omni Out, Fs=48 kHz
Total Harmonic Distortion: Less than 0.05% 20 Hz - 20 kHz @ +4 dBu into 600 Ohms, Input to Omni Out, input gain = min. (measured with a -18 dB/octave filter @ 80 kHz)
Frequency Response: +0.5, -1.5 dB 20 Hz - 20 kHz, refer to +4 dBu output @ 1 kHz, Input to Omni Out
Dynamic Range: 110 dB typ., DA converter, 108 dB typ., Input to Omni Out, input gain = min
Noise: Equivalent Input Noise: -128 dBu typ., input gain = max. (measured with an A-weight filter) | Residual Output Noise: -85 dBu, ST master off (measured with an A-weight filter)
Crosstalk: -100 dB (measured with a -30 dB/octave filter @ 22 kHz), adjacent Input/Omni Out channels, input gain = min
Power Requirements: 100 - 240 VAC 50/60 Hz
Power Consumption: 85 W

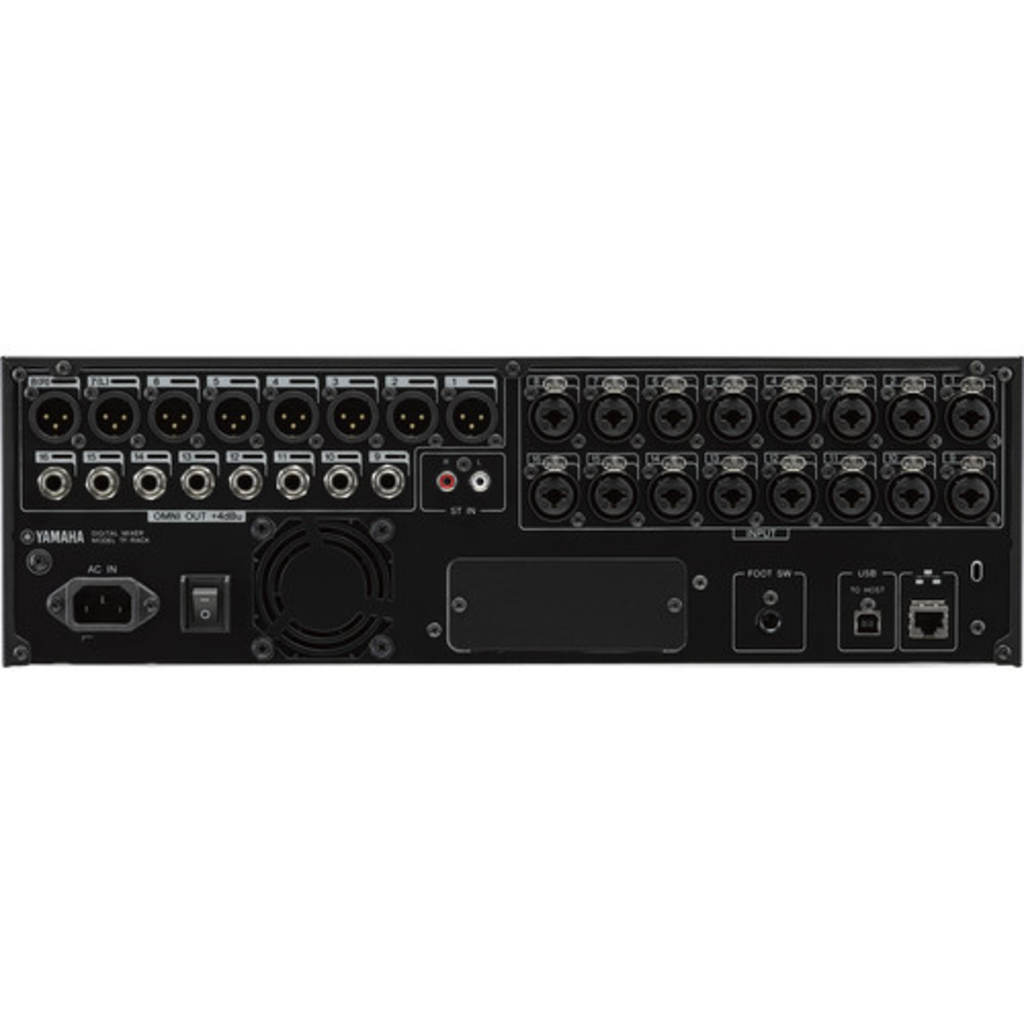

Analog Inputs:
Input Terminals: Input 1-16, ST In 1,2
Gain: -6 dB / +66 dB (Input 1-16)
Load Impedance: 7.5 kOhms (Input 1-16), 10 kOhms (ST In 1,2)
For Use with Nominal: 50 - 600-Ohm mics or 600-Ohm lines (Input 1-16), 600-Ohm lines (ST In 1,2)
Sensitivity: -82 dBu (61.6 µV), -10 dBu (245 mV) (Input 1-16), -30 dBV (31.6 µV) (ST In 1,2)
Nominal: -62 dBu (0.616 mV), +10 dBu (2.45 V) (Input 1-16), -10 dBV (316 mV) (ST In 1,2)
Max. Before Clip: -42 dBu (6.16 mV), +30 dBu (24.5 V) (Input 1-16), +10 dBV (3.16 V) (ST In 1,2)
Connector: Combo Jack (XLR-3-31 type or TRS phone) balanced (Input 1-16), RCA pin jack unbalanced (ST In 1,2)
Analog Outputs:
Output Terminals: Omni Out 1-16, Phones
Source Impedance: 75 Ohms (Omni Out 1-16), 100 Ohms (Phones)
For Use with Nominal: 600-Ohm lines (Omni Out 1-16), 40 Ohms (Phones)
GAIN SW: +24 dBu position (default) (Omni Out 1-16)
Nominal Output Level: +4 dBu (1.23 V) (Omni Out 1-16), 3 mW (Phones)
Max. Output Level Before Clip: +24 dBu (12.3 V) (Omni Out 1-16), 75 mW (Phones)
Connector: XLR-3-32 type balanced (Omni Out 1-16), stereo phone jack (TRS) unbalanced (Phones)
Digital Input/Output:
Terminals: USB (to Host), iPad
Format: USB
Data length 24-bit (USB to Host)
Audio: 34-ch input / 34-ch output, PCM (USB to Host), Playback: MP3 or WAV file data / Record: WAV file data (iPad)
Connector: USB (B-type) (USB to Host), USB (A-type) (iPad)
Control I/O:
- Terminals: Network, Foot SW
- Format: IEEE802.3 (Network)
- Level: 10Base-T/100Base-TX (Network)
- Connector: RJ-45 (Network), TS Phone (Foot SW)
Dimensions : 18.9 x 5.2 x 16.1" / 48.0 x 13.2 x 40.9 cm
Net Weight : 20.3 lb / 9.2 kg
