VS19-3000DV-TR01 - Vaxis
Wireless Video systems > Professional Wireless Transmission Systems
EAN:6972119121904
€ 3.955,91 + VAT
€ 4.826,21 VAT Included
Adcom - Vaxis
New
Available in 10 days

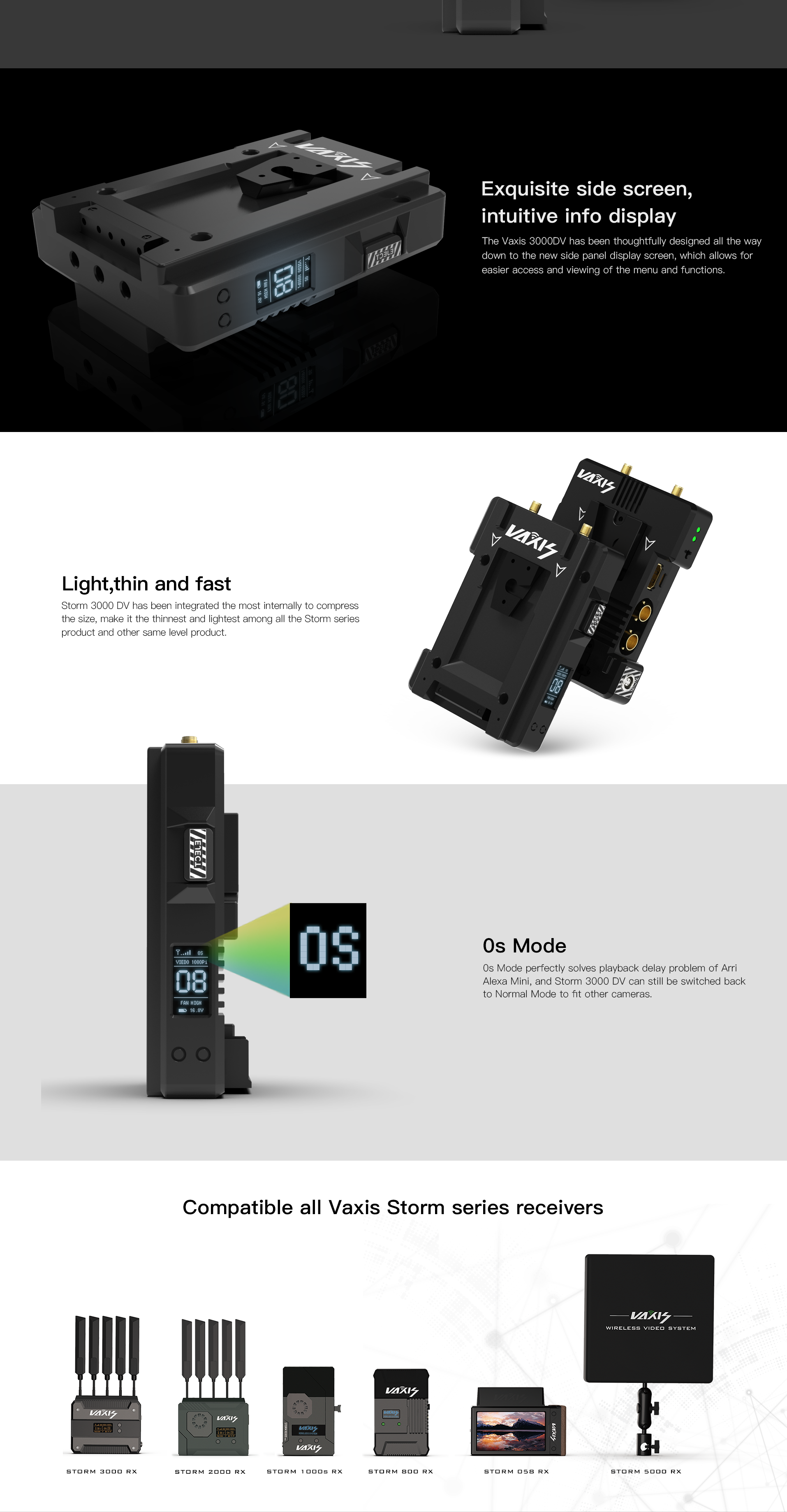

Vaxis 1000m V-Mount Wireless Video Transmission - Kit consisting of a transmitter and receiver.
° Transmits wireless video up to 3000' (914 meters)
° Supports uncompressed video up to 1080p 60fps
° Less than 1ms latency
° Dual V-lock pass-through plates on TX
° SDI and HDMI inputs, SDI outputs
° HDMI/SDI cross conversion
° Supports metadata and TimeCode
° Bright LCD screen for settings, status and scanning for open frequencies in the 5.1 to 5.9GHz range
° Mounts using 1/4"-20 threaded holes
° 6 Digital Code Encryption
With the Storm 3000DV Wireless Kit With V-Lock mounting plates you can transmit uncompressed, lossless video signals from transmitter to receiver with zero latency. The transmitter features two V-Lock pass-through plates and HDMI/SDI inputs and outputs. The receiver also features a V-Lock battery plate and has one HDMI and two SDI outputs. The system supports inputs up to 4K and video transmissions up to 1080p60 with cross conversion from HDMI input to SDI loop output on the transmitter.
The transmitter can also be mounted using a built-in 1/4"-20 threaded hole. The included short antennas provide short-distance connectivity of a few hundred feet, while the larger blade antennas provide a powerful line-of-sight signal up to 3000' or 914 meters.
The system also supports the transmission of timecode, metadata, and timecode trigger information.
The Storm 3000 transmitter features 20 selectable 40 MHz channels and a wireless frequency range of 5.1 to 5.9 GHz, and there is a bright LED display on the side that shows connection status and channel information.
The unit can be powered using its 2-pin LEMO port using a D-Tap or an AC source with a separately available cable.
A standard BNC cable is included so you can plug it in right away.
Enjoy the system's professional transmission mode, which is close to 0 ms latency, making it suitable for use in live events and news, as well as for the production of narrative films and documentaries with the protection of privacy thanks to a powerful signal encryption algorithm.
An antenna cover helps protect the most frequently damaged part of wireless systems and serves to extend the life of each antenna.
