SmallHD CINE 5
EAN:811786033423 · MFR:16-0526
€ 1.462,78 VAT Included
Promotion valid until
Availability: 1 unit
PROMOTIONS
Promo SmallHD su prodotti selezionati
Expires on 30 September 2026
SmallHD Promotion on Selected Products
Until September 30th, enjoy huge discounts on selected SmallHD products.
You can purchase them with discounts of up to 50%. The amounts in the product pages already include promotional discounts.
MON-CINE-24
Cine 18
MON-CINE-13
CINE 5
INDIE 5
18-2015
18-2007
18-2017

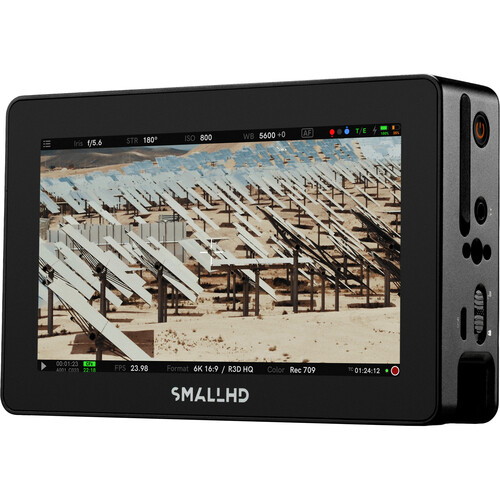

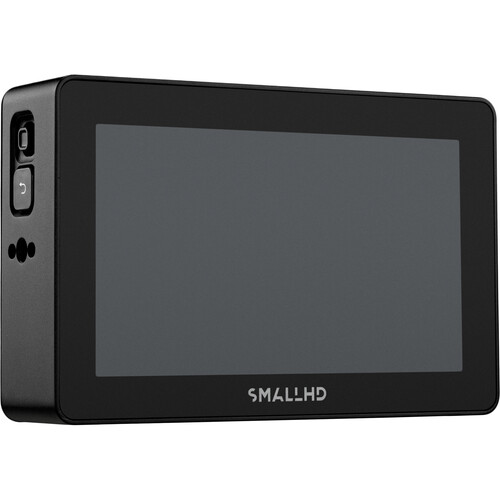

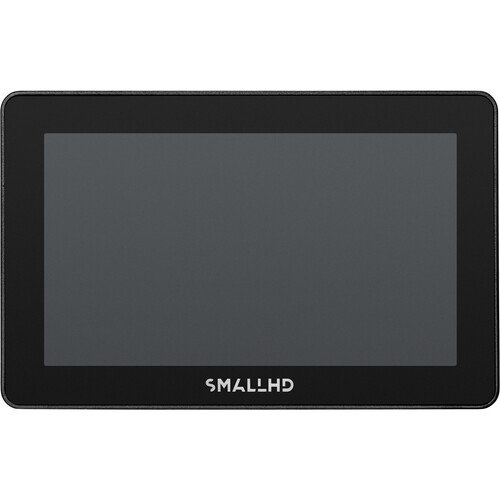

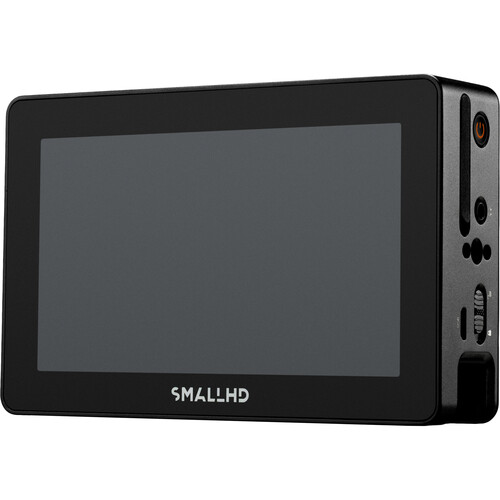

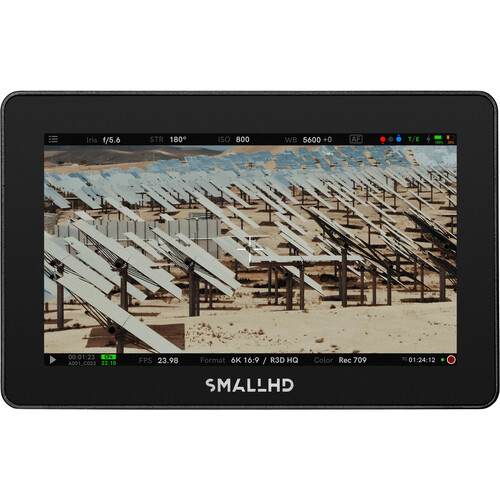

Monitor your camera with the CINE 5 Touchscreen On-Camera Monitor from SmallHD. Featuring a sharp 5" display suitable for indoor or outdoor use, the CINE 5 monitor supports various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.

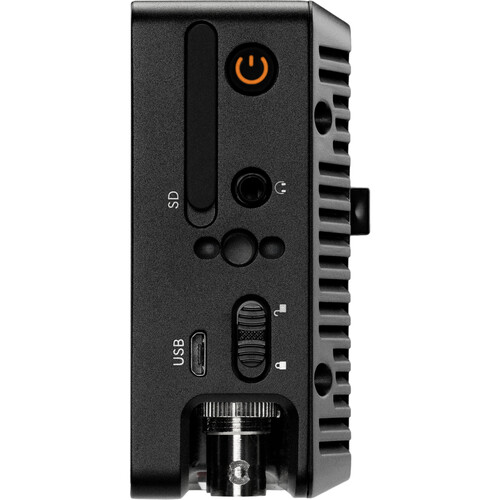

The CINE 5 features a bright 2000 cd/m², 1920 x 1080 LCD touchscreen with 3D LUT compatibility. Using the intuitive PageOS 5, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap, and the CINE 5 also adds a joystick on the side and a button on the back for ease of use. There is a 5-pin USB output to utilize optional RED camera control. The monitor can be powered using its 2-pin power input.
Key Features
Slim, lightweight, daylight-viewable, 5" touchscreen on-camera monitor with 2000 cd/m² brightness.
HDMI-to-SDI and SDI-to-HDMI cross conversion is supported.
Supports 10-bit 4:2:2 DCI-P3 color
The included PageOS 5 Toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), Advanced Teradek RT Overlays, and more. The PageOS 5 UI offers quick and repeatable setups and full control over all parameters and display tools.
Power via 2-pin power input.
Four 1/4"-20 mounting points on top, left, right, and back.
Optional RED camera control.
RED Control Features
Run/stop
Color controls
Exposure controls
Status
Color temperature
Video format
Playback
Shutter
Menu control
Software Features
Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch-zoom
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
Image flip: Auto and manual
Image rotation: Auto and manual
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Dual zebra: Customizable
Waveform: Luma and RGB, customizable with region of interest highlighting
Vectorscope: Yes
RGB parade: Customizable
Histogram: Luma and RGB
Image capture: With dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
Image overlay: Opacity slider and blink setting
Audio meters: HDMI and SDI up to eight channels
The CINE 5 features a bright 2000 cd/m², 1920 x 1080 LCD touchscreen with 3D LUT compatibility. Using the intuitive PageOS 5, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap, and the CINE 5 also adds a joystick on the side and a button on the back for ease of use. There is a 5-pin USB output to utilize optional RED camera control. The monitor can be powered using its 2-pin power input.
Key Features
Slim, lightweight, daylight-viewable, 5" touchscreen on-camera monitor with 2000 cd/m² brightness.
HDMI-to-SDI and SDI-to-HDMI cross conversion is supported.
Supports 10-bit 4:2:2 DCI-P3 color
The included PageOS 5 Toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), Advanced Teradek RT Overlays, and more. The PageOS 5 UI offers quick and repeatable setups and full control over all parameters and display tools.
Power via 2-pin power input.
Four 1/4"-20 mounting points on top, left, right, and back.
Optional RED camera control.
RED Control Features
Run/stop
Color controls
Exposure controls
Status
Color temperature
Video format
Playback
Shutter
Menu control
Software Features
Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch-zoom
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
Image flip: Auto and manual
Image rotation: Auto and manual
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Dual zebra: Customizable
Waveform: Luma and RGB, customizable with region of interest highlighting
Vectorscope: Yes
RGB parade: Customizable
Histogram: Luma and RGB
Image capture: With dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
Image overlay: Opacity slider and blink setting
Audio meters: HDMI and SDI up to eight channels
