BM-245-NDI - Swit
Monitors > Panel 23"
EAN:6948193511337
€ 1.969,00 + VAT
€ 2.402,18 VAT Included
Wire Transfer / Credit Card
Promotion valid until
Adcom - Swit
New
Available in 10 gg

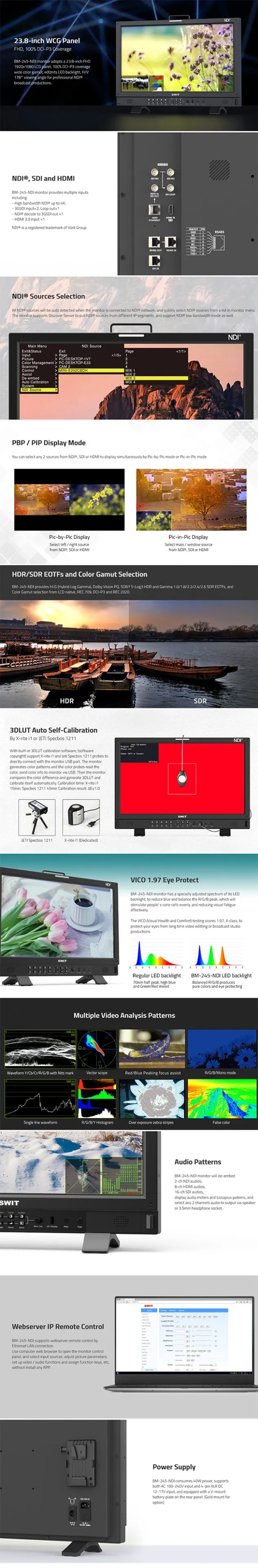

Article Description
23.8-inch 1920×1080 IPS LCD Panel
100% DCI-P3 wide color gamut coverage
VICO 1.97 A-class Eye Protecting LCD
High bandwidth 4K NDIŽ monitoring
3GSDI 2-in 1-loop, HDMI2.0 input
NDIŽ decode to 3GSDI output
NDIŽ/SDI/HDMI PBP or PIP view
Auto detect and quick select NDIŽ sources
Support NDIŽ Discover Server
Support NDIŽ Low bandwidth mode
Rec 709 / DCI-P3 / Rec 2020 color gamut selection
3DLUT Auto Self-calibration without PC
Built-in Delog LUTs and User LUTs upload by USB
Waveform / Vector / Histogram
Focus assist / False color / Zebra
16-ch audio meters / Lissajous pattern
IP webserver remote control
AC, DC and battery plate power
100% DCI-P3 wide color gamut coverage
VICO 1.97 A-class Eye Protecting LCD
High bandwidth 4K NDIŽ monitoring
3GSDI 2-in 1-loop, HDMI2.0 input
NDIŽ decode to 3GSDI output
NDIŽ/SDI/HDMI PBP or PIP view
Auto detect and quick select NDIŽ sources
Support NDIŽ Discover Server
Support NDIŽ Low bandwidth mode
Rec 709 / DCI-P3 / Rec 2020 color gamut selection
3DLUT Auto Self-calibration without PC
Built-in Delog LUTs and User LUTs upload by USB
Waveform / Vector / Histogram
Focus assist / False color / Zebra
16-ch audio meters / Lissajous pattern
IP webserver remote control
AC, DC and battery plate power
LCD Performance
Size : 23.8 inches
Display area : 527.04×296.46mm
Resolution : 1920×1080
Aspect ratio : 16:9
Brightness : 400nits
Contrast : 1000:1
Color Gamut : 100% DCI-P3
Color depth : 16.77M colors, 8-bit
Eye Protect : VICO 1.97
Viewing angle : 178°(H) /178°(V)
Input
---------------
° RJ45 ×1
° High bandwidth 4K NDIŽ
° BNC ×2
° 3G/HD/SD-SDI input
° HDMI ×1
° HDMI 2.0 input
° RS485 ×1
° TSL 3.1/4.0 UMD input
° RS485 ×1
° GPI (Tally) input
Output
---------------
° BNC ×1
° 3G/HD/SD-SDI loop output
° BNC×1
° NDIŽ decoded to SDI output
° RS485 ×1
° TSL 3.1/4.0 UMD output
Analog audio : 3.5mm headphone and speaker
Video Format
---------------
NDIŽ
4096×2160p (30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (30 / 29.97 / 25 / 24 / 23.98)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
NDIŽ decoded to SDI out
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
SDI IN1/2 and LOOP
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576i (50)
HDMI IN
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
General
---------------
Input voltage : DC 12V-17V, AC 100-240V, 50/60Hz
Power consumption : 40W
Working temperature : 0°C~+50°C
Working humidity : 10%~90%
Storage temperature : -15°C~+60°C
Storage humidity : 10%~90%
Dimensions : 580.9×392.3×73.6mm
Net weight (main body) : 6.7kg
Size : 23.8 inches
Display area : 527.04×296.46mm
Resolution : 1920×1080
Aspect ratio : 16:9
Brightness : 400nits
Contrast : 1000:1
Color Gamut : 100% DCI-P3
Color depth : 16.77M colors, 8-bit
Eye Protect : VICO 1.97
Viewing angle : 178°(H) /178°(V)
Input
---------------
° RJ45 ×1
° High bandwidth 4K NDIŽ
° BNC ×2
° 3G/HD/SD-SDI input
° HDMI ×1
° HDMI 2.0 input
° RS485 ×1
° TSL 3.1/4.0 UMD input
° RS485 ×1
° GPI (Tally) input
Output
---------------
° BNC ×1
° 3G/HD/SD-SDI loop output
° BNC×1
° NDIŽ decoded to SDI output
° RS485 ×1
° TSL 3.1/4.0 UMD output
Analog audio : 3.5mm headphone and speaker
Video Format
---------------
NDIŽ
4096×2160p (30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (30 / 29.97 / 25 / 24 / 23.98)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
NDIŽ decoded to SDI out
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
SDI IN1/2 and LOOP
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576i (50)
HDMI IN
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
General
---------------
Input voltage : DC 12V-17V, AC 100-240V, 50/60Hz
Power consumption : 40W
Working temperature : 0°C~+50°C
Working humidity : 10%~90%
Storage temperature : -15°C~+60°C
Storage humidity : 10%~90%
Dimensions : 580.9×392.3×73.6mm
Net weight (main body) : 6.7kg
