Magewell Pro Convert IP to USB | NDI Digital Encoder Decoder

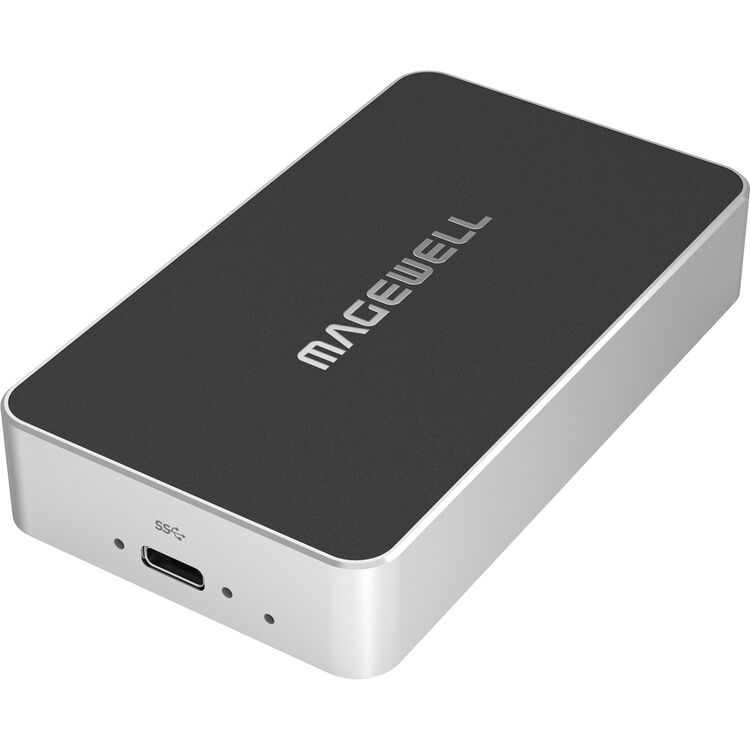

Magewell Pro Convert IP to USB

The new Magewell Pro Convert IP to USB is a plug-and-play device that enables computers, including laptops, to capture an NDI®, NDI® HX or other streaming sources through a USB interface with no external power required.
It is ideal for use in conference rooms, production studios, and in environments where existing users' software does not natively support NDI® or other IP protocols and/or the installation of additional software is not permitted.

Supported Products
Zoom Rooms
Microsoft Teams
VLC
OBS Studio
XSplit
QuickTime Player
vMix
Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software

Output
Max output UVC: 1080p60 YUY2/NV12. Supported output formats include (Actual capture format will vary based on the host system USB interface, operating system and capture software.):
1920x1080p/1368x768p/1280x1024p/1280x720p/720x640p/720x480p/640x480p 60/59.94/50/48/40/30/29.97/25/24/20/15
Max output UVC: 1080p30 MJPEG. Supported output formats include (Actual capture format will vary based on the host system USB interface, operating system and capture software.):
1920x1080p/1368x768p/1280x1024p/1280x720p/720x640p/720x480p/640x480p 30/29.97/25/24/20/15
UAC: 2-channel, 16-bit, 48KHz

Decoding
Decoding 1 stream of NDI High Bandwidth/NDI HX2/NDI HX3/RTMP/RTSP/RTP/UDP/SRT/HTTP at up to 1080p60
Decoding H.264 / H.265
Supports NDI 6

Configuration Management
Register with Control Hub
Remote control via WebUI and Control Hub
Web UI enables users to easily check and set the process-and-capture parameters, upgrade firmware and export info for troubleshooting
Provide HTTP APIs
Support USB NET

PTZ Control
Control PTZ cameras using protocols of NDI and Visca over UDP

Host Interface

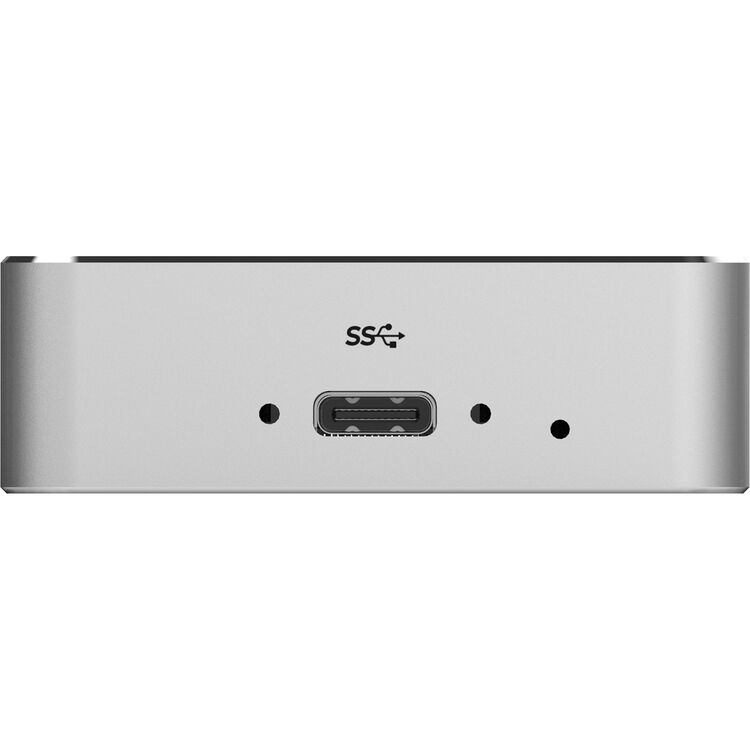

USB 3.0 (5 Gbps) Type-C
5V/1A power supply
USB NCM

Network Connections

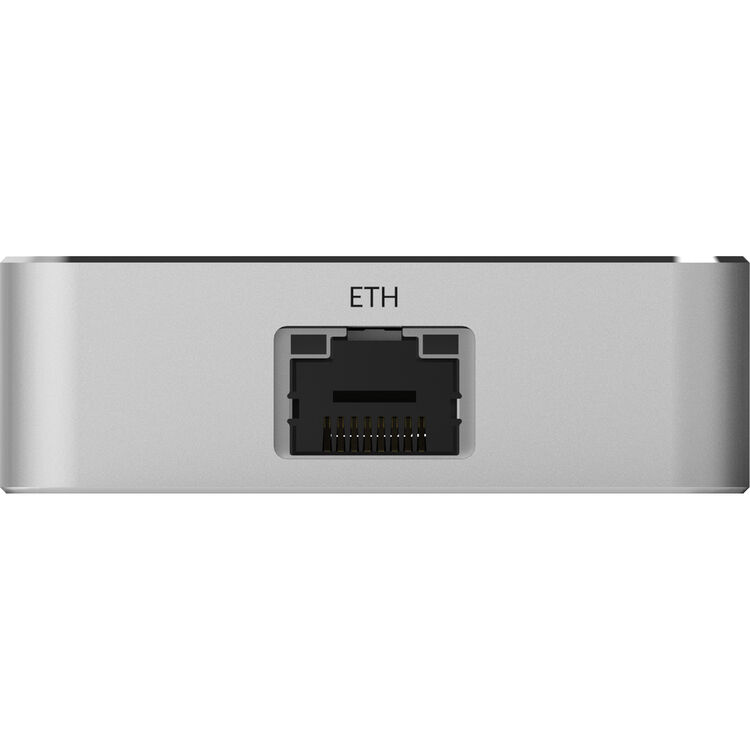

Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T

Recommended OS
Windows 10/11/Server 2016/Server 2019/Server 2022 (x86 & x64) and above
Linux x86, x64 & ARM architecture, with 2.6.35 and above
Mac OS X 10.9 and above
macOS 10.12 and above

LED Indicators
Status LED indicates:
Power supply: on/off

Form Factor
3.8622 in (L) x 2.2354 in (W) x 0.7087 in (H) (98.1 mm x 56.78 mm x 18 mm)

Power Consumption
5V max current: ~ 1A
Max power consumption: ~ 3.8W

Working Environment
Operating temperature: 0 to 50 deg C
Storage temperature: -20 to 70 deg C
Relative humidity: 5% to 90% non-condensing

x Pro Convert IP a USB

Pro Convert IP to USB - MagewellEAN 6936572401652
