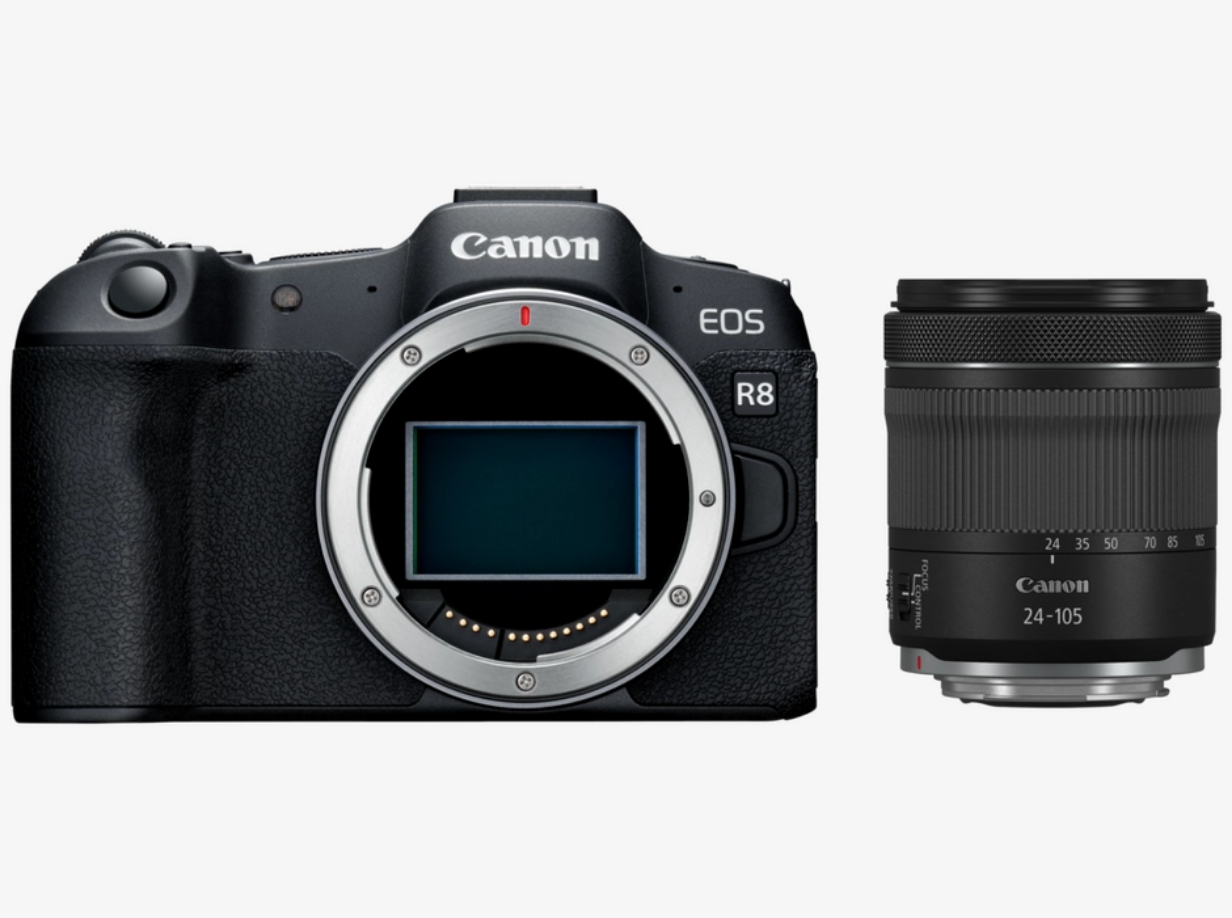

Canon EOS R8+RF24-105 F4-7.1 IS STM

MFR  5803C095

EAN  8714574693002

Camera specifications
================

Lens mount: Canon RF
Compatible with EF lenses using the RF to EF adapter (adapter to be purchased separately)

Sensor resolution
Effective: 24.2 Megapixels
Sensor type: 35.9 x 23.9 mm (Full-Frame) CMOS
Image stabilization: sensor shift, 5-axis (video only)
Built-in ND filter: none
Acquisition type: photo and video
Shutter type: electronic shutter

Shutter speed
Electronic shutter
1/16000 Up to 30 seconds in manual mode
1/16000 Up to 30 seconds in Time mode
1/8000 Up to 30 seconds
Electronic front curtain shutter
1/4000 Up to 30 seconds
Bulb/Time Mode: Bulb Mode, Time Mode

ISO sensitivity
Photo/Video
100 to 102,400 (extended: 50 to 204,800)
Measurement method:
Center-weighted average, Evaluative, Partial, Spot
Exposure modes Aperture Priority, Manual, Program, Shutter Priority
Exposure Compensation: -3 to +3 EV (1/3, 1/2 EV increments)
Measurement range: -3 to 20 EV

White balance
Presets: Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (white), Kelvin, Shade, Tungsten
Continuous shooting
Electronic shutter
Up to 40 fps for up to 120 frames (JPEG)/56 frames (Raw)
Up to 6 fps for up to 1000 frames (JPEG)/1000 frames (Raw)
Interval Recording: Yes
Self-timer: 2/10 second delay
Aspect ratio: 3:2

Image File Format
Format: C-RAW, HEIF, JPEG, Raw
Bit depth: 14 bit

Internal recording mode
H.264/H.265/MP4 4:2:2 10 bit
UHD 4K (3840 x 2160) up to 23.98/25/29.97/50/59.94 fps
1920 x 1080 up to 23.98/25/29.97/50/59.94/100/120/150/180 fps
External Recording Mode: None
Gamma curve: Canon Log 3, HDR-PQ
Registration limit
Up to 30 minutes in 4K
Up to 30 minutes in HFR 1080p
Broadcast Output: NTSC/PAL
Built-in Microphone Type: Stereo

Connections
Media/memory card slot
Single slot: SD/SDHC/SDXC
Video I/O: 1 micro-HDMI output
Audio In/Out:
1 x 1/8"/3.5mm TRS stereo microphone input on the camera body
1 x 1/8"/3.5mm TRRS headphone/microphone output on camera body
Other I/O: 1 x USB-C (USB 3.2 / 3.1 Gen 2)
Wireless: 2.4/5GHz Bluetooth 4.2 control
Mobile App Compatible: YES
*As of February 2023: Check with the manufacturer for the most up-to-date compatibility
Global positioning (GPS, GLONASS, etc.): None

Monitor
Size: 3"
Resolution: 1,620,000 points
Display type: Articulated touchscreen LCD
Viewfinder
Technology: OLED
Size: 0.39"
Resolution: 2,360,000 points
Eye point: 22mm
Coverage: 100%
Magnification: approx. 70x
Diopter adjustment: -4 to +1

Focus
Automatic and manual
Focus Mode: Continuous AF, Manual Focus, Single AF
Autofocus points:
Phase Detection: 4897
video
Phase detection: 4067
Autofocus sensitivity: -6.5 to +21 EV

Flash
Built-in Flash: No
Flash mode: automatic
Maximum sync speed: 1/200 second
Flash compensation: -3 to +3 EV (1/3, 1/2 EV increments)
Dedicated flash system: eTTL
External flash connection: intelligent hot shoe

General
Operating temperature: 0 to 40°C / 32 to 104°F
Operating Humidity: 0 to 85%
Battery type: 1 x LP-E17 rechargeable lithium-polymer
Tripod Mounting Thread: 1 x 1/4"-20 Female
Dimensions: 5.22 x 3.39 x 2.76"/132.59 x 86.11 x 70.1 mm
Weight: 1.0 lb / 461 g (with battery, recording media) - 0.9 lb / 414 g (body only)

Lens Specifications
=================
Image Size: Full Frame
Focal Length: 24-105 mm
Compact Size: 88.8 mm
5-Stop Optical IS: Advanced IS
Lens Control Ring: Focus Control
STM Motor: Fast Focus
Angle of View (Horizontal, Vertical, Diagonal):
74°-19° 20',
53°-13°
84°-23° 20'
Lens Construction (Elements/Groups): 11/13
Number of Aperture Blades: 7
Minimum Aperture: 40
Closest Focusing Distance (m): 0.2 wide angle / 0.34 telephoto (0.13 wide angle in MF)
Maximum Magnification (x): 0.21 wide angle (MF: 0.39) / 0.40 telephoto (MF: 0.5)
Weight: 395 g
