Fujinon XA55x9.5BESM S5L | Ottiche 2/3" HD | Ottiche B4 2/3"

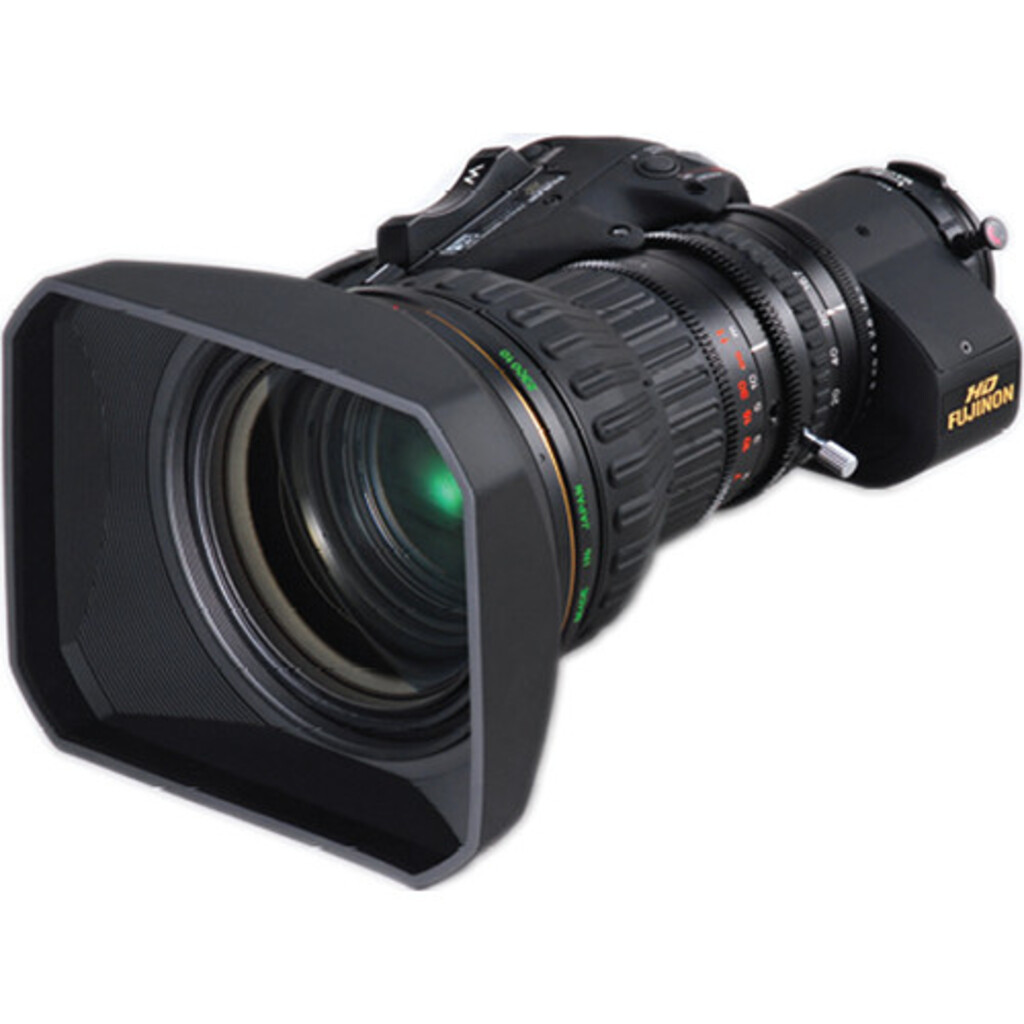

The ZA12x4.5BRD-S6 with Servo for Focus and Zoom is a 4.5-54mm lens, designed to provide 2/3" cameras with an ultra wide to telephoto angle-of-view. The lens has a zoom ratio of 12x. The maximum aperture is a fast f/1.8 at 4.5-41mm and stops down to f/2.4 at 54mm. The lens also includes a digital servo for focus and zoom, which enables full studio control via RS-232.Innerfocus minimizes the effects of lens breathing, which ensures a more consistent angle-of-view when making focus adjustments. QuickZoom improves zoom speed to 0.7 seconds end to end. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end to check focus. Releasing the button automatically returns the lens to the previously selected focal length. The Focused Intelligent Network Diagnosis (FIND) system aids in preventive maintenance and troubleshooting by evaluating electronic and mechanical parameters.

4.5-54mm wide to telephoto 12x zoom lens for 2/3" cameras
Fast f/1.8 max aperture at 4.5-41mm and f/2.4 at 54mm
Digital servo for focus and zoom and full studio control via RS-232
Innerfocus, QuickZoom and Zoom Limit
Focused Intelligent Network Diagnosis

Select Series Value Priced Super Wide Angle HD ENG Style ENG/EFP. Digital servo zoom & focus for full servo studio control, robotics, jibs, tower cams, teleconferencing and other applications where remote control of zoom, focus and iris via RS-232 serial data or traditional analog control is desired. Optional zero backlash gearing and 16 bit encoders available for robotics and virtual applications.

Camera Format 2/3"
Focal Length 4.5 - 54 mm
Zoom Range 12 ×
Maximum Relative Aperture 1 : 1.8 (4.5 - 41 mm)
1 : 2.4 (54 mm)
Maximum Photometric Aperture T-No. 1 : 2.0 (4.5 - 39.2 mm)
1 : 2.9 (54 mm)
M.O.D. from the Image Plane 0.59 m
M.O.D. from the Front of Lens 0.3 m
Object dimensions at M.O.D.
16 : 9 Aspect ratio 4.5 mm 757 × 425 mm
54 mm 59 × 33 mm
Angular field of view
16 : 9 Aspect ratio 4.5 mm 93°38' × 61°50'
54 mm 10°09' × 5°43'
Macro Available
Filter thread M127 × 0.75 *
Diameter × Length 95 × 237.5 mm
Weight (Lens hood excluded) 1.9 kg
Features

Inner focus
Quick zoom
Zoom limit
Wide Power
