Elmarit-M 28mm f/2.8 ASPH - LeicaEAN  4022243116771

Obiettivi Fotografici > Ottiche Leica M
EAN:4022243116771
€ 2.090,16 + Iva
€ 2.550,00 Ivato
Adcom - Leica
Nuovo
Disponibile in 7 gg

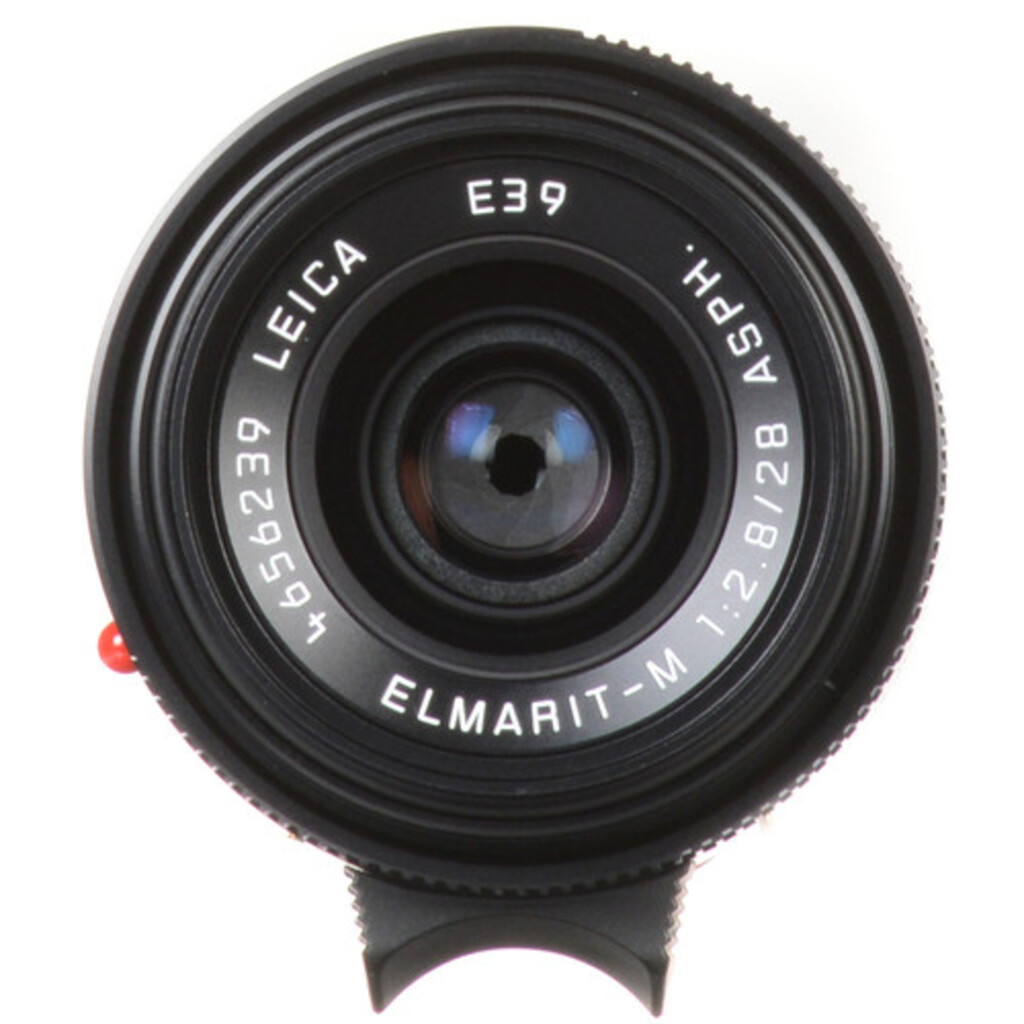

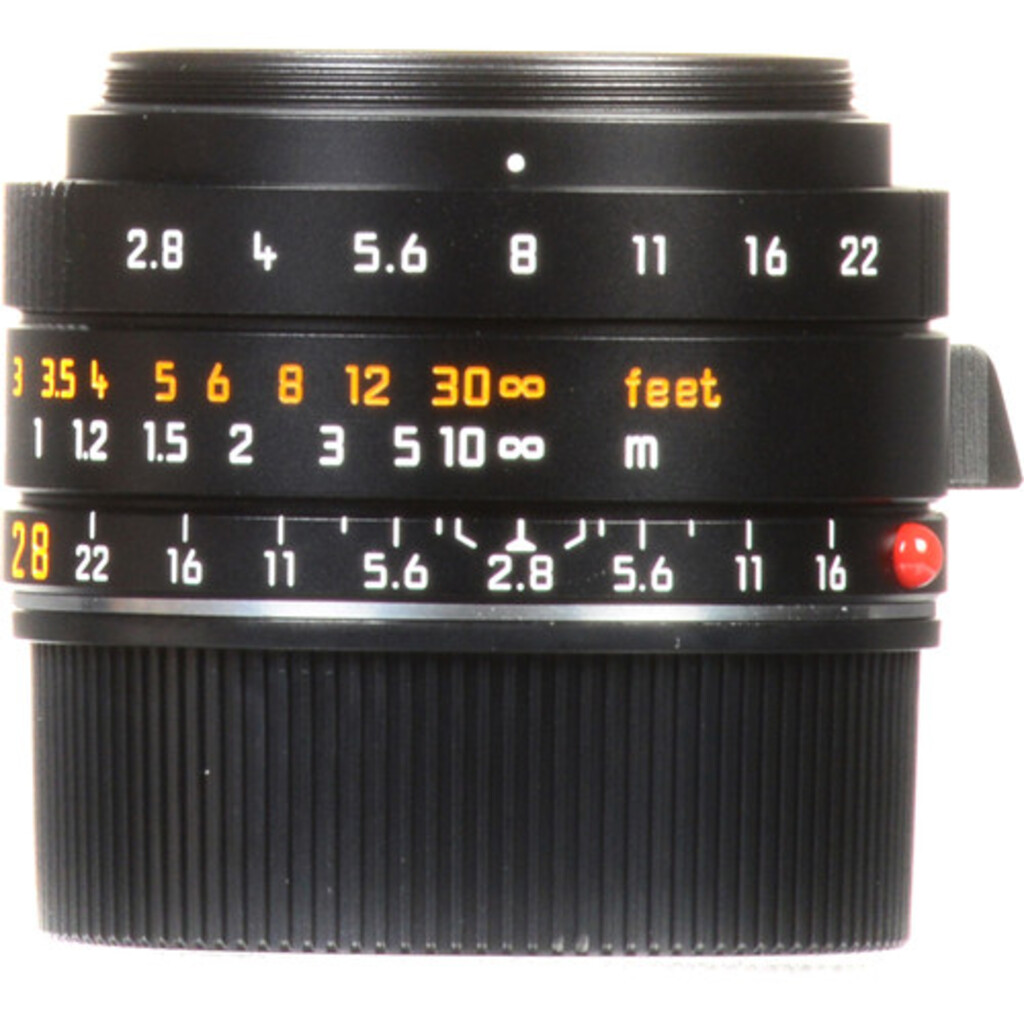

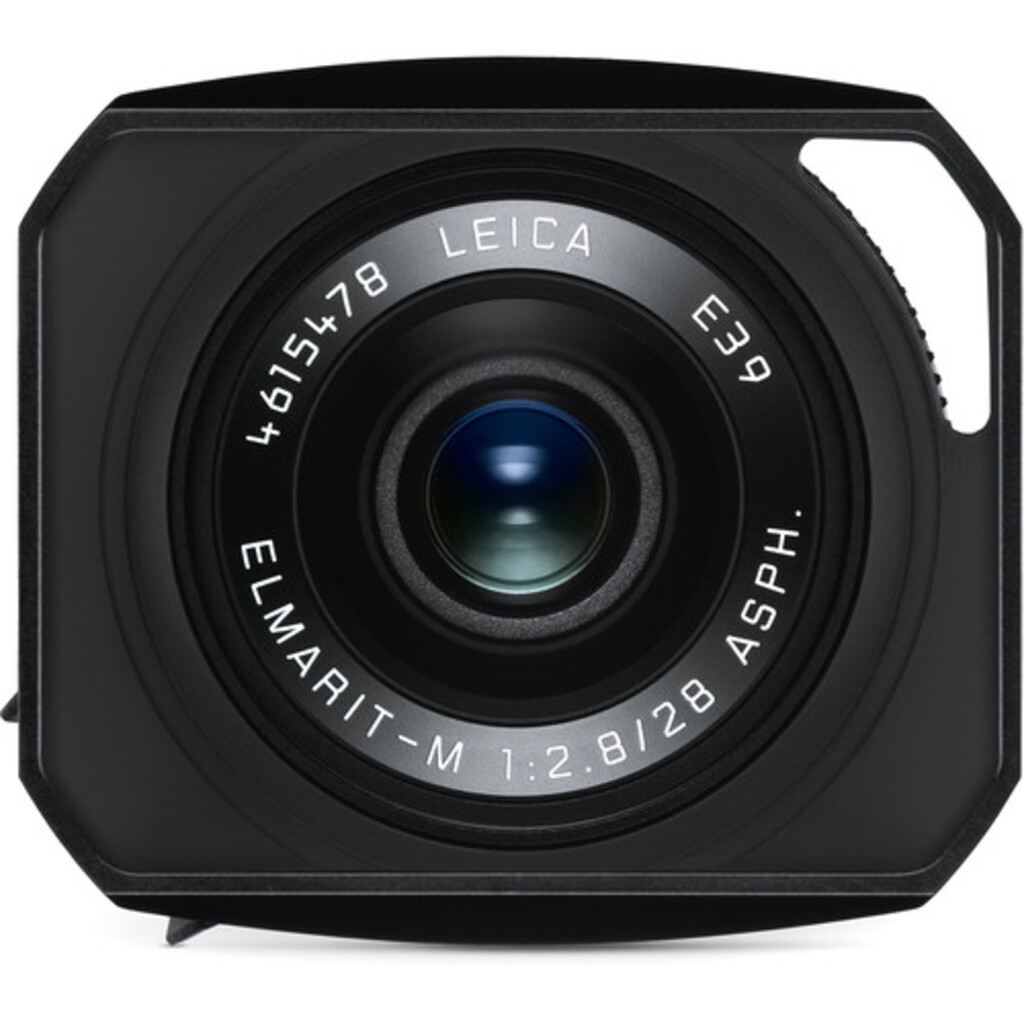

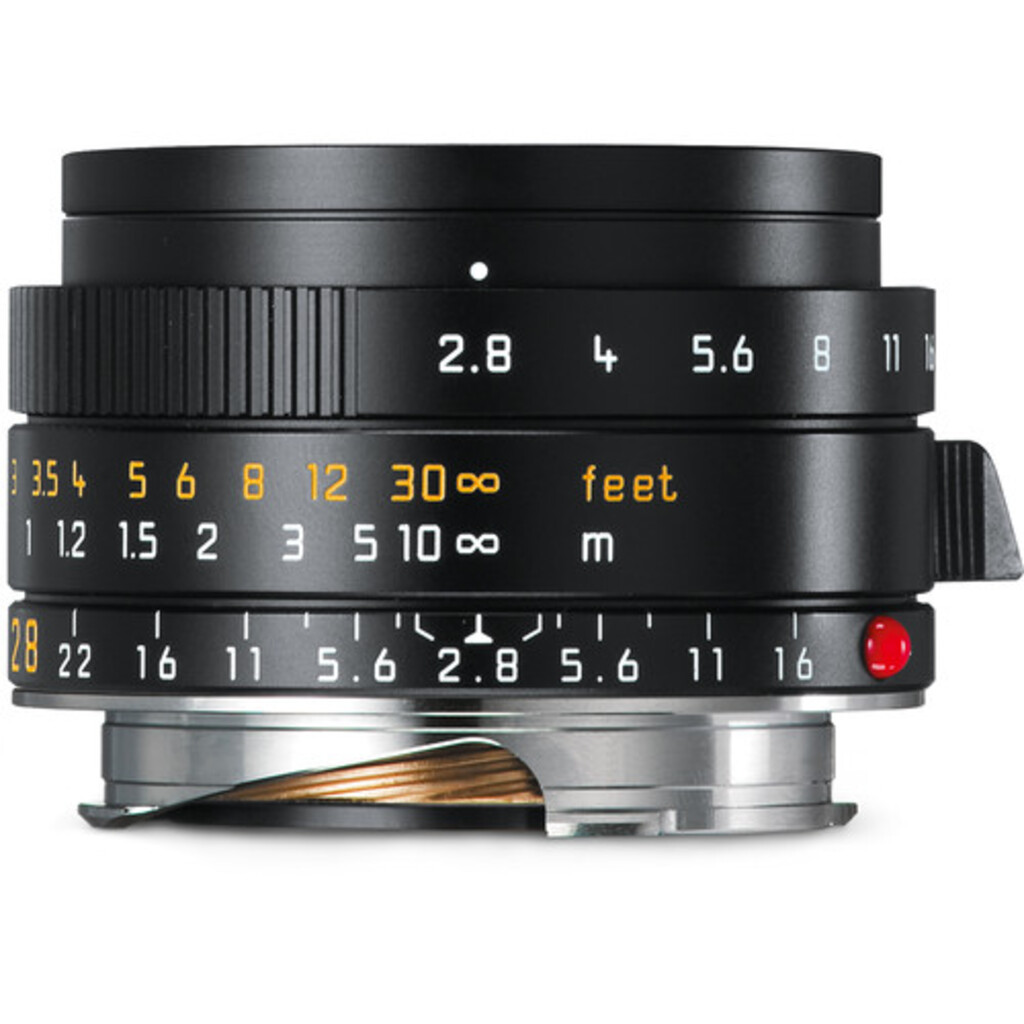

Leica Elmarit-M 28mm f/2.8 ASPH. Lens 11677
Leica M Mount Lens
Aperture Range: f/2.8 to f/22
One Aspherical Element
Manual Focus Design


Characterized by its sleek, unobtrusive profile, the Leica Elmarit-M 28mm f/2.8 ASPH. Lens is a compact optic that is particularly well-suited for street photography applications. Beyond its svelte stature, this wide-angle prime also features an eight-element, six-group optical design that contains one aspherical element to minimize spherical aberrations and distortions for clean, sharp image quality throughout the aperture and focusing ranges. Additionally, for intuitive handling and use, the manual focus design lends precise control while shooting, and its short, just over 1" in length, profile barely protrudes into the viewfinder field of M cameras for a clearer, uncluttered perspective while composing images.

One aspherical element is featured in the optical design to reduce spherical aberrations and distortions for increased sharpness and clarity. This aspherical element also contributes to a compact design that extends just slightly into the viewfinder of M cameras.

Manual focus design provides a minimum focusing distance of 2.3' with a maximum magnification ratio of 1:22.

The front of the lens has 39mm-diameter threads to accept optional filters and the lens is male threaded to accept the included lens hood.
A popular wide-angle lens for the Leica M rangefinder system, the black Summilux-M 35mm f/1.4 ASPH Lens from Leica provides high quality optics for excellent performance in a variety of applications. The aperture range starts at a fast f/1.4 for available light and stops all the way down to f/16 for use in many scenarios, such as landscapes or images requiring great depth-of-field. The optical design also allows this lens to remain compact with 9 elements in 5 groups, of which one has an aspherical surface to assist in control of aberrations.

The lens features Leica's 6-bit coding for sending metadata to digital M cameras, allowing for proper frame lines to be shown as well as proper digital correction of lens aberrations to be done in camera. The 35mm lens can even focus as close as 2.3' in which close up performance is improved through the inclusion of a floating element in the design. The aperture also uses nine blades for smooth out-of-focus areas in your imagery. Additionally, 46mm screw-on filters can be used and a lens hood is included to limit flare.

Performance improves dramatically as lens is stopped down

Maximum reproduction ratio of 1:17.4

Lens construction of 9 elements in 5 groups

Rectangular screw-mount lens hood for limiting flare

Depth-of-field scale located on lens barrel


Performance
Lens Mount Leica M
Focal Length 35.6mm
Aperture Maximum: f/1.4
Minimum: f/16
Format Compatibility Full frame 35mm film and digital image sensors
Angle of View 35mm
Diagonal: 63°
Horizontal: 54°
Vertical: 37°

M8
Diagonal: 50°
Horizontal: 42°
Vertical: 28°
Minimum Focus Distance 2.3' (0.7 m)
Reproduction Ratio 1:17.4
Optical Construction 9 elements / 5 groups
Diaphragm Blades 9
Features
Image Stabilization No
Autofocus No
Coding System 6-bit
Physical
Filter Thread 46mm
Dimensions (Diam. X L) Without Hood: 2.2 x 1.8" (56 x 46 mm)
With Hood: 2.2 x 2.3" (56 x 58 mm)
Weight 11.3 oz (320 g)
Packaging Info
Package Weight 1.35 lb
Box Dimensions (LxWxH) 5.8 x 4.8 x 4.7"
