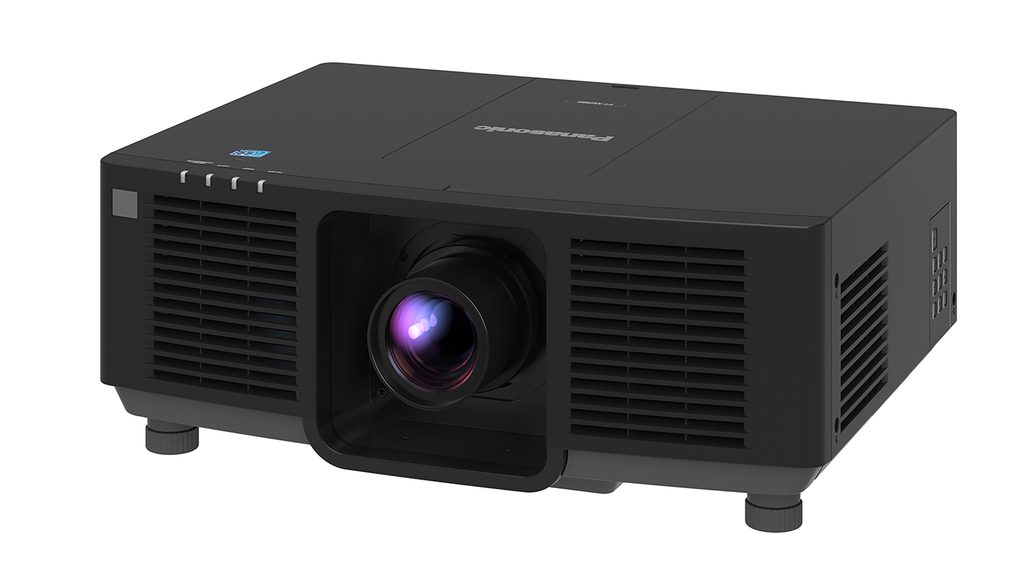

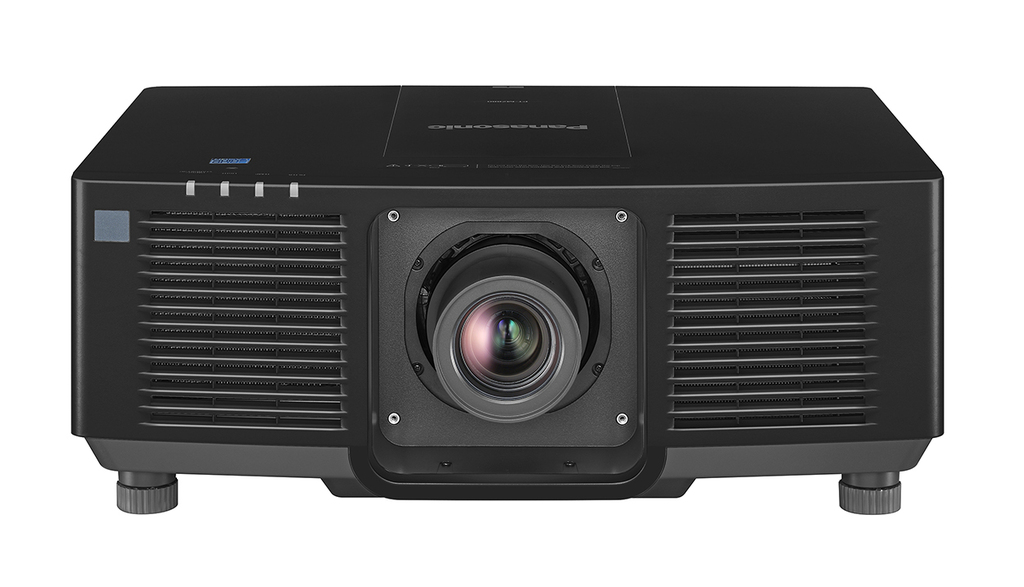

Panasonic proiettore 3 LCD Risoluzione 1920x1200. Tecnologia Digital Link compatibile HD-BaseT Integrata. Shift Ottico verticale e orizzontale Entrate: 2x HDMI, 1x 5BNC RGB, 1x VGA, 1x Composito, 1x RJ45 Digital link, 1x LAN1x Rs232, Installabile in modalità "Portrait" (Verticale). Dotato di funzione di Edge Blending integrata e shift lens, filtro con durata 20.000 ore riutilizzabile. Luminosità 8.200 ANSI lumen - Contrasto 3.000.000:1. Peso 18,6 Kg.
Specification
Panel Size : 19.3 mm (0.76 in) diagonal (16:10 aspect ratio)
Display Method : Transparent LCD panel (x3, R/G/8)
Drive Method: Active matrix
Pixels : 2,304,000 (1920 x 1200) pixels x3
Light Source: Laser diodes
Light output: 1, 2 8,200 lm
Time until light output declines to 50%: 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO)
Resolution : WUXGA (1920 x 1200 pixels)
Contrast Ratio: 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1] or [2]. HDMI? signal input)
Screen Size (Diagonal): 1.02-10.16 m (40-400 in), 1.52-10.16 m (60-400 in) with the ET-ELW22, 2.54-10.16 m (100-400 in) with the ET-ELU20, 16:10 aspect ratio
Center-to-corner zone ratio: *2 85%
Lens: Powered zoom (throw ratio 1.61-2.76:1), powered focus F = 1.7-2.3, f = 26.8-45.5 mm (for supplied lens, optional lenses also available)
Lens shift Vertical (From the origin point of the lens mounter) : ±67 % (powered), ±60 % (with ET-ELW22), ±50 % (with ET-ELU20) (TBD)
Lens shift Horizontal (From the origin point of the lens mounter): ±35 % (powered), ±30 % (with ET-ELW22), ±24 % (with ET-ELU20) (TBD)
Keystone Correction Range : Vertical: ±25 ° (±22 ° with ET-ELW21/ET-ELW22), (±25 ° with ET-ELW20/ET-ELT22/ET-ELT23): (±5 ° with ET-ELU20), Horizontal: ±30 ° (±15 ° with ET-ELW21/ET-ELW22), (±30 ° with ET-ELW20/ET-ELT22/ET-ELT23): (0 ° with ET-ELU20)
Installation : Ceiling/floor, front/rear, free 360-degree installation
Terminals
HDMI? IN : HDMI? x 3 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input4), CEC supported
Computer In : D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Monitor Out: D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
SERIAL/MULTI SYNC In : D-sub 9-pin (female) x 1 for external control/link control (RS-232C compliant)
MULTI SYNC OUT: 0-sub 9-pin (male) x 1 for link control
Remote 1 In: M3 stereo mini-jack x 1 for wired remote control
Remote 2 In : 0-sub 9-pin (female) x 1 for external control (parallel)
Audio In: M3 stereo mini-jack x 1
Audio Ou: t M3 stereo mini-jack x 1
LAN/DIGITAL LINK: RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT"' compliant), 100Base-TX (Compatible with PJLink"' [Class 2]. Art-Net, HDCP 2.3, Deep Color, 4K/60p4?5 signal input)
LAN RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink"' [Class 2], Art-Net)
DC Out : USS Type Ax 1 (for power supply, DC 5 V, 2 A)
Power
Power Supply: AC 100-240 V, 50 Hz/60 Hz
Maximum power consumption: 445 Watt AC 200-240 V (TBD)
General
Cabinet Materials : Molded Plastic
Filter Included (Estimated maintenance time: approx. 20,000 hours)
Operation Noise: 34 dB (NORMAL/ECO), 27 dB (QUIET) (TBD)
Dimensions (W x H x D): 561 x 224 x 439 mm (22 3/32-x 8 13/16-x 17 9/32-) (With legs at shortest position, including lens and protruding parts)
Weight: Approx. 18.6 kg (41.0 lbs) (with supplied lens)
Operating Environment: Operating temperature: 0-45 °c (32-113 °F)8, operating humidity: 10-80 % (no condensation)
Applicable Software : Logo Transfer Software, Multi Monitoring & Control Software, Smart Projector Control for iOS/Android"", Geometry Manager Pro9
