Sony UWP-D21/K33
MFR 4548736106505
EAN 4548736106512

Name: Sony UWP-D21/K33
Brand: Sony
SKU: UWP-D21/K33
Price: 584.38 EUR
Availability: InStock

EAN:4548736106512 · MFR:4548736106505

€ 574,38 + Iva

€ 700,74 Ivato

Paga a rate con

Disponibilità: 1 pz

1 pz Magazzino Milano

PREVENTIVO

ACQUISTA

PRODOTTO NUOVO

Varianti

UWP-D21/K21 € 479,00 + Iva UWP-D21/K42 € 479,00 + Iva

Dettagli Prodotto Open Box

Tipologia Open Box

Funzionalità ottima

Garanzia 12 mesi

Estetica ottima

Istruzioni Si

Imballo originale Si

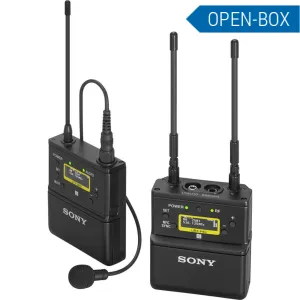

The Sony UWP-D21 is a dependable camera-mount wireless lavalier microphone system that delivers uncompromising audio quality while still being easy to use and fast to set up with no menu diving. It is made with simplicity in mind for DIY cameramen, videographers, vloggers, and journalists working in the field without a crew. The system is packed with professional features including NFC Sync and Auto-Gain functions, which handle time-consuming frequency setup and mic-level adjustments for you, so you're ready to shoot within seconds.

The UWP-D21 offers digital signal processing for pristine audio and analog UHF transmission with true-diversity reception for reliability, even under difficult shooting conditions. Rugged and lightweight, this system includes a bodypack transmitter with an ECM-V1BMP omnidirectional lavalier mic. It also comes with a low-profile camera-mount receiver designed for enhanced mobility with compact camcorders and smaller DSLR/mirrorless cameras.

Sony shooters can take advantage of the SMAD-P5 digital MI Shoe adapter (available separately), which provides a direct, clean digital audio connection to select cameras equipped with a digital Multi Interface Shoe. With the UWP-D21, you can focus on the other critical elements competing for your attention during a shoot and confidently record crisp, clear speech or dialog for projects ranging from documentaries to wedding videos, YouTube content, corporate spots, and hands-free interviews.

The UWP-D21 is backward-compatible with Sony WL-800 and UWP Series systems.

System
Wireless Transmission : Analog UHF
Number of RF Channels : 2772
Included Transmitters 1 x Bodypack
Diversity : True Diversity
RF Frequency Band : 566-630MHz
RF Bandwidth : 72 MHz
Frequency Step Size : 25 kHz
Max Operating Range : 330' / 100.6 m (Typical)
Max Systems per Setup 16
Latency : 0.35 ms
Modulation : FM
Pilot Tone : 32 / 32.382 / 32.768 kHz

Receiver
Form Factor : Camera-Mount
Mounting Options : Shoe-Mount (with Included Hardware)
Antenna : 2 x 1/4 Wave External, Fixed (Top-Mount)
Number of Audio Channels : 1
Audio I/O
1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
Gain Range -12 to +12 dB (3 dB Steps)
Audio Output Level : -60 dBV
Frequency Response : 23 Hz to 18 kHz
USB/Lightning Connectivity : 1 x USB Type-C (Bus Power)
Power Requirements : Battery, Bus Power (USB)
Battery Type : 2 x AA (Not Included)
Approx. Battery Life : 6 Hours (Alkaline)
Display & Indicators : 1 x OLED (AF Level, Battery Status, Channel, Frequency, Menu Navigation, Mute, Peak, RF Level)
Housing : Metal
Operating Temperature : 32 to 122°F / 0 to 50°C
Storage Temperature : -4 to 131°F / -20 to 55°C
Dimensions : 2.7 x 3.2 x 0.9" / 68.0 x 82.0 x 23.8 mm (without Antennas)
Weight : 6.2 oz / 176.0 g (with Batteries)

Transmitter
Form Factor : Bodypack
RF Output Power : 5 / 30 mW
Audio I/O : 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
Muting : Mute Switch
Audio Input Level : +60 dBV (Mic Level) - +4 dBu (Line Level)
Gain Range : 0 to 21 dB (3 dB Steps)
Frequency Response : 23 Hz to 18 kHz
Sync Method : NFC
Antenna : 1 x 1/4 Wave External, Fixed
Power Requirements Battery, Bus Power (USB)
Battery Type : 2 x AA (Not Included)
Approx. Battery Life : 8 Hours (Alkaline)
USB/Lightning Connectivity : 1 x USB Type-C (Bus Power, Charging)
Display & Indicators : 1 x OLED (Audio Level, Battery Status, Peak, RF Output Power)
Housing : Metal
Operating Temperature : 32 to 122°F / 0 to 50°C
Storage Temperature : -4 to 131°F / -20 to 55°C
Dimensions 2.5 x 3.2 x 0.8" / 63.0 x 82.0 x 20.0 mm (without Antennas)
Weight 5.3 oz / 149.0 g (without Batteries)

Microphone
Form Factor : Lavalier
Sound Field : Mono
Transducer : Electret Condenser
Polar Pattern : Omnidirectional
Frequency Range : 40 Hz to 20 kHz
Sensitivity : -43 dB at 1 kHz
Output Connectors : 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
Cable Length : 3.9' / 1.19 m
Operating Temperature : 32 to 122°F / 0 to 50°C
Storage Temperature : -4 to 131°F / -20 to 55°C
Length : 0.77" / 19.5 mm
Diameter : 0.27" / 6.8 mm
Weight : 0.57 oz / 16.2 g
