NR5101-EU01V1F - ZyxelEAN  4718937613083

5G NR interface

3GPP Release 15 standard-compliant
Supports both NSA and SA modes
Supports frequencies: n1/n3/n5/n7/n8/n20/n28/n41/n77/n78/n38/n40
DL 4×4 MIMO: n1/n3/n7/n38/n40/n41/n77/n78
Data rates:
5G SA: DL 4.2 Gbps, UL 900 Mbps*
5G NSA: DL 5 Gbps, UL 650 Mbps*
Supports DL modulation QPSK, 16-QAM, 64-QAM and 256-QAM
Supports UL modulation QPSK, 16-QAM, 64-QAM and 256-QAM
Output power:
Class 2 (26 dBm) for 5G NR n41/n77/n78
Class 3 (23 dBm) for 5G NR n1/n3/n5/n7/n8/n20/n28/n38/n40

4G LTE interface

3GPP UE Category 20 standard-compliant
Supports frequencies:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32/B38/B39
LTE-TDD: B40/B41/B42
DL 4×4 MIMO:
LTE-FDD: B1/B3/B7
LTE-TDD: B38/B40/B41/B42
Peak data rates:
Max. DL 2 Gbps/UL 200 Mbps*
4 internal antennas
Supports DL modulation QPSK, 16-QAM, 64-QAM and 256-QAM
Supports UL modulation QPSK, 16-QAM, 64-QAM and 256-QAM
Output power:
Class 2 (26 dBm) for LTE B38/B40/B41/B42
Class 3 (23 dBm) for FDD/TDD LTE bands

UMTS/EDGE/GPRS/GSM Air interface

Standard-compliant: DC-HSDPA/HSPA+ compliant
DC-HSDPA/HSPA+ standards-compliant
Supports frequencies: B1/3/5/8
Peak data rates:
DC-HSPA+ downlink data rates up to 42 Mbps*
HSUPA uplink data rates up to 5.76 Mbps*
UMTS data rates up to 384 Kbps*

WiFi Air Interface

Wireless standard: IEEE 802.11 b/g/n/a/ac/ax
Wireless speeds:
Link rates up to 573 Mbps* for 2.4 GHz
Link rates up to 1.2 Gbps* for 5 GHz
Internal WiFi antenna:
Dual-band & concurrent 2x2 + 2x2
WiFi antenna gain:
~3 dBi for 2.4 GHz
~5 dBi for 5 GHz

5G/4G/3G antennas

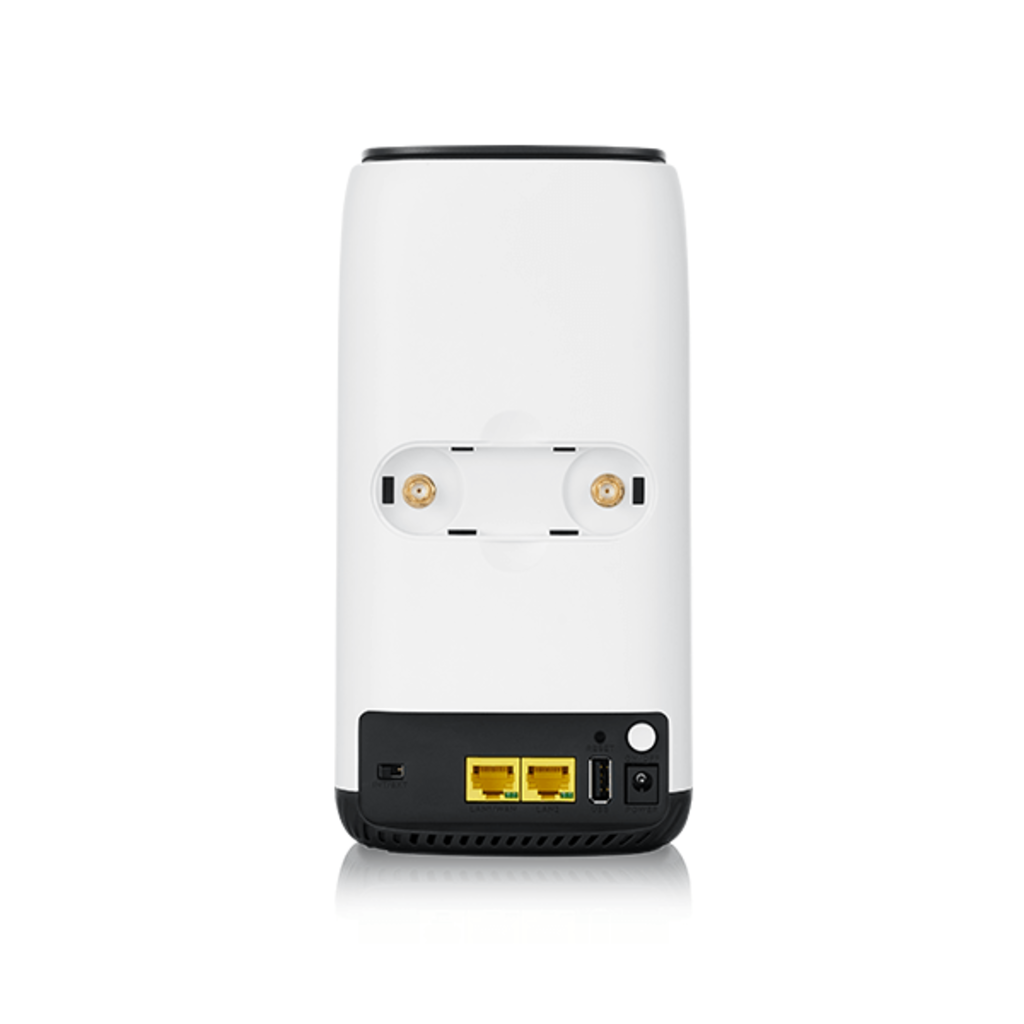

2 SMA connectors for external antennas
6 embedded omni-directional antennas
Ultra-high band:
Up to 4 dBi peak gain
High band and middle band:
Up to 4 dBi peak gain
Low band:
Up to 2 dBi peak gain
