Video Assist 5" 3G - BlackmagicEAN  9338716006407

Display
Panel Type : LCD
Display Size : 5.0" / 12.7 cm
Screen Resolution : 1920 x 1080
Aspect Ratio : 16:9
Viewing Angle Horizontal: 135°
Touchscreen : Yes
Maximum Brightness : 300 cd/m2
Pixels Per Inch (ppi) : 441 ppi
Color Gamut : 100% Rec. 709
Real-Time LUT Monitoring : SDR
Image Controls : Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

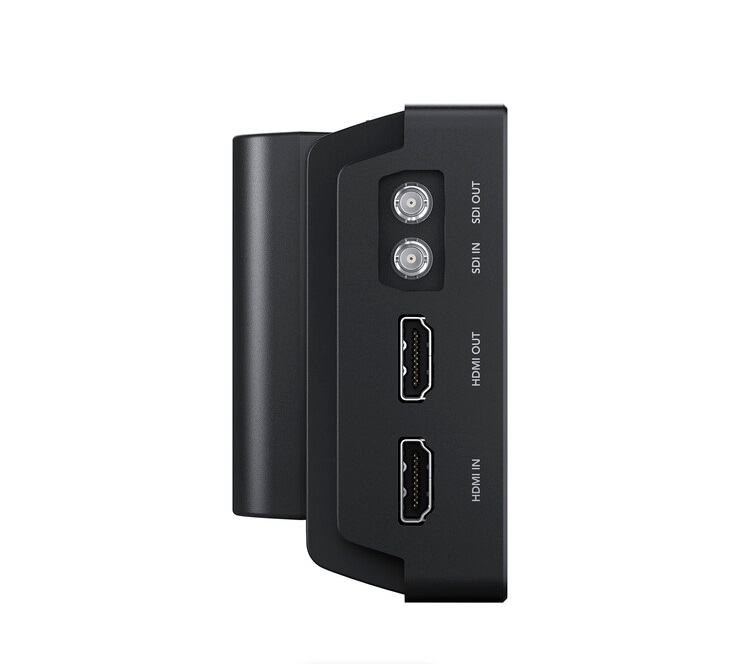

I/O Video
1 x HDMI Type A Input
1 x Micro BNC (3G-SDI/HD-SDI/SD-SDI) Input
1 x HDMI Type A Output
1 x Micro BNC (3G-SDI/HD-SDI/SD-SDI) Output

HDCP Support : Yes
Embedded Audio : HDMI: 8-Channel - SDI: 16-Channel
Audio : 1 x 3.5 mm Headphone Output
Built-In Speaker : 1
Power : 1 x Barrel Input
Other I/O : 1 x USB Type-C
Card Slot : 1 x SD
Wi-Fi : None

Format Support
Video Format : SDI (10-Bit 4:2:2 YUV)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94
HDMI (10-Bit)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94

Recording
Pulldown Conversion : None
Camera Trigger : None
Pre-Roll Record : None
Encoding Formats : Up to 1920 x 1080
ProRes 422 HQ, 422, LT, Proxy 10-Bit 4:2:2 at up to 60 fps
DNxHD 220x, 145, 45, 220x MXF, 145 MXF, 45 MXF 10-Bit 4:2:2 at up to 60 fps
Maximum Audio Tracks : 16
Recording Media : 1 x SDXC (UHS-I)
Metadata Tagging : Yes
Timecode Support : SMPTE 12M via Embedded SDI / Embedded HDMI
Phantom Power : None

Power
DC Input Power : 12 VDC
Battery Type : 2 x L-Series

Mounting
Mounting 6 x 1/4"-20 Female

Environmental
Operating Humidity : 0 to 90%
Operating Temperature : 32 to 104°F / 0 to 40°C
Storage Temperature : -4 to 113°F / -20 to 45°C

General
Material of Construction : Aluminum
Dimensions (W x H x D) 5.83 x 3.54 x 1.44" / 14.81 x 8.99 x 3.66 cm
Weight : 14.46 oz / 410 g
Warranty Length : Limited 1-Year Warranty

Packaging Info
Package Weight : 1.96 lb
Box Dimensions : (LxWxH) 7.8 x 7.5 x 4.1"
