Dual-Channel Simultaneous Charger with Power Supply (V-Mount)

2 x V-Mount Battery Bays
4-Pin XLR Output Power Base Mode
14.5V, 6.7A 4-Pin XLR Power Output
LIFE PLUS & Recovery Charge Modes
Off-Voltage Current Protection
LED Status Indicators
Worldwide Power Input

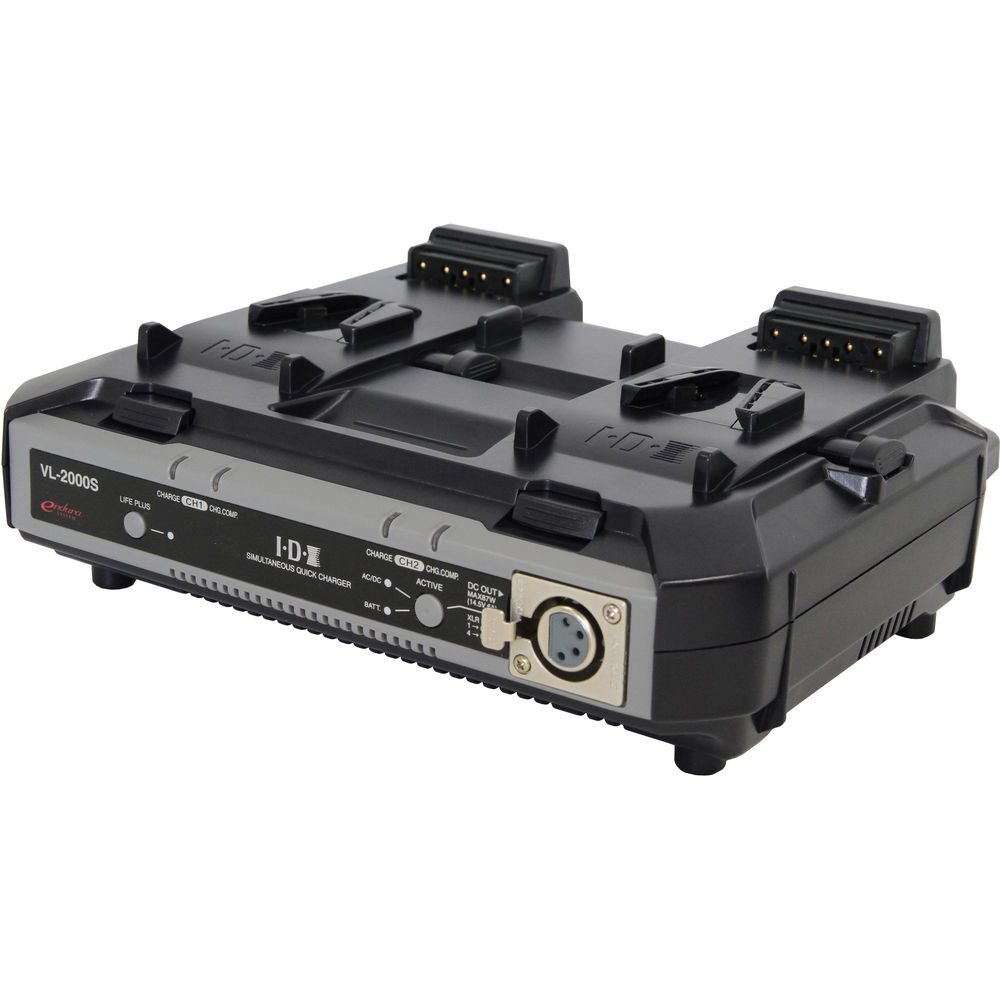

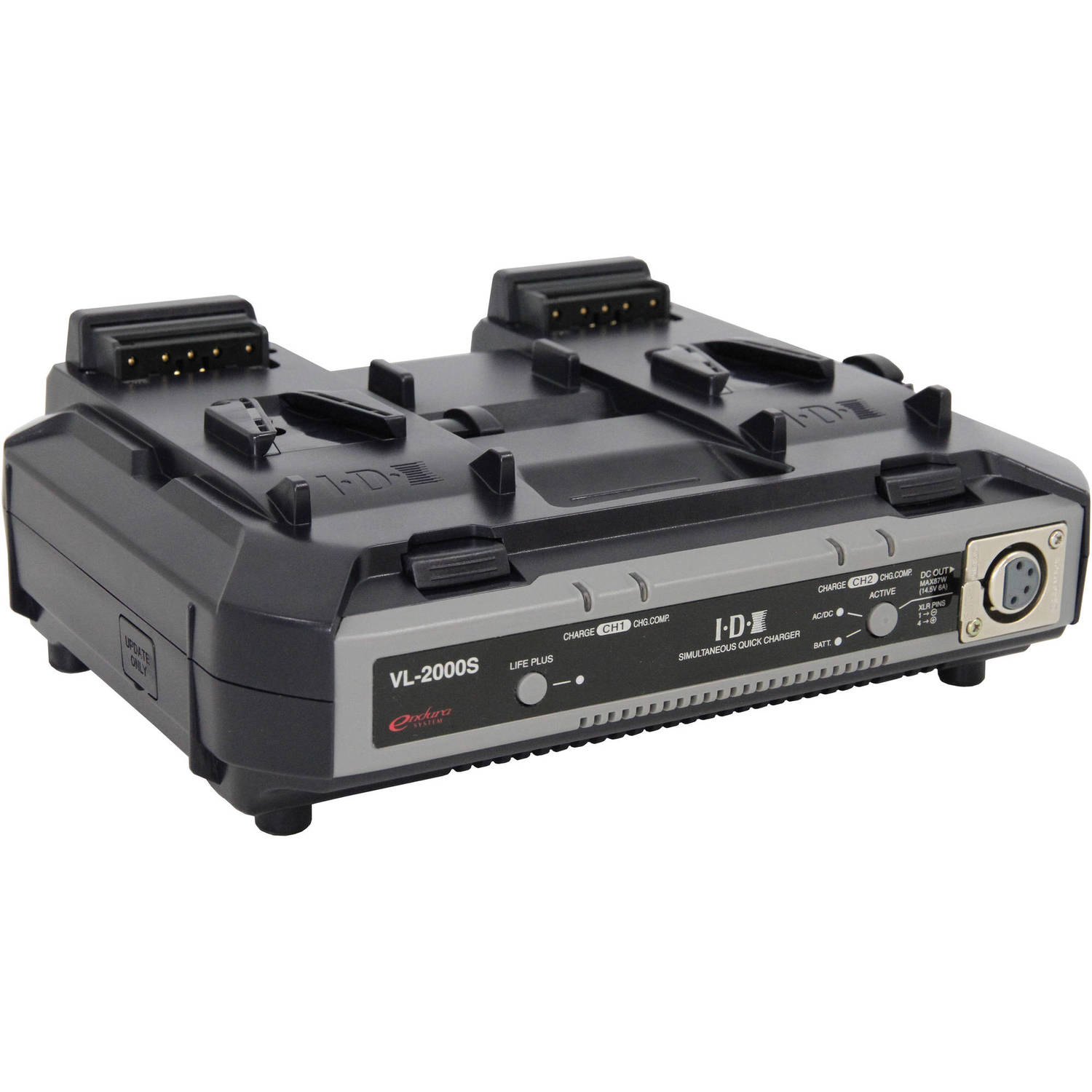

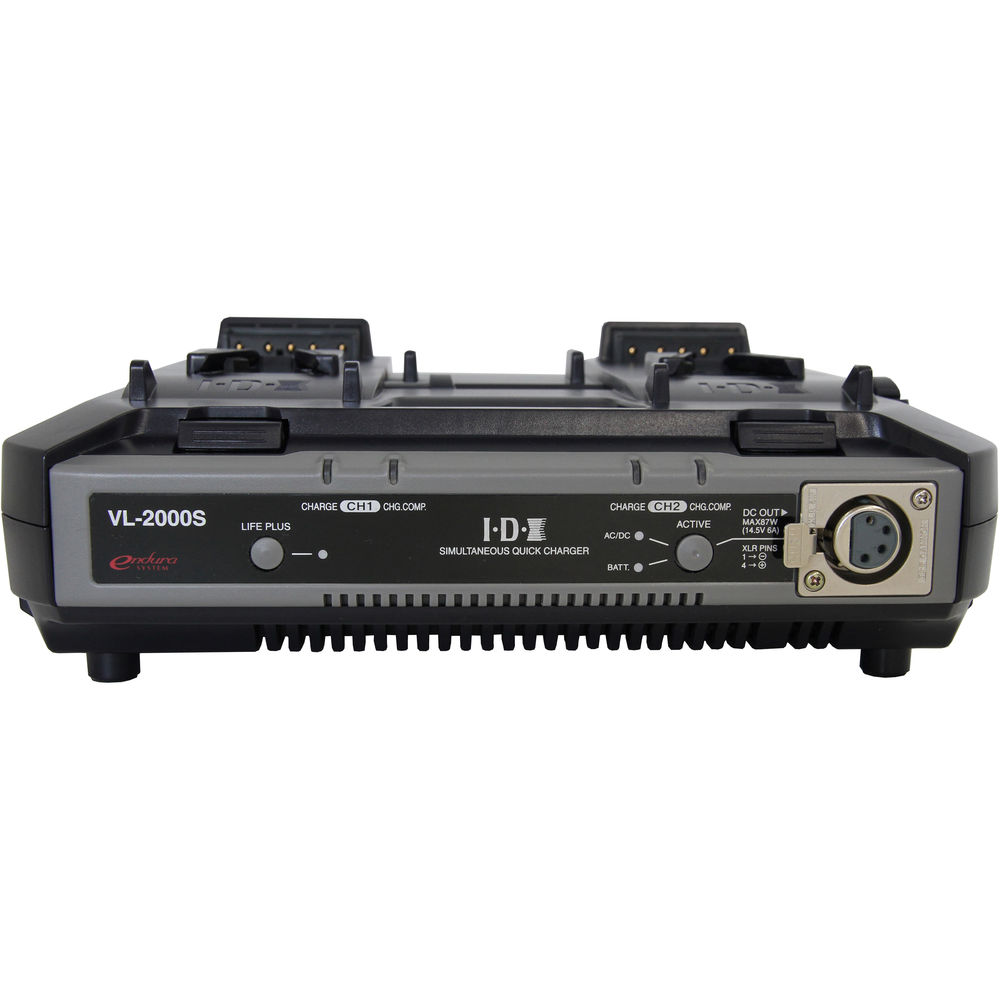

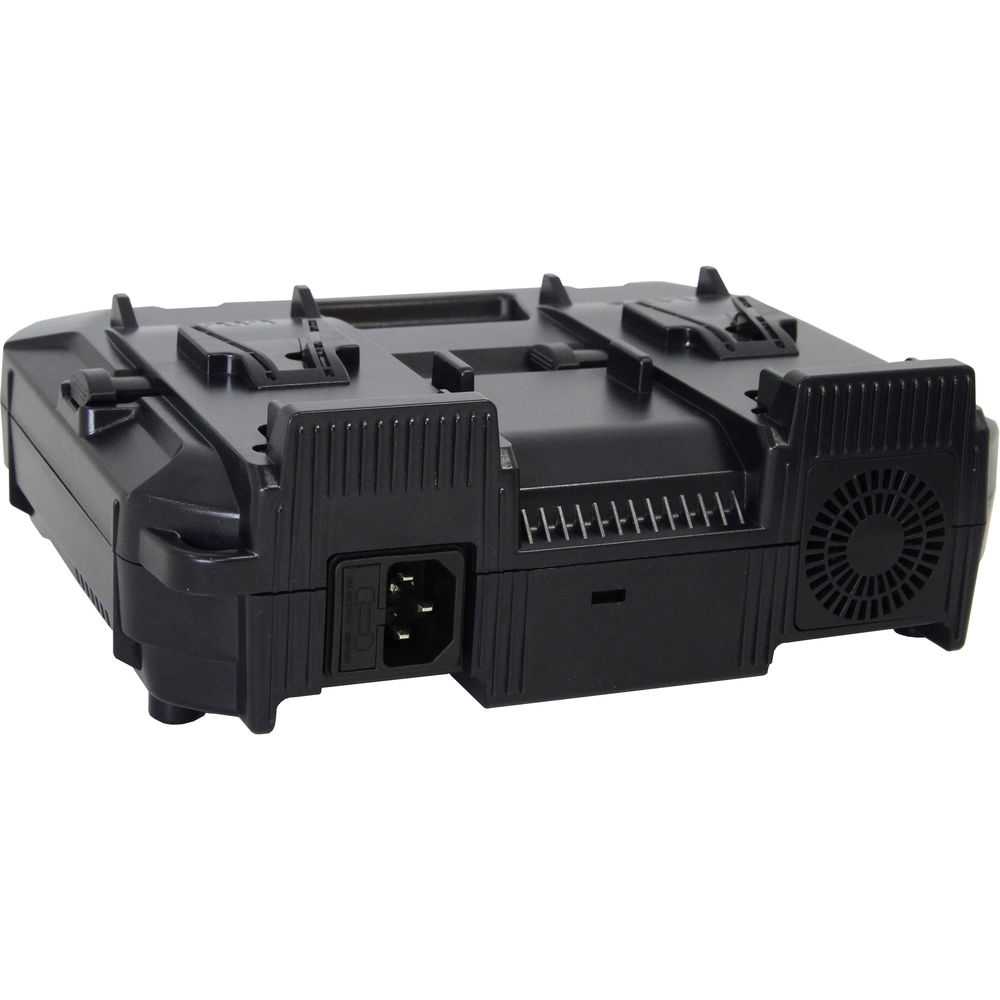

The VL-2000S Quick Charger from IDX is a simultaneous 2-channel V-Mount battery charger featuring a 14.5V, 6.7A 4-pin XLR output. It features a Power Base mode that uses mounted batteries to power equipment via the XLR output port. A LIFE PLUS mode uses advanced technology to extend battery life up to 20% and a Recovery Charge mode safely charges low-voltage batteries.

Power Base Mode
Power cameras and components using the 14.5V, 6.7A 4-pin XLR output port

IDX Battery Charging Times
Model 1 x Battery 2 x Batteries
E-HL9 130 minutes 145 minutes
CUE-D75 140 minutes 140 minutes
E-HL10DS 145 minutes 160 minutes
CUE-D95 145 minutes 160 minutes
DUO-C95 145 minutes 160 minutes
ELITE 185 minutes 225 minutes
CUE-D150 195 minutes 235 minutes
DUO-150 195 minutes 235 minutes
DUO-C190 250 minutes 290 minutes

Charger Compatibility
V-Mount
Charger Power Source
AC Power (Cable Included)
Charger Power I/O
1x IEC Female Input
? 100 to 240 VAC, 50 / 60 Hz
1x XLR 4-Pin Output
? 14.5 VDC at 6 A (87 W)
Charger Included Adapter / Cable
1x USA Type-A/B Plug to IEC Male Cable

Battery Charger
Charger Compatibility
V-Mount
Number of Battery Bays
2
Charging Modes
Dynamic Power Management, Simultaneous
Charger Power Source
AC Power (Cable Included)
Charger Power I/O
1x IEC Female Input
? 100 to 240 VAC, 50 / 60 Hz
1x XLR 4-Pin Output
? 14.5 VDC at 6 A (87 W)
Charger Included Adapter / Cable
1x USA Type-A/B Plug to IEC Male Cable
Battery Output Voltage
16.4 to 16.8 VDC at 6 A
Indicator
LED
Features
Quick Charge
Dimensions
9.1 x 7.2 x 3.2" / 23.1 x 18.2 x 8.2 cm
Weight
2.73 lb / 1.24 kg
Environmental
Operating Conditions
32 to 72°F / 0 to 40°C at 20 to 90% Humidity
