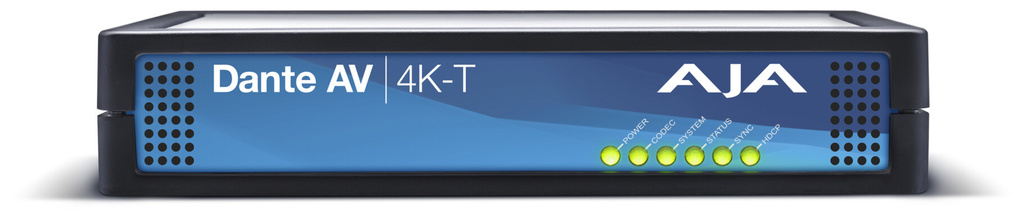

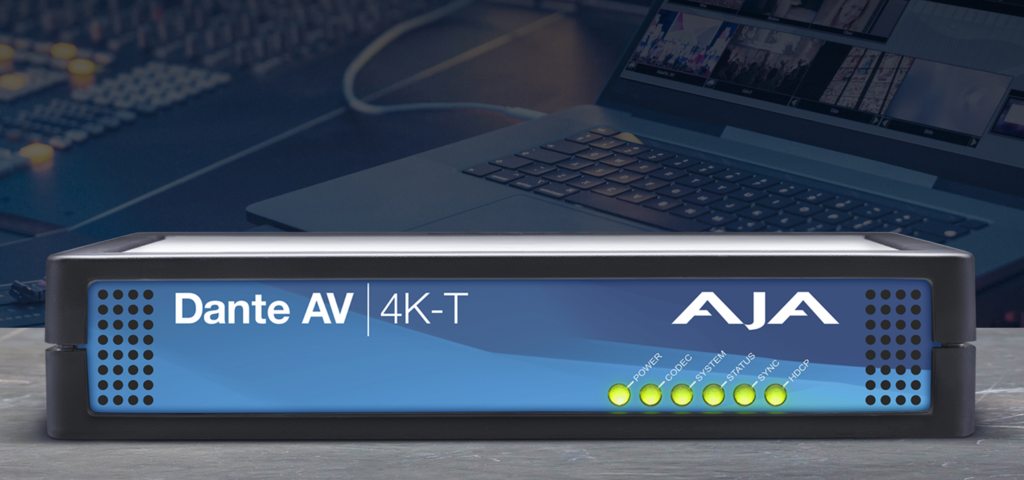

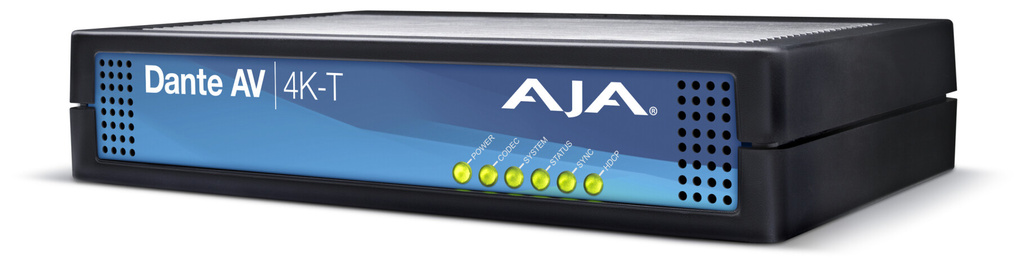

DANTE-AV-4K-T - AJA

Video Formats:
- (4K) 4096x2160p
- (UltraHD) 3840x2160p
- (2K) 2048x1080p
- (HD) 1920x1080p
- (HD) 1280x720p

VESA Formats:
- (WUXGA) 1920x1200
- (UXGA) 1600x1200
- (SXGA) 1280x1024
- (XGA) 1024x768
*Note: VESA Formats are always RGB 4:4:4 60 8-bit

Discovery, Registration, and Control:
Dante Controller Software from Audinate (Windows or Mac)
Dante Ecosystem Friendly: Compatible with existing Dante-enabled products

Media Transport Interfaces:
- Network Interface: Standard 1 GigE Ethernet
- Audio Flow: Audio Flow x 8 Flows / 8-channels per Flow (unicast or multicast)
- Video Flow: Video Flow x 1 Flow / 1-channel per Flow (unicast or multicast)
- Timestamp: Hardware timestamping, supporting sample accurate playback

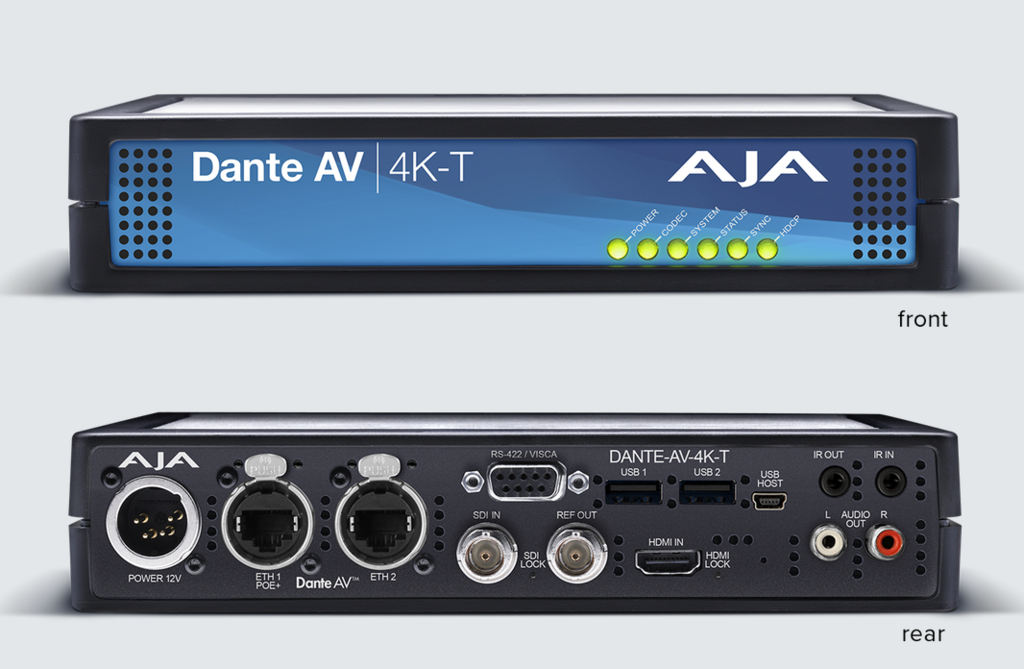

Video Input Digital (4K-T):
° 1x 12G-SDI BNC, SMPTE 292 (1.5Gb/s), 424, 425-A(3Gb/s), 2081, 2082, 352 SDI Metadata Supported:
- YCbCr 4:2:2
- 10-bit
- Two Sample Interleave (2SI) 4K/UltraHD source mapping
° 1x 12G SDI:
- (4K) 4096x2160p 50, 59.94, 60
- (UltraHD) 3840x2160p 50, 59.94, 60
° 1x 6G SDI :
- (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
- (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
° 1x 3G-SDI (Level A):
- (2K) 2048x1080p 50, 59.94, 60
- (HD) 1920x1080p 50, 59.94, 60
° 1x 1.5G-SDI:
- (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
- (HD) 1280x720p 50, 59.94, 60
° 1x HDMI Type A connector, HDMI v2.0
- YCbCr 4:4:4, 4:2:2
- RGB 4:4:4, SMPTE, or Full RGB
- 8, 10, 12-bit (4K/UltraHD 4:4:4 limited to 8-bit)
- (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1280x720p 50, 59.94, 60

- (WUXGA) 1920x1200
- (UXGA) 1600x1200
- (SXGA) 1280x1024
- (XGA) 1024x768
*Note: VESA Formats are always RGB 4:4:4 60 8-bit

Audio Input Digital (4K-T) & Audio Output Digital (4K-R):
- SDI embedded audio, 24-bit, 8-channel, 48 kHz PCM24
- HDMI embedded audio, 24-bit, 8-channel, 48 kHz PCM24

Audio Output Analog:
- 2x RCA analog audio
- Levels at -10 dBu (nominal)

IP Video Input (4K-R) & IP Video Output (4K-T):
- Dante AV Ultra
- Single video channel

IP Audio Input (4K-R) & IP Audio Output (4K-T):
- Dante Audio
- Up to 8-channel audio, 24-bit per channel, 48 kHz PCM24
- High quality, low jitter with onboard clock generator for audio
- SRC Conversion Range: 1:8 to 8:1
- ASRC Latency: 80 samples (1.6ms 48 kHz)

Size (W x D x H): 8.74" x 7.09" x 1.65" (222.0 x 180.09 x 41.91 mm)
Weight: 3.1 lbs (1.5 kg)
Power: 30 Watts Maximum, 12V DC IN has priority over Ethernet 1 POE+. Ethernet 1 POE+ will become active a fraction of a second after 12V DC IN is disconnected.
Environment:
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
